Woodpecker / DTE Dental Air Polisher AP-A
Woodpecker / DTE Dental Air Polisher AP-A
Woodpecker / DTE Dental Air Polisher AP-A
Woodpecker / DTE Dental Air Polisher AP-A
Woodpecker / DTE Dental Air Polisher AP-A
Woodpecker / DTE Dental Air Polisher AP-A
Woodpecker / DTE Dental Air Polisher AP-A
Click to open expanded view

Woodpecker / DTE Dental Air Polisher AP-A

SKU: AIR-POL-APA
Price
$3,380
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications

Power adapter input: 100-240V~ 50/60Hz 1.1A Model: USE48- 300130SPA3

Main unit input: 30V 1.3A

Main unit insurance: T1.6AL 250V

Air inlet pressure: 5.5bar ~ 7.5bar(0.55MPa ~ 0.75MPa)

Main unit weight: 2.0kg

Main unit size: length×width×height
270mm×170mm×90mm

Packing List

1. Main unit x 1
2. Power adapter x 1
3. Foot Pedal x 1
4. Power cable x 1
5. Air polishing handpieces x 2
• Subgingival Air Polisher Handpiece (AP-2) x 1
• Supragingival Air Polisher Handpiece (AP-1) x 1
6. Powder tanks x 2
• Subgingival Powder Tank x 1
• Supragingival Powder Tank x 1
7. Water bottles x 2
• 1400 ml Water Bottle x 1
• 650ml Conical Water Bottle x 1
8. Sterilize box x 1
9. Braided tube x 1
10. Needles x 2
11. Nozzle wrench x 1
12. Filter x 1
13. Quick connector x 1
14. Prophylaxis powder x 2
15. O-rings x 8
16. Rubber sealing element x 2
17. Tee quick connector x 1
18. Female connector x 1
19. Male connector x 1
20. 6 PU tube x 1
21. PU tubes (3.2x1.6mm) x 3
22. Subgingival Nozzles x 10
23. Instruction manual x 1
24. Qualified certification x 1
25. Packing list x 1

Warranty

Period validity:

Main Unit: 1 Year / Handpiece: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and
structure.

The following are beyond our warranty:

- The damage caused by disobeying the operation instruction or lack of the needed conditions.

- The damage caused by unsuitable operation or disassembly without authorization.

- The damage on product that caused by users’ unexpected drop or impact to product.

- The damage caused by unadvisable transportation or preservation.

- There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Share this product

Share E-mail

Woodpecker / DTE Dental Air Polisher AP-A

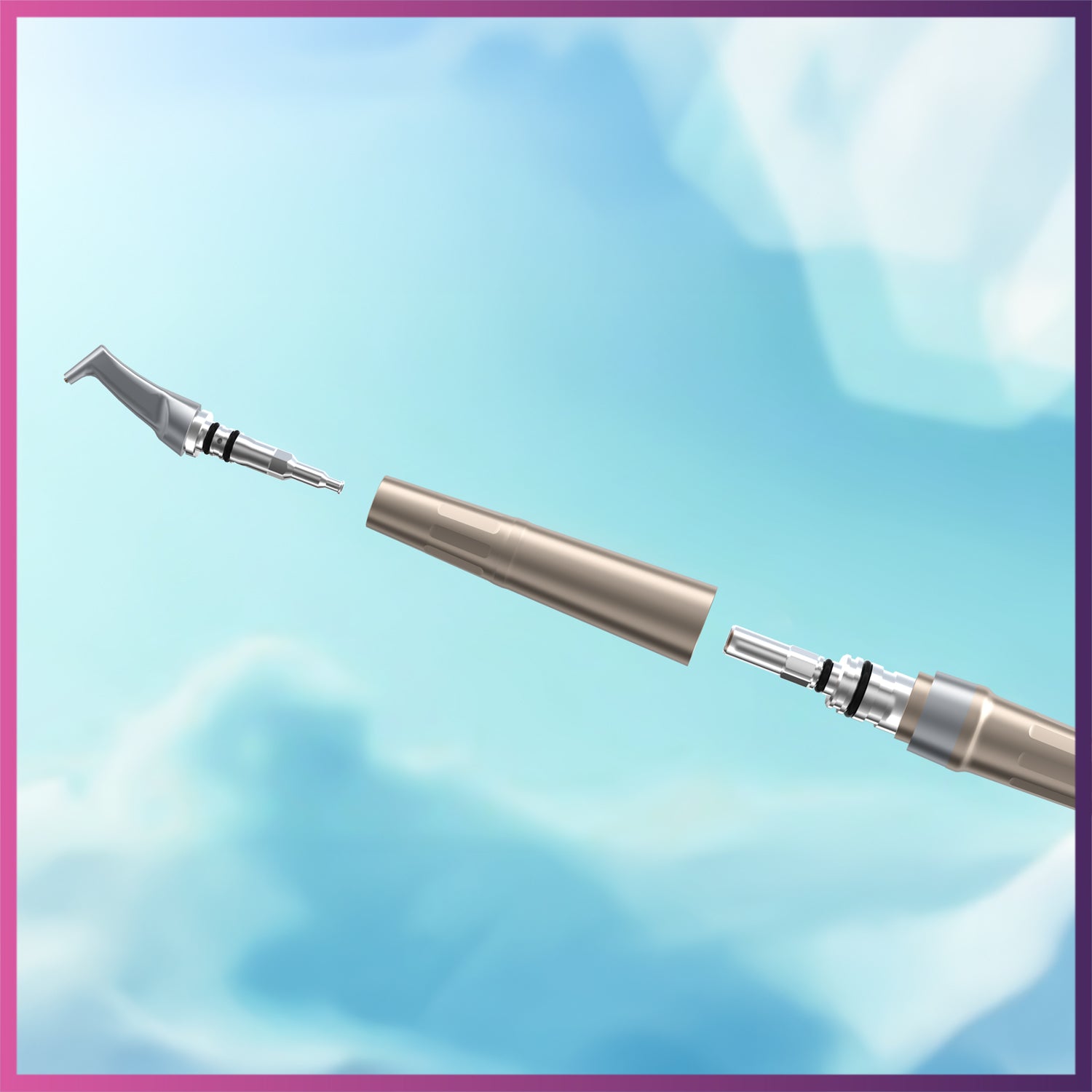

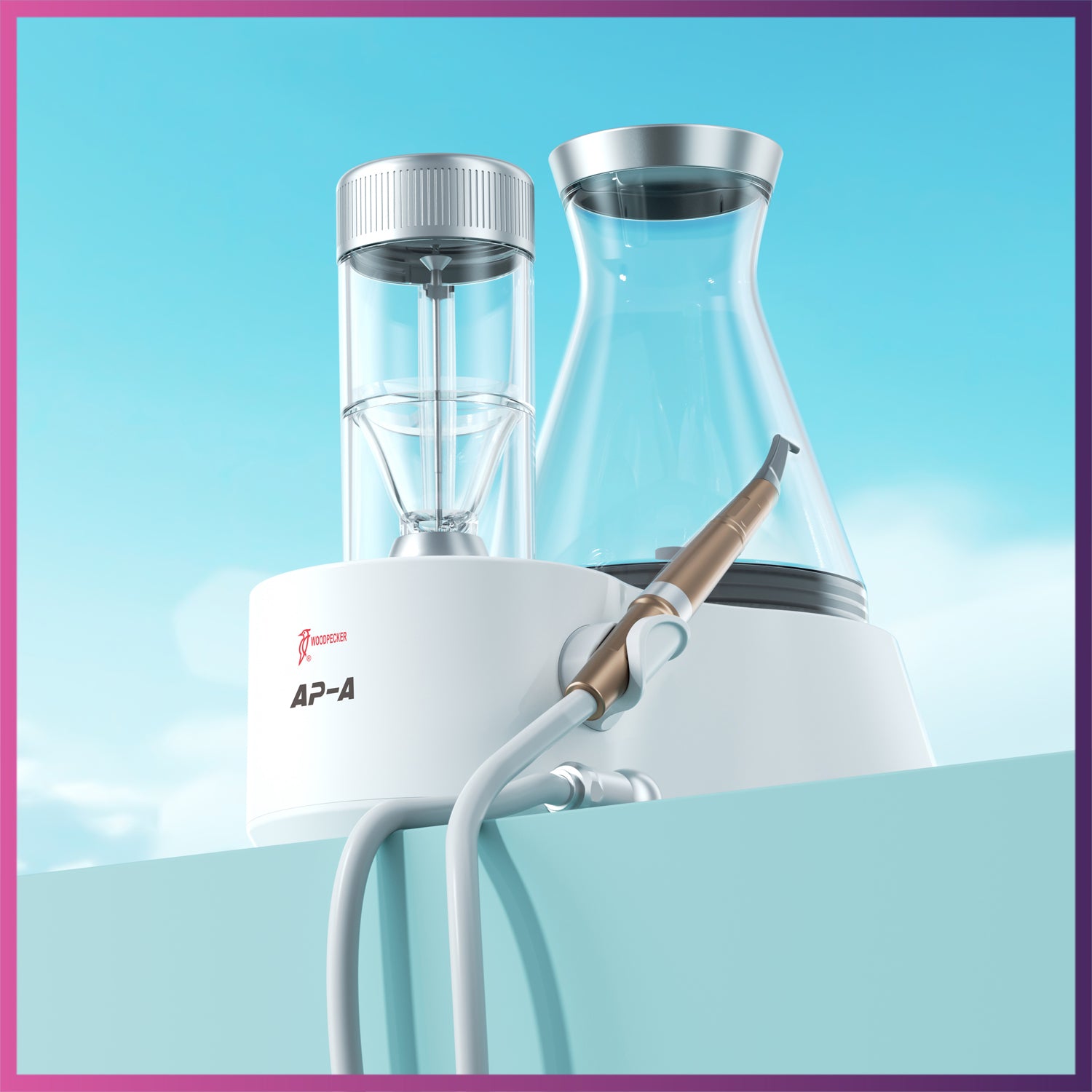

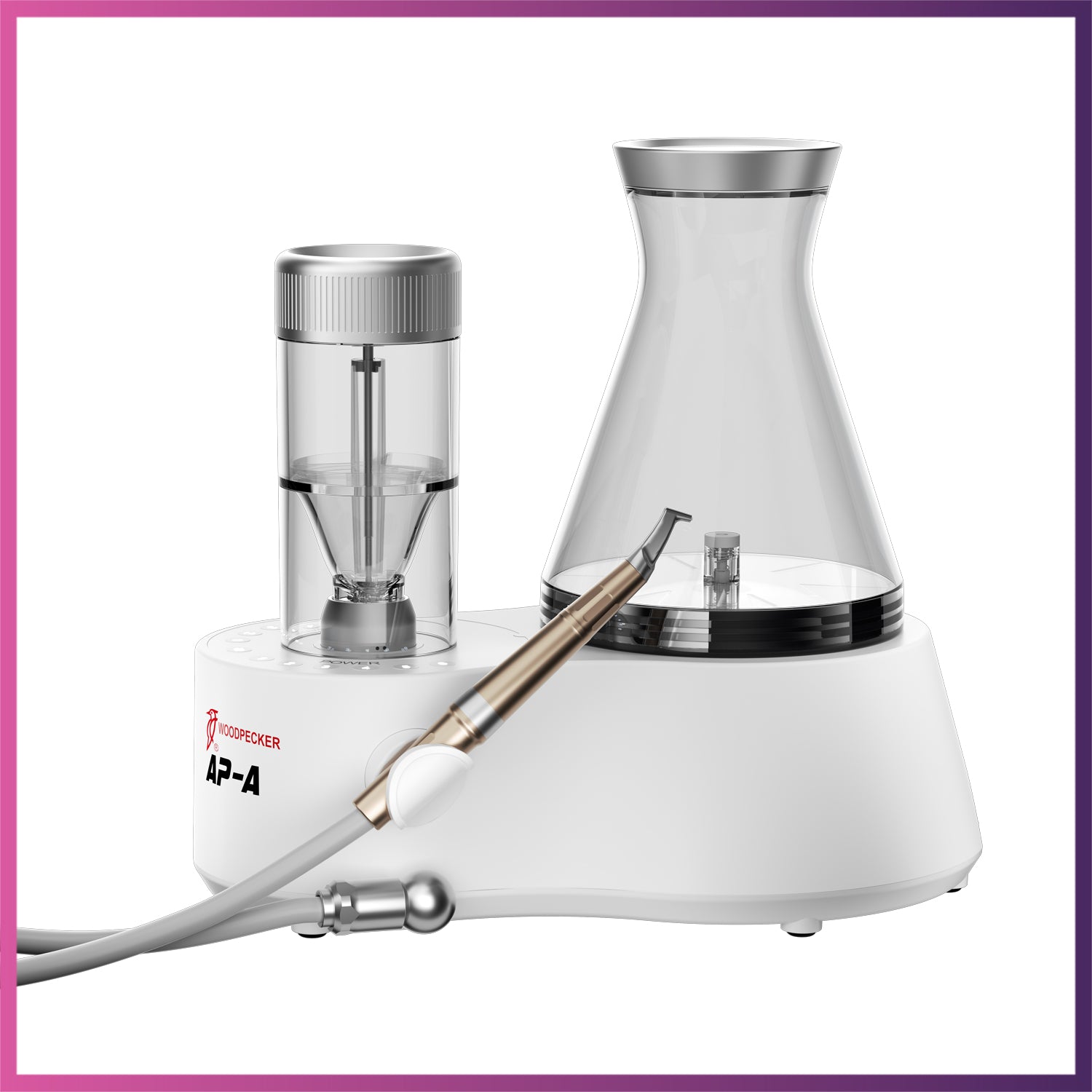

The Woodpecker AP-A Dental Air Polisher is designed for efficient and effective air polishing in dental practices. Utilizing compressed air, it delivers a combination of prophylaxis powder and water to remove plaque, pigment, and other soft debris from tooth surfaces. Its innovative design features detachable three-part handpieces that minimize powder clogging and simplify cleaning.

The AP-A includes a smartly designed powder tank that reduces fluid pressure loss and a specially shaped nozzle for precise powder output, ensuring accurate air polishing.

Key Features

  • Dual Handpieces: Comes with 1 x AP-2 Subgingival Handpiece and 1 x AP-1 Supragingival Handpiece for versatile applications.

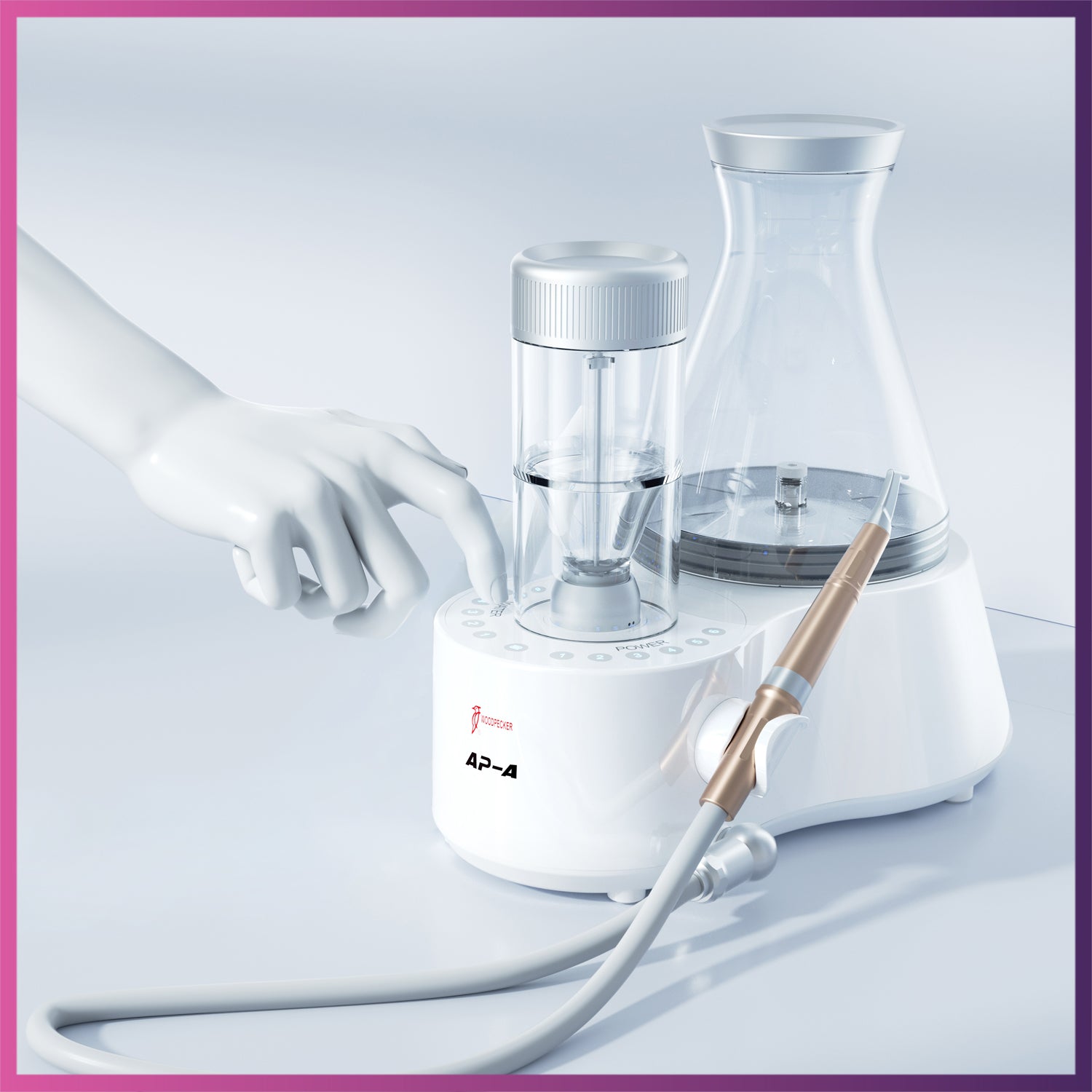

  • User-Friendly Touch Control: Easy operation for efficient use.

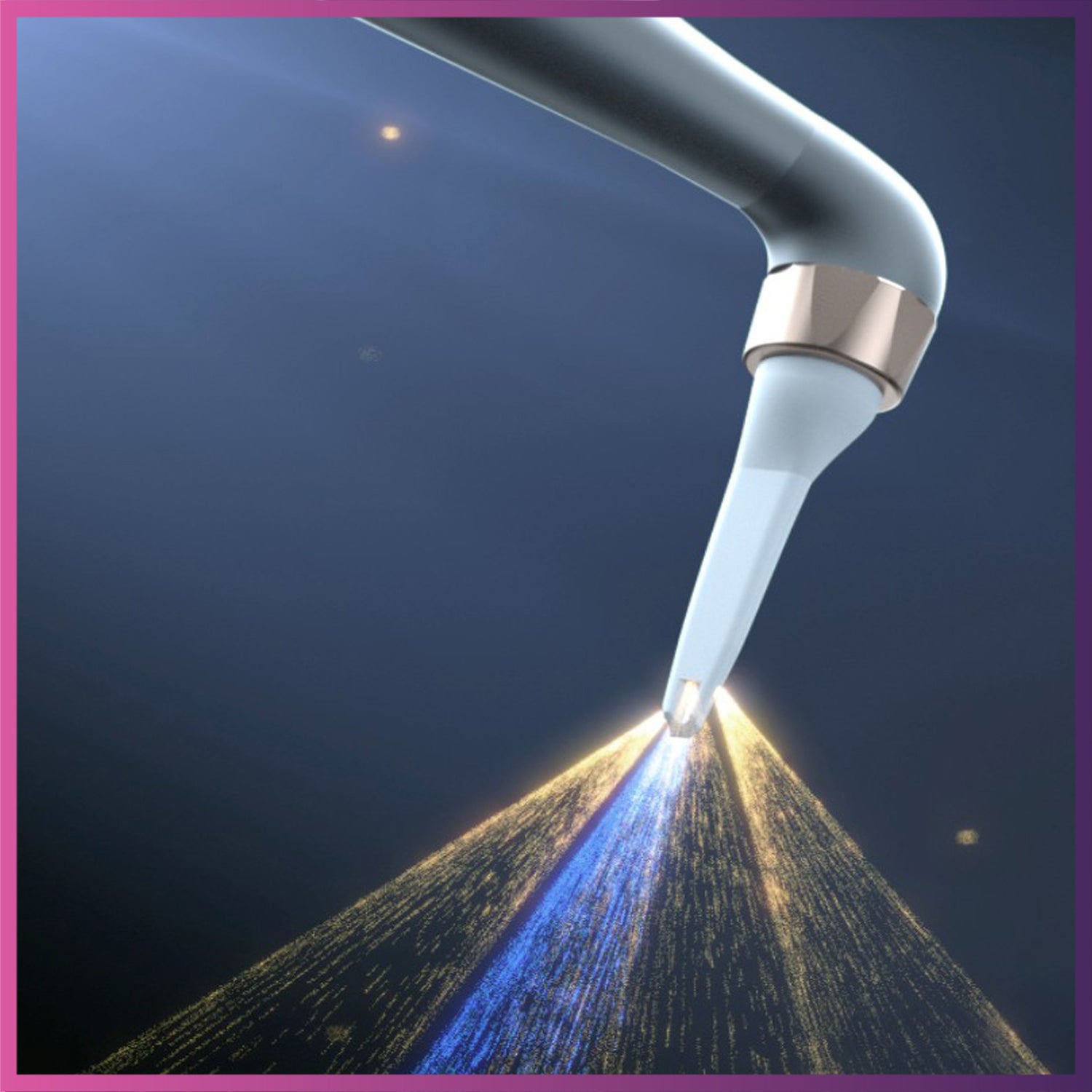

  • Concentrated Output: Small-caliber nozzle provides focused powder delivery.
  • Portable Design: Convenient for various dental settings.

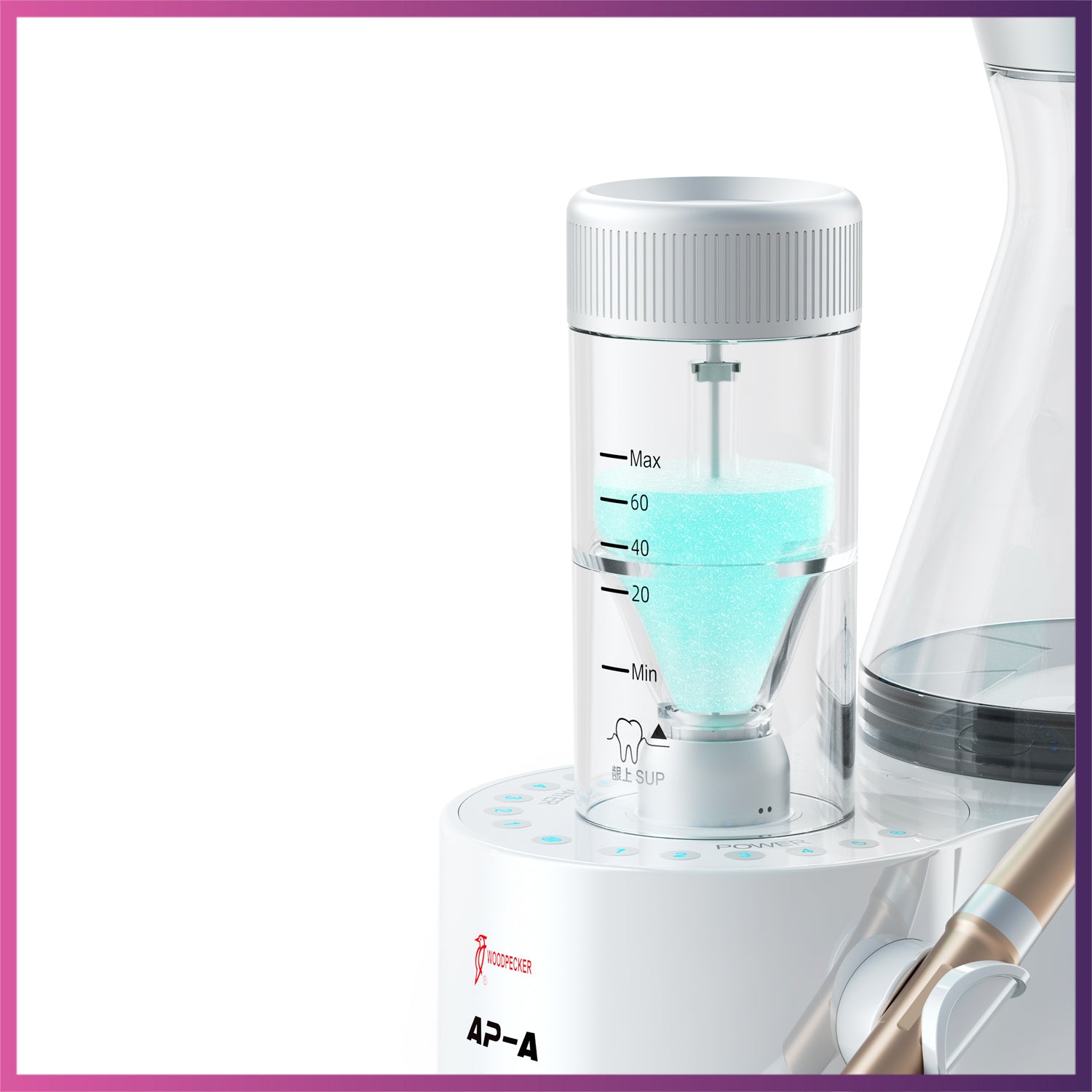

  • Transparent Powder Tank: Funnel-shaped for stable powder output, allowing easy monitoring of levels.
  • 360° Rotating Nozzle: Enhances accessibility during procedures.
  • Autoclavable Handpiece: Removable and sterilizable at 134°C and 0.22 MPa pressure for hygiene.
  • Ergonomic Design: Reduces hand fatigue during prolonged use.

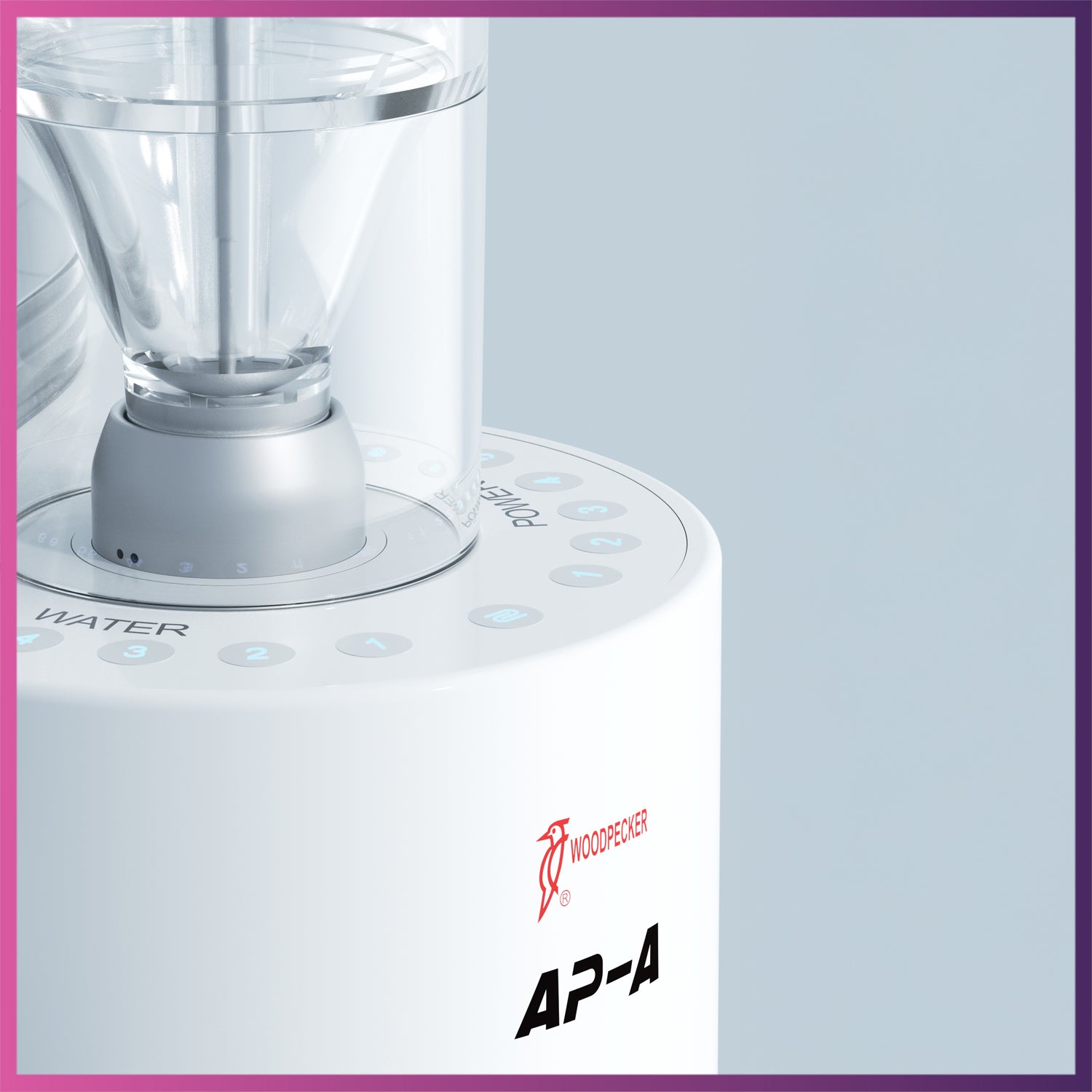

  • Customizable Water Output & Power: Tailored settings for each patient’s needs.
  • Compatible with Multiple Powders: Suitable for Sodium Bicarbonate, Glycine, Calcium Carbonate, and Aluminum Hydroxide.

Intended Use

The Woodpecker AP-A is specifically designed to remove dental plaque and pigments while maintaining implants, making it an essential tool for dental professionals.

Contraindications

  • Not recommended for patients with hemophilia, heart disease, pregnant women, or children.
  • Caution is advised for patients with respiratory conditions such as asthma or chronic bronchitis.

Woodpecker / DTE AP-A air polisher combines advanced technology with user-friendly features, ensuring optimal performance in dental hygiene and treatment procedures.

Installation Disclaimer:

SoniDent is not responsible for product installation. Most devices are easy to install with common parts included, but some setups may require specific connectors or technical assistance due to dental chair variations. While we don't provide installation services, we’re here to answer your questions and share our knowledge to help you through the process.





Here are some videos for your viewing. Enjoy!

Introduction to AP-A

AP-A Maintenance Demo

AP-A Blockage Analysis and Maintenance Procedure

Powder Tube Replacement at main unit bottom

AP-A User Manual

1. What is the Woodpecker / DTE Dental
Air Polisher AP-A used for?

The AP-A Dental Air Polisher is designed to
remove dental plaque, stains, and other soft debris from tooth surfaces. It can also be used for implant maintenance.

2. Can I adjust the water and powder
flow?

Yes, the AP-A allows you to adjust both the
water and powder flow to customize the air-polishing experience according to your needs.

3. Is the handpiece sterilizable?

Yes, the handpiece can be detached,
sterilized at 134°C under 0.22MPa pressure, and reassembled easily.

4. What should I avoid when using the
AP-A Dental Air Polisher?

Patients with hemophilia, respiratory
diseases like asthma or chronic bronchitis, and those with heart conditions or pregnancy should avoid or be cautious when using this device.

5. How do I clean and maintain the air
polisher?

After every use, clean the handpiece by blowing residual powder with a three-way syringe.

For powder tank maintenance, always empty the powder tank after use and clean it with a three-way syringe.

Perform daily purging of the system using the "purge" button on the main unit before and after use.

6. What should I do if the air polisher
is not functioning properly?

Common troubleshooting steps include checking
for blocked handpieces or powder tanks and ensuring air and water connections
are secure. If issues persist, contact your distributor or the manufacturer for further assistance.

7. What type of cleaning agent should be
used for the AP-A handpiece?

Use a cleaning agent compatible with the
handpiece, such as pure water, distilled water, deionized water, or a multi-enzyme solution. Ensure the water temperature does not exceed 45°C.

8. How should the handpiece be
disinfected?

Disinfection must be performed within 2 hours
after cleaning. Automated disinfection is preferred, and if manual disinfection is used, place the handpiece in disinfectant (e.g., 75% medical alcohol or 2% glutaraldehyde solution), then rinse with pure or distilled water and dry using compressed air.

9. Can the air polisher be sterilized?

Yes, the AP-A should be sterilized using steam sterilization methods, particularly a fractional pre-vacuum procedure with a maximum temperature of 134°C for up to 20 minutes.

10. What should I do if the handpiece
becomes blocked?

If the handpiece is blocked, you can use a
needle to clear the blockage. Ensure you perform regular maintenance to prevent such issues.
