Woodpecker / DTE Ai Ray Pro- X-Ray Machine

SKU: XRA-AIR
Price
$3,736.59
Taxes and shipping calculated at checkout

Please be aware this is pre order

The products will be shipped to you once they become available
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa

Share this product

Share E-mail
Specification

Primary technical parameters

1. Power adapter input: 100-240V~ 50/60Hz 1.5A

2. Internal power supply: DC 10.8V

3. Types of radiation: X-ray

4. Electric power:

·        Maximum power: 0.21kw(70kV,3mA, 0.1s)

·        Nominal electric power: 0.21kw(70kV, 3mA, 0.1s)

5. Tube voltage: tube voltage output is fixed at 70kV, error ±10%

6. Tube current: tube current output is fixed at 3mA, error ±20%

7. Loading time: the exposure loading time adjustment range
is 0.04s~1s, the grade is adjustable, and the grade is selected according to Primary technical parameters

1. Power adapter input: 100-240V~ 50/60Hz 1.5A

2. Internal power supply: DC 10.8V

3. Types of radiation: X-ray

4. Electric power:

·        Maximum power: 0.21kw(70kV,3mA, 0.1s)

·        Nominal electric power:0.21kw(70kV, 3mA, 0.1s)

5. Tube voltage: tube voltage output is fixed at 70kV, error ±10%

6. Tube current: tube current output is fixed at 3mA, error ±20%

7. Loading time: the exposure loading time adjustment range is 0.04s~1s, the grade is adjustable, and the grade is selected according to the R10 numerical system; with deviation ± 10%+1ms)

8. X-ray tube

a) X-ray tube model: D-045

b) Focal spot: 0.4mm

c) Target angle: 12.5°

d) Total filtration: 1.5mmAl/70 kV

e) Additional filtration: 0.5mmAl/70 kV

9. Distance from focus to skin: 20~23cm

10. Output radiation field: Φ6.0cm±0.1cm

Product specifications

Dimension: 114mm×363.8mm×245.6mm

Weight: 2.4KG

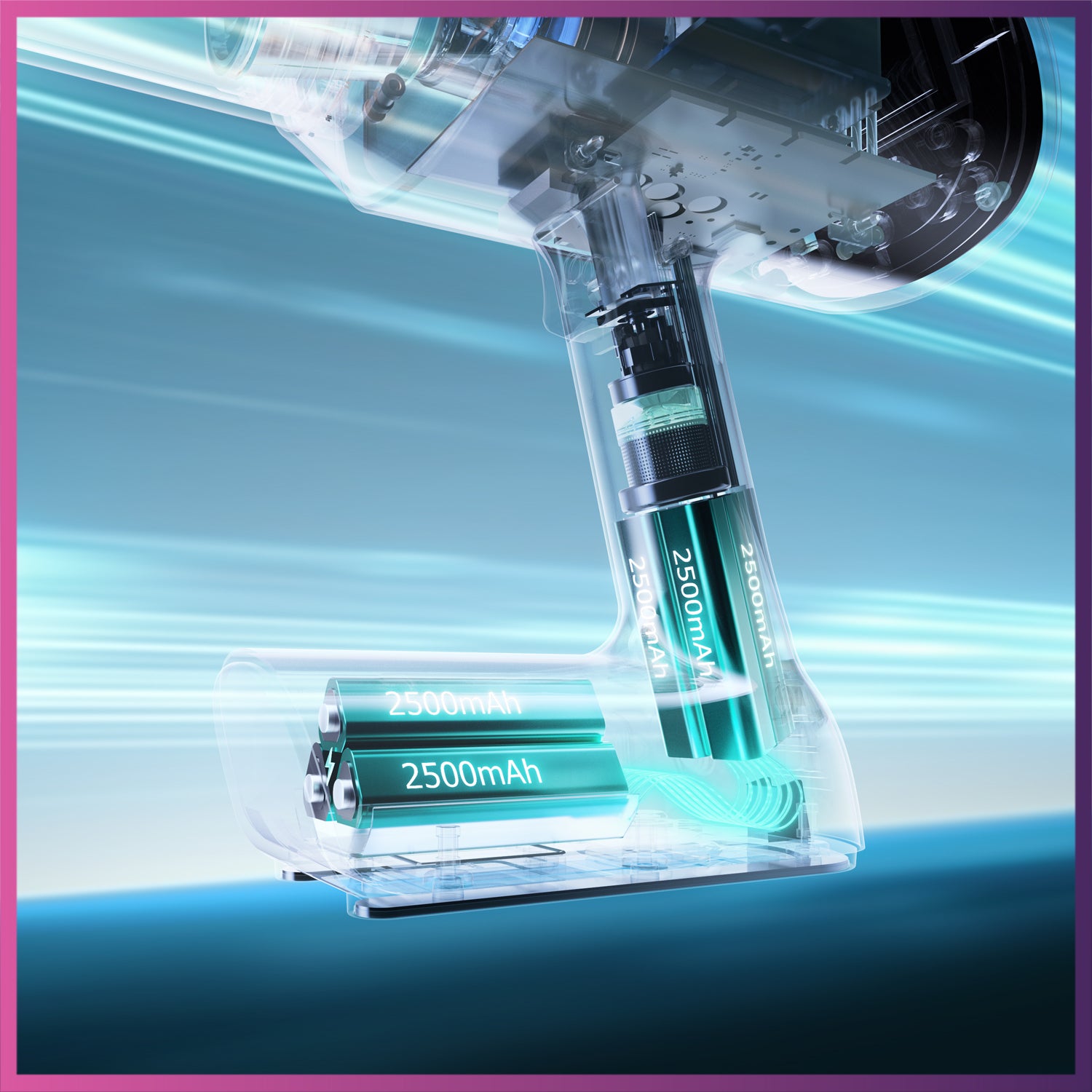

Battery :10.8V 2500mAh ×3×2

Exit field sized: Φ6.0cm±0.1cm

Reference LOADING conditions: 70kV, 3mA, 1s, loading interval 1s/60s, 59 exposures per hour.

Radiation output stated :the variation coefficient under the function less than 5%.the R10 numerical system; with deviation ±(10%+1ms)

8. X-ray tube

a) X-ray tube model: D-045

b) Focal spot: 0.4mm

c) Target angle: 12.5°

d) Total filtration: 1.5mmAl/70 kV

e) Additional filtration: 0.5mmAl/70 kV

9. Distance from focus to skin: 20~23cm

10. Output radiation field: Φ6.0cm±0.1cm

Product specifications

Dimension: 114mm×363.8mm×245.6mm

Weight: 2.4KG

Battery :10.8V 2500mAh ×3×2

Exit field sized: Φ6.0cm±0.1cm

Reference LOADING conditions: 70kV, 3mA, 1s, loading interval 1s/60s, 59 exposures per hour.

Radiation output stated: the variation coefficient under the function less than 5%.

Packing List

01. Main unit x1
02. Power adapter x1
03. Power Cord x1
04. Lanyard (Hand strap) x1
05. Connection cable of exposure hand.brake x1
06. Exposure hand brake x1
07. Backscatter Shield x1
08. Instruction manual x1
09. Qualified certificate x1
10. Packing list x1

Warranty

Period validity:

Main Unit: 2 Years / Accessory Parts (wires, plugs): 6 Months / Consumables: No Warranty

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

- The damage caused by disobeying the operation instruction or lack of the needed conditions.

- The damage caused by unsuitable operation or disassembly without authorization.

- The damage on product that caused by users’ unexpected drop or impact to product.

- The damage caused by unadvisable transportation or preservation.

- There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Woodpecker / DTE Ai Ray Pro Portable X-Ray

The Woodpecker Ai Ray Pro is the next-generation portable dental X-ray system designed for precision, simplicity, and operator safety. Building on the reliability of the Ai Ray series, the Pro version introduces an intelligent positioning system that ensures accurate, one-shot imaging with minimal effort.

With advanced sensors, dynamic tracking, and automatic calibration, Ai Ray Pro simplifies positioning and reduces retakes, making it ideal for both experienced clinicians and new users.

Key Features

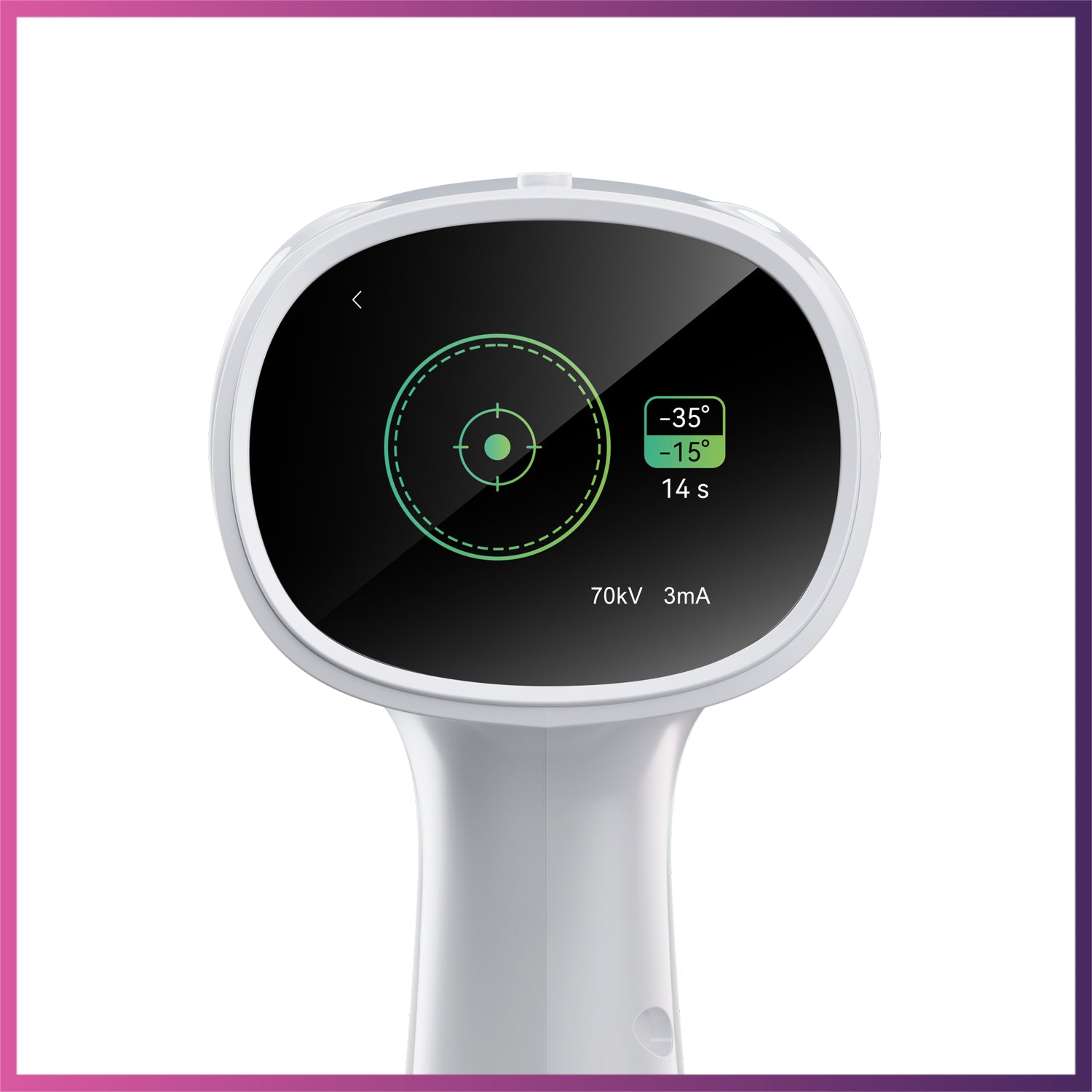

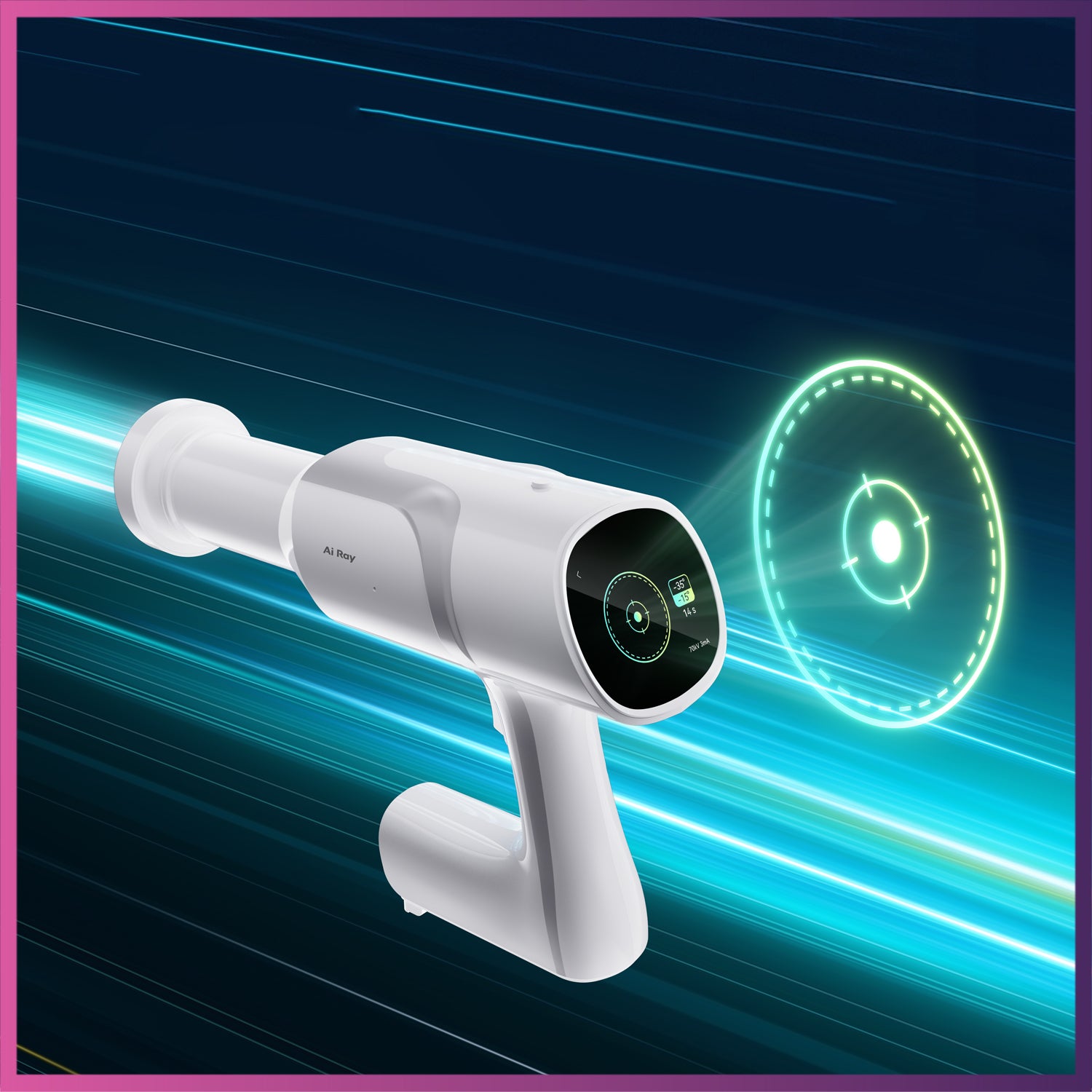

  • Intelligent Positioning System – Smart distance sensing, gyroscope auto-calibration, and ≤2° angle accuracy for consistent one-shot imaging
  • Advanced Dynamic Tracking – High-precision algorithm capturing movement up to 1000 times per second for accurate positioning
  • High Safety Standard – 99.9% shielding with pure lead layer; radiation leakage ≤ 0.05 mGy/h

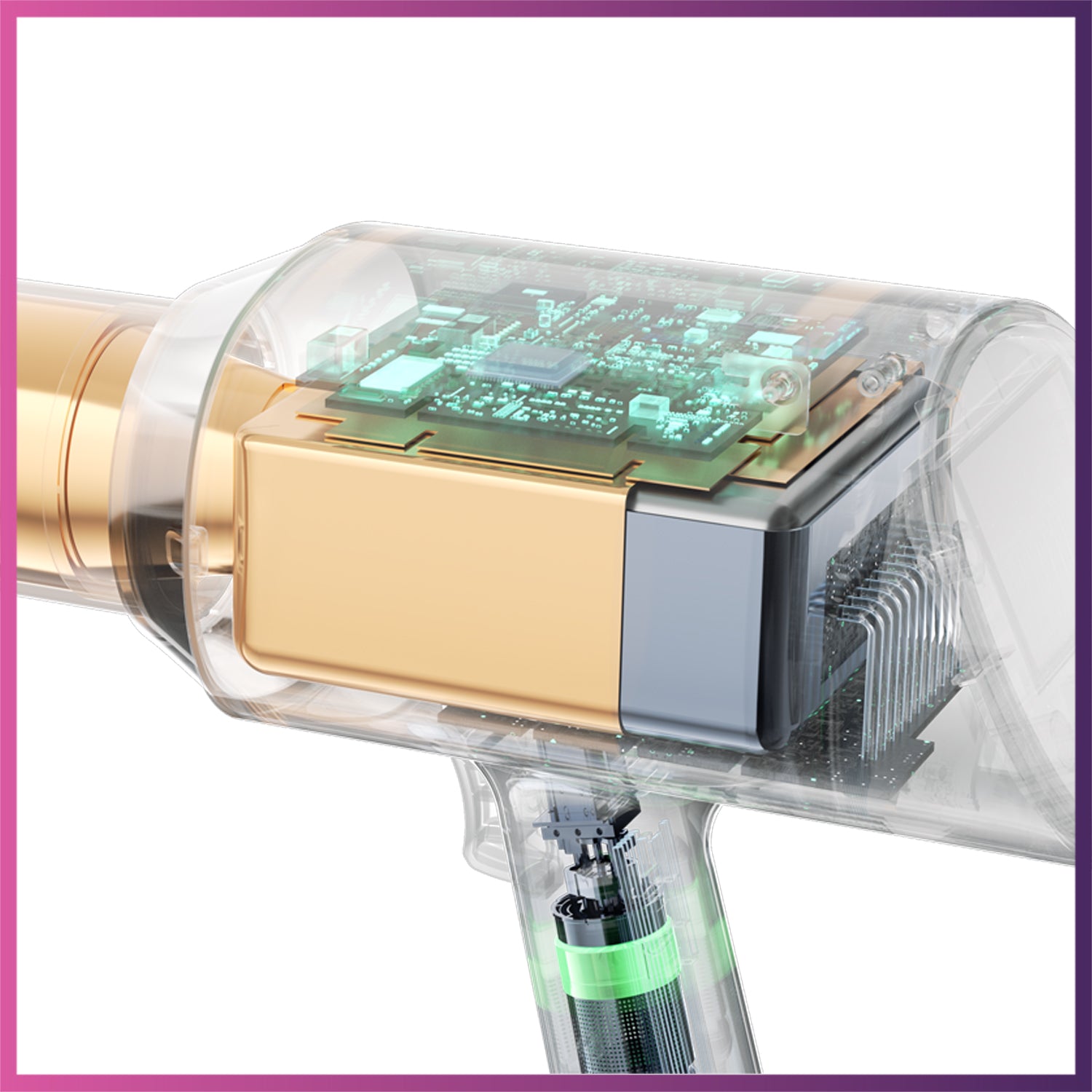

  • Premium Imaging Performance – Original high-frequency Canon tube with 0.4 mm focal spot for sharp, reliable diagnostics
  • Long Battery Life – Over 1,500 exposures on a single charge for uninterrupted clinical workflow

Accessories:

  • Wireless exposure hand brake: standard
  • Backscatter Shield: optional (not included)
  • Holder Stand: optional (not included)

Health Canada License#110262
