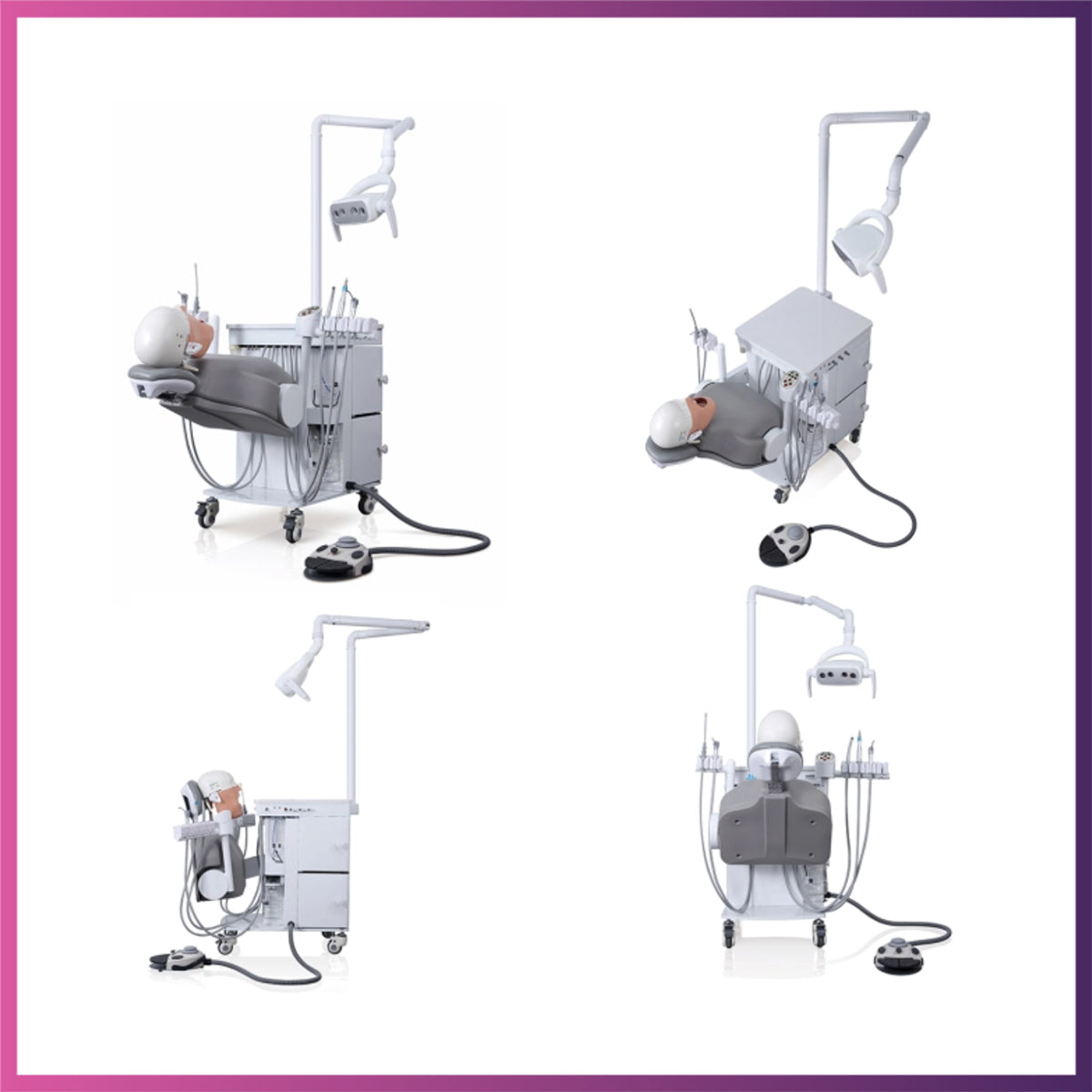

Dental Simulator JG-A15

JG-A15 is the perfect training tool for dental universities and advanced training colleges.

The simulation includes electronically controlled patient positioning, integrated water supply and suction, generous storage spaces and ergonomically adjustable dentist and assistant elements with individually selectable instrumentation.

In addition, the patient simulator with teeth, mandibular joint head, and torso is for students. It is easily accessible, integrates into the unit, and can be folded away to save space.

Key Features:

• Double drawers: Rotary translation switch mode, saving space, larger capacity.

• Movable electric part: Including four 3-inch casters with brake (single casters bearing 70KG), easy to move.

• Artificial marble countertop: Can be placed instruments.

• 3-way Syringe

• Head mould stored vertically: Space-saving and beautiful.

• Simple operation panel:

1. Oral lamp switch button.

2. Clean water and dirty water bottle alarm light.

3. Four directional control buttons.

4. Two patient simulator location memory buttons.

5. Equipped with a reset button, which can shrink the shoulder body.

• Simulated head model with torso: It includes a simulated average jaw frame, mask, and skull cap, equipped with a simulated shoulder body, and a completely simulated human body structure.

• Water storage bottles:

1. The capacity of the clean water bottle is 600ml, and the water level is lower than the preset water level, with an alarm function.

2. Dirty water bottle is 1100mL; Magnetic suction type bottle, convenient quick discharge, sewage reaches a certain level with alarm prompt function and stop suction saliva, prevent sewage overflow.

• Multi-function foot control:

1. Drive the Handpieces system to work (handpieces drive and spray, water supply switch, single air outlet).

2. Control the lifting and pitching of the simulation head mold.

3. Head mold stored.

• Doctor and assistant side pylon system:

1. Doctor side: 4 mount positions (High speed handpiece, Low speed handpiece, 3-way syringe and the rack spare).

2. Assistant side: 2 mount positions (weak suction and 3-way syringe).

• LED oral lamp and arm:

1. Voltage: AC12V - AV24V

2. Power:12W

3. Light source quantity: 4PCS

4. Illumination: adjustable from 8000Lux to 20000Lux

5. Color temperature:6500 k

6. Control mode: Infrared sensor switch control poleless dimming + manual switch multi-mode dimming

• Dentist stool: It can hold over 135 kg. You can adjust the sitting surface height between 400 mm and 510 mm from the ground as needed. The casters allow for easy movement.

• High-speed handpiece:

1. Universal press type four-hole interface

2. Speed ≥ 350,000 rpm

3. Can be 135 degrees high-temperature air pressure sterilization

• Low speed handpiece:

1. Universal press type four-hole interface

2. Speed ≥ 20,000 rpm

3. Can be 135 degrees high-temperature air pressure sterilization

Options:

Dental Intraoral Camera:

• 17 inch LCD screen.

• 8 mega-pixel camera.

• Display: 1 Picture/4 Pictures/ 16 Pictures.

• Image Sensor: SONY CMOS 1/4.

• Built-in 6pcs LED light.

• Storage Mode: USB Storage.

• Storage Capacity: 32G.

• Signal output: VGA & USB & Audio & HDMI & AV.

• Screen Resolution: 1280*1024.

Dental Air Compressor

• Current 2.4A

• Power 545W

• Speed 1380/Min

• Volume flow 70L/min

• Start working pressure 0.47Mpa / Rated exhaust pressure 0.8Mpa

• Air tank 32L

Replacement Teeth-28/32 PCS Teeth for Head Model

• Anatomy crown, straight roots.

• Screw fixed.

• Nissin Type/Frasaco Type.
