What rotational modes does the device support?

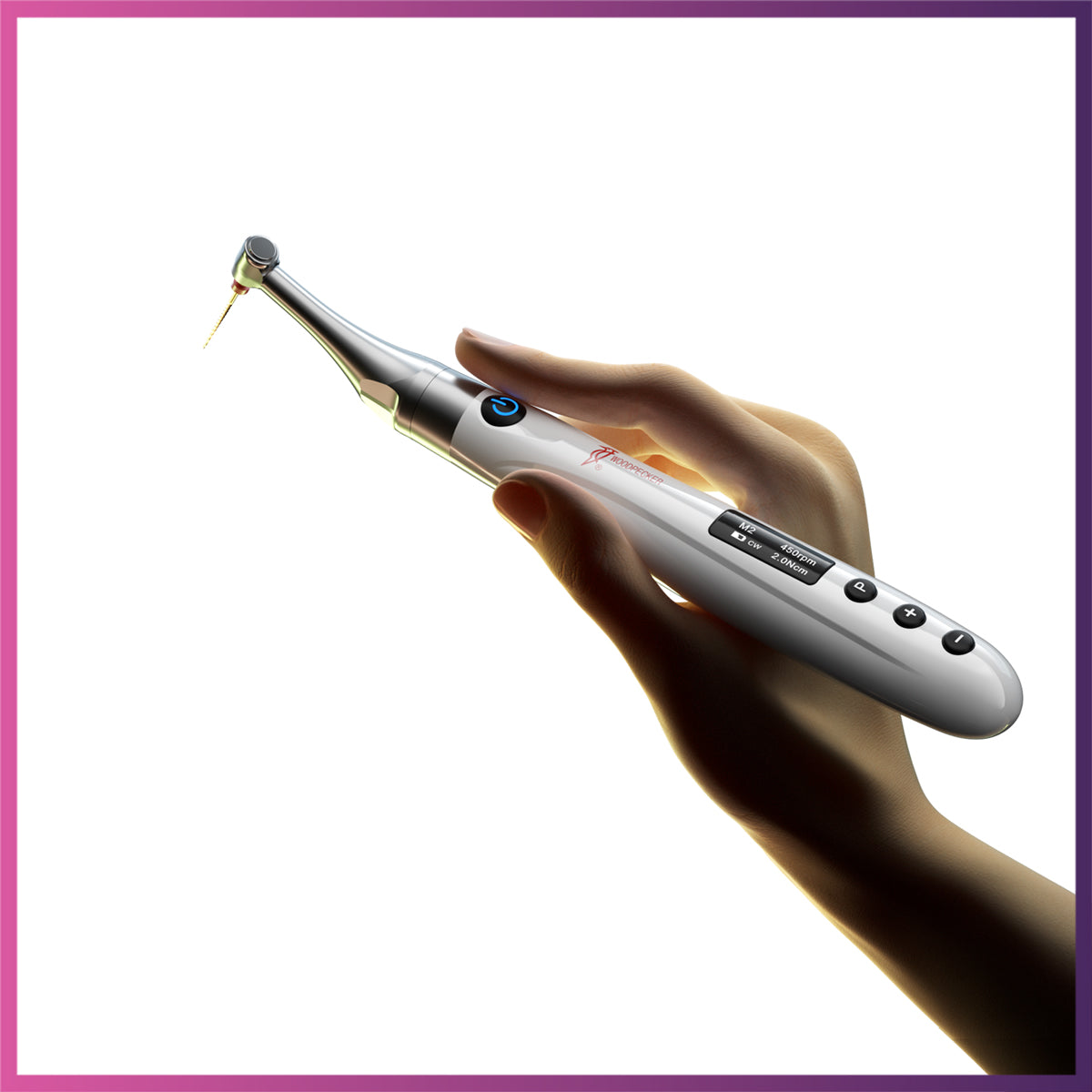

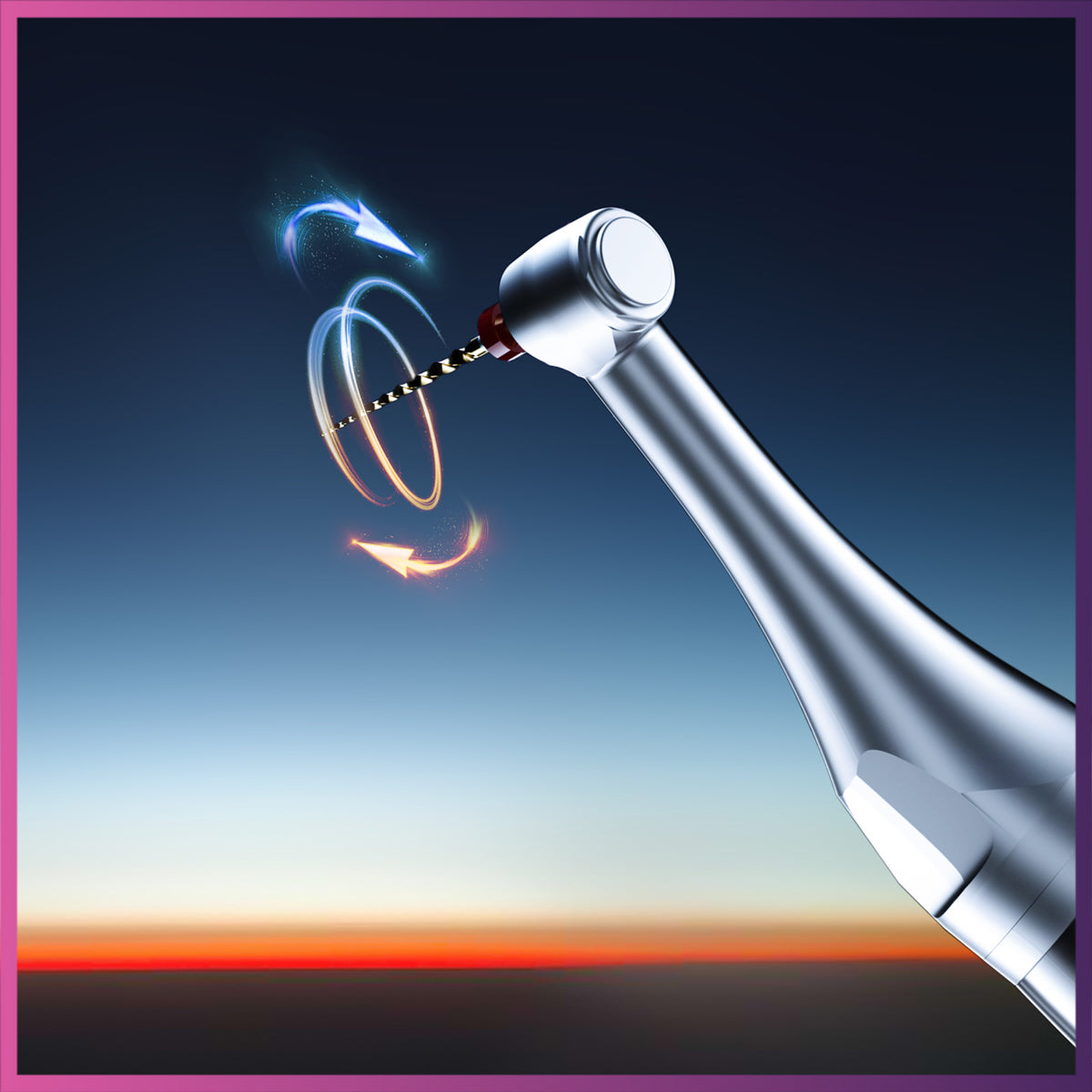

• CW (Continuous Clockwise): For rotary files during canal preparation
• CCW (Counter-Clockwise): For special tasks like calcium hydroxide injection

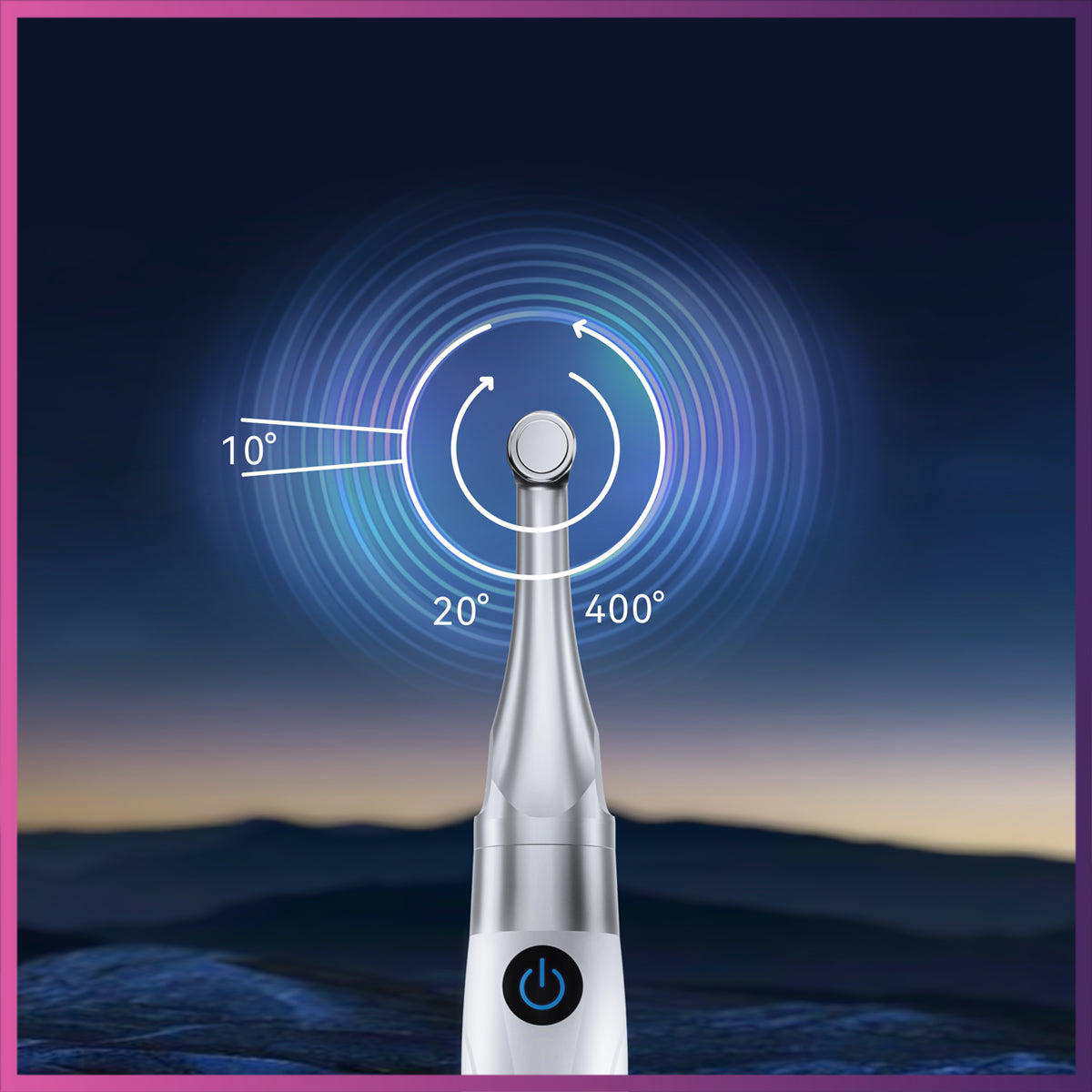

• REC (Reciprocating): Alternates between forward and reverse angles for canal shaping
• ATR (Adaptive Torque Reverse): Automatically adjusts between reciprocating and continuous rotation based on torque

How does the apex locator integration work?
When connected to a compatible apex locator, the Endo Free displays the file tip’s progression toward the apex on a Canal Length Indicator Bar. It also enables features like Apical Slow Down and Apical Action, which automatically adjust file movement near the apex.

What is Apical Slow Down, and how does it work?
Apical Slow Down is an automatic function that reduces the file rotation speed as it approaches the apex to ensure precision and safety. It is active in CW and CCW modes.

How do I install the contra-angle on the Endo Free?

1. Align the locating pins of the contra-angle with the positioning slots on the motor handpiece.
2. Push the contra-angle horizontally until it clicks into place.
3. Ensure the contra-angle is securely installed before operation.

How do I insert and remove files in the contra-angle?

• To insert: Hold down the push button on the contra-angle, insert the file, and release the button to lock the file in place.
• To remove: Press the push button and gently pull out the file.
  Note: Always stop the motor before inserting or removing files.

What are the automatic functions of the Endo Free?

• Auto Start: File rotation starts automatically when the file is inserted into the canal.
• Auto Stop: File rotation stops automatically when the file is removed from the canal.
• Apical Action: Automatically stops, reverses, or slows the file when it reaches the apex.

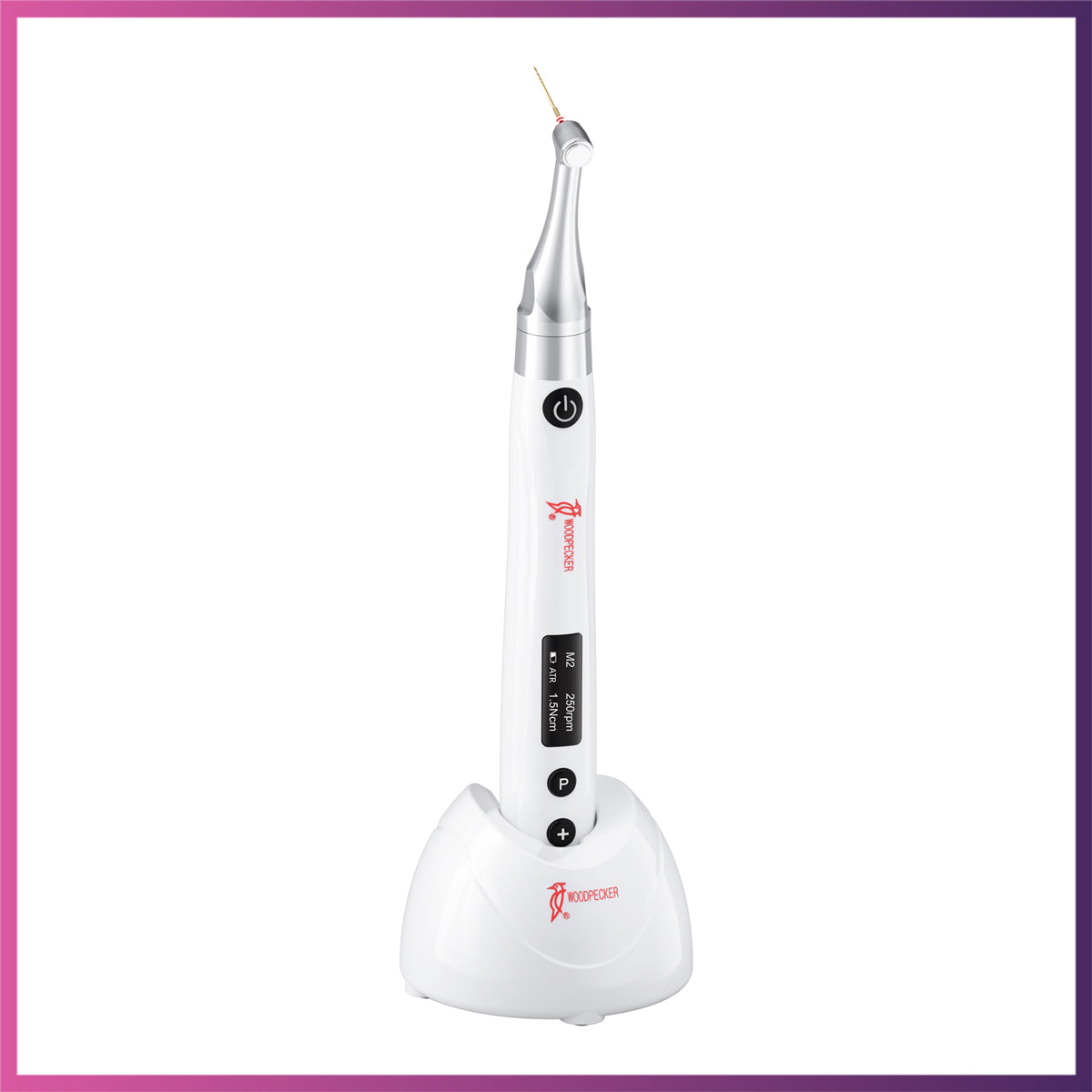

How do I charge the Woodpecker Endo Free?

• Connect the power adapter to the motor handpiece and ensure they are correctly connected.
• The battery indicator on the screen will flash during charging.
• Once charged, disconnect the power adapter.
  Only the original power adapter should be used.

What should I do if the device overheats?
If the device stops due to overheating, turn it off and allow it to cool before resuming use. Continuous load on the motor can trigger overheat protection.

How do I clean and maintain the contra-angle?

1. Clean the contra-angle with a neutral pH disinfectant after each use.
2. Lubricate the contra-angle with the original oil nozzle before sterilization.
3. Sterilize under high temperature and pressure (134°C, 2.0–2.3 bar).

Can I use any file with the Endo Free?

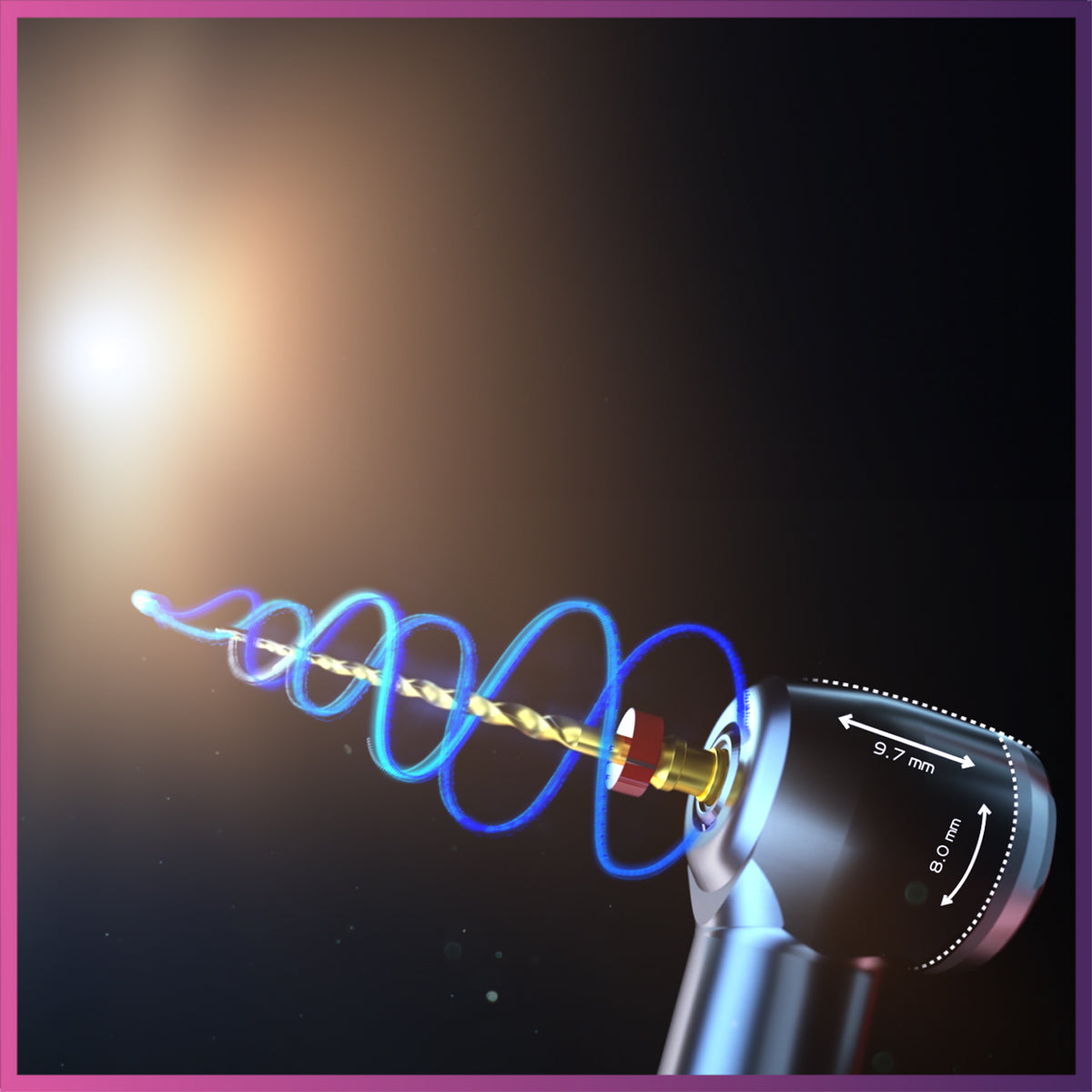

Only use files with shanks that meet ISO standards (Ø2.334–2.350 mm) to avoid damage to the contra-angle.

What should I do if the device doesn't connect to the apex locator?
Ensure the USB wire and measuring wire are correctly connected. Perform a connection test by touching the lip hook with the file in the contra-angle. If the issue persists, check the wires or replace them as needed.

Does the Endo Free support memory settings?
Yes, the device has 10 customizable memory programs (M0–M9) and 5 preset programs, allowing users to save parameters like rotational mode, speed, and torque.

What safety features does the Endo Free have?

• Automatic Reverse Protection to prevent file breakage
• Overheat Protection to avoid damage from prolonged use
• Low Battery Indicator to ensure proper operation

How do I replace the battery in the Endo Free?

1. Turn off the device.
2. Open the rubber cover and remove the screws.
3. Separate the motor handpiece cover, disconnect the old battery, and connect the new one.
4. Reassemble the device securely.
   Battery replacement should be done by an authorized distributor.
