Woodpecker / DTE Gutta-percha Obturation Device Fi-E

Click to open expanded view

Woodpecker / DTE Gutta-percha Obturation Device Fi-E

Name: Woodpecker / DTE Gutta-percha Obturation Device Fi-E
Brand: Woodpecker (DTE)
SKU: GUT-OBT-FIE
Price: 970.0 CAD
Availability: InStock

SKU: GUT-OBT-FIE

Price

$970

Taxes and shipping calculated at checkout

Specifications

Optional preset temperatures: 100°C→120°C→150°C→180°C→200°C

Time consumption for charging: About 2.5h(First charging needs 3 h)

Battery capacity: 2000mAh

Weight:Hot Melting and Filling Instrument: 148g

Charging base: 179g

Power adapter: 167g

Packing List

FI-E
1. Main unit x 1
2. Dual Charging stand x 1
3. Power adapter x 1
4. Battery x 2
5. Injection needle x 4
7. Heat insulation hood x 2

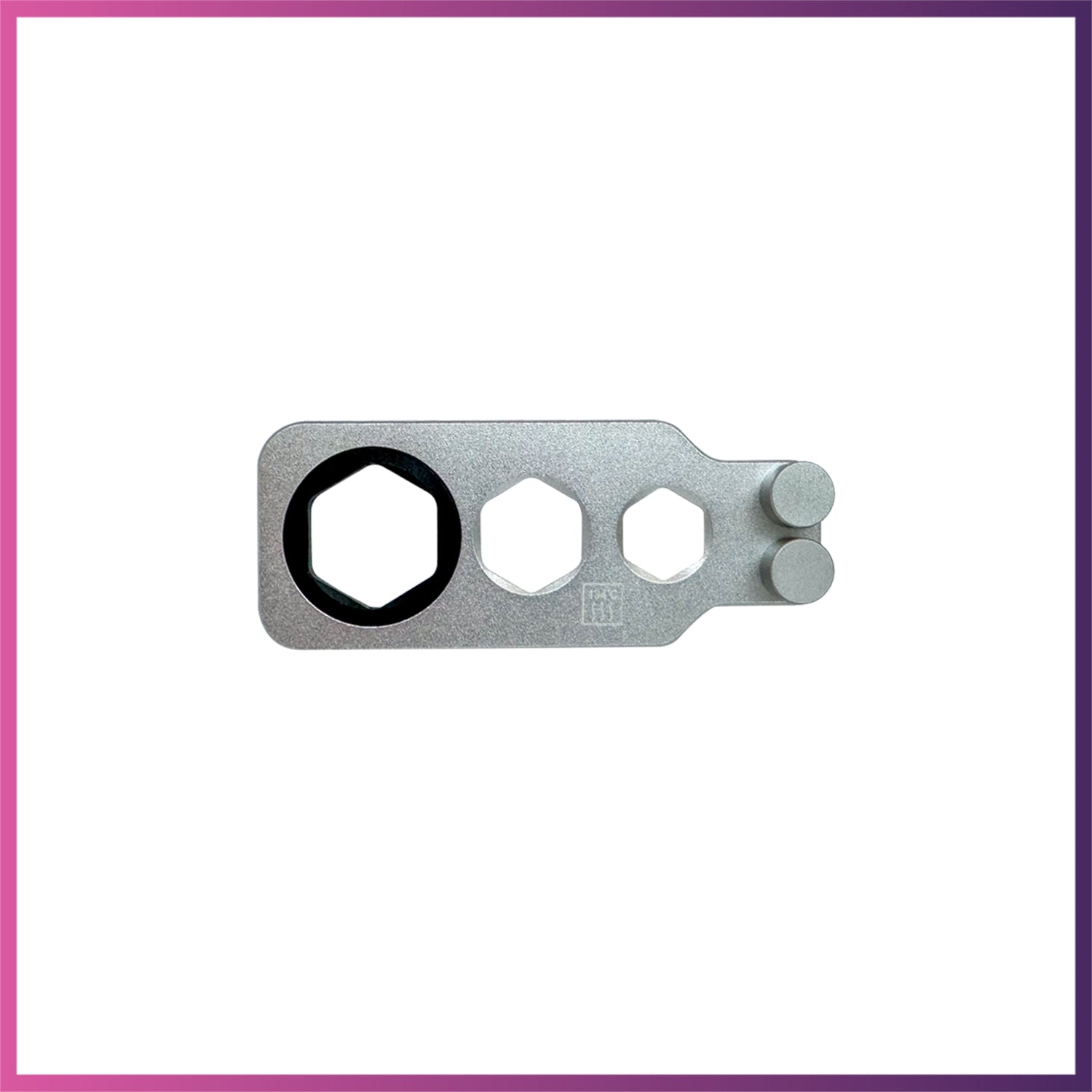

8. Wrench of needle x 1
9. Gutta-Percha Ring x 1
10. Instruction Manual x 1
11. Qualified Certification x 1
12. Warranty card x 1
13. Packing list x 1

Warranty

I)Period validity:

Since the date of sales, our company will be responsible for the repair of main unit, charging stand, and power adapter for one year. Please refer to the Warranty Card for warranty period and warranty scope. The warranty period of lithium battery is one year.

II) Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

III) The following are beyond our warranty:

- The damage caused by disobeying the operation instruction or lack of the needed conditions.

- The damage caused by unsuitable operation or disassembly without authorization.

- The damage caused by unadvisable transportation or preservation.There isn’t the seal of distributor, or the warranty card isn’t filled in completed.Except for the main unit, charging stand, power adapter and lithium battery, the other accessories are not covered by warranty.

Share this product

Description Video Links PDF Downloads FAQ

Fi - E Obturation Device:

Wireless & Electric

Perfect gutta-percha fluidity, uniform and smooth gutta-percha output without bubbles. Easier than traditional manual gutta-percha injection to relieve hand fatigue for the operator. Eliminate surgical hazards caused by gutta-percha leakage and overflow. Maintenance thanks to automatic cleaning of remaining gutta-percha.

Reusable Injection Needle

360° rotatable. 3 injection speeds. The gutta-percha bar is directly loaded into the injection needle. There is no gutta-percha residue inside the machine, making it easier to clean. The gutta-percha bar can be replaced at anytime without waiting for the internal cooling machine.

Dual Button Design

Symmetrically-designed dual injection buttons, sensitive and convenient.

Compact and lightweight= Easier To Hold

Diameter:26mm*26mm Length:200mm Weight: 148g

Available Injection Needles:

Model	Gauge	Length	Remark
E20G-S	20Ga	22mm	Reusable
E20G-M	20Ga	24mm	Reusable
E20G-L	20Ga	28mm	Reusable
E23G-M	23Ga	24mm	Reusable
E23G-L	23Ga	28mm	Reusable
E25G-M	25Ga	24mm	Reusable
E25G-L	25Ga	28mm	Reusable
E20G-NR	20Ga	28mm	Single use
E23G-NR	23Ga	28mm	Single use
E25G-NR	25Ga	28mm	Single use

Here are some videos for your viewing. Enjoy!

Introduction to Fi-E

Fi-E Demonstration

Fi-E User Manual

Fi-E + Fi-P Catalogue

1. What is the purpose of the Gutta Percha Injecting Needle?
The Gutta Percha Injecting Needle is used to heat up and soften gutta-percha, which is then injected into the root canal after preparation. It is a crucial component of the Woodpecker FI-E Hot Melting and Filling Instrument.

2. How should the Gutta Percha Injecting Needle be cleaned and maintained?
Store unused needles in a sealed environment to prevent discoloration from oxidation.
Before use, clean, disinfect, and sterilize the Thermal Protector Cap.
Regularly inspect the needle for damage or wear and replace it if necessary.

3. How many types of Gutta Percha Injecting Needles are available, and what are their specifications?
There are several types of Gutta Percha Injecting Needles available:
E20G-S: 20Ga, 22mm, Reusable
E20G-M: 20Ga, 24mm, Reusable
E20G-L: 20Ga, 28mm, Reusable
E23G-M: 23Ga, 24mm, Reusable
E23G-L: 23Ga, 28mm, Reusable
E25G-M: 25Ga, 24mm, Reusable
E25G-L: 25Ga, 28mm, Reusable
E20G-NR: 20Ga, 28mm, Single use
E23G-NR: 23Ga, 28mm, Single use
E25G-NR: 25Ga, 28mm, Single use

4. How should I install and disassemble the Gutta Percha Injecting Needle?
Installation: Power off the device, wait for 5 minutes until it cools down, then use the provided wrench to tighten the needle clockwise.
Disassembly: Use the wrench to unscrew the needle counter-clockwise after ensuring the device is off and cool.

5. Can the Gutta Percha Injecting Needle be bent or adjusted?
Yes, the needle can be pre-bent to a suitable angle using the provided wrench. However, the bending angle should not exceed 90° and should not be performed at the size transitional parts of the needle.

6. What should I do if the Gutta Percha Injecting Needle shows signs of damage or wear?
If the needle is damaged or shows signs of wear, replace it immediately to ensure proper functionality and avoid any potential issues during the procedure.

7. How should the Gutta Percha Injecting Needle be stored when not in use?
Store the needle in a sealed environment to prevent oxidation and discoloration. Ensure it is kept in a cool, dry place to maintain its integrity.

8. What should I do if the gutta-percha does not fit properly into the heating chamber?
Ensure that only one stick of gutta-percha is placed at a time and that it is fully fitted into the heating chamber. Failure to do so can result in device malfunction.

9. Is the Gutta Percha Injecting Needle reusable?
Some models of the needle are reusable, while others are designed for single use only. Refer to the specific model for details on its usage and disposal.
