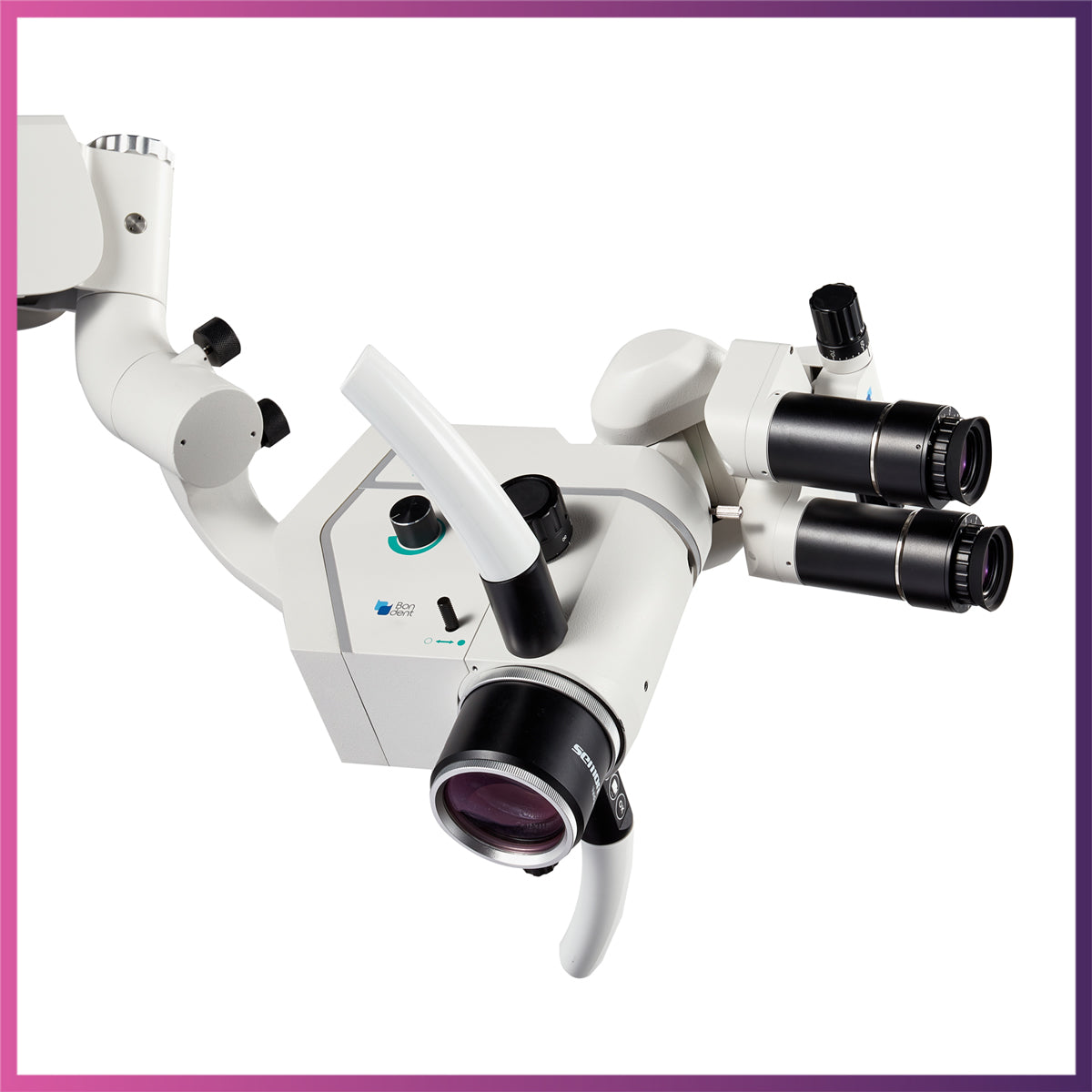

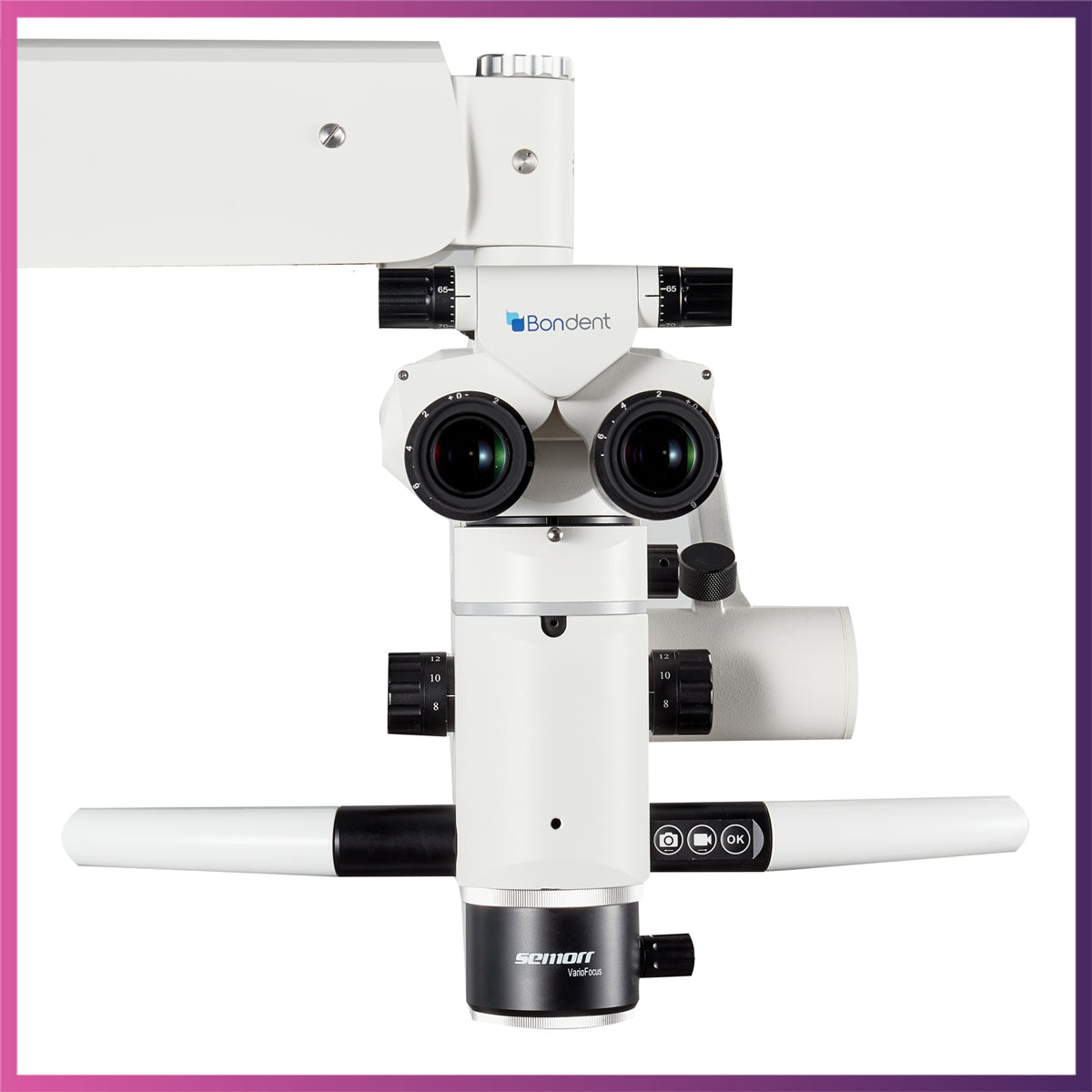

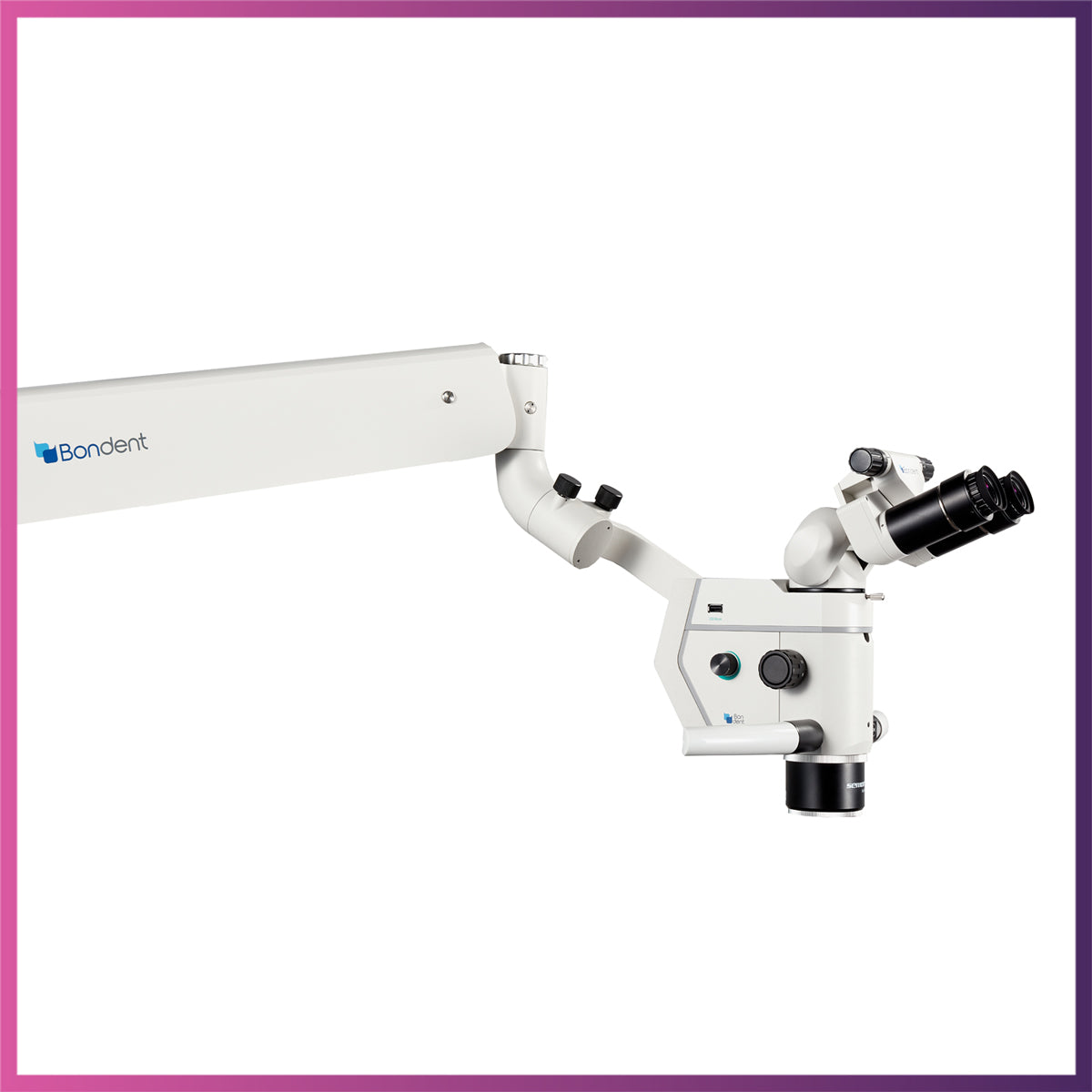

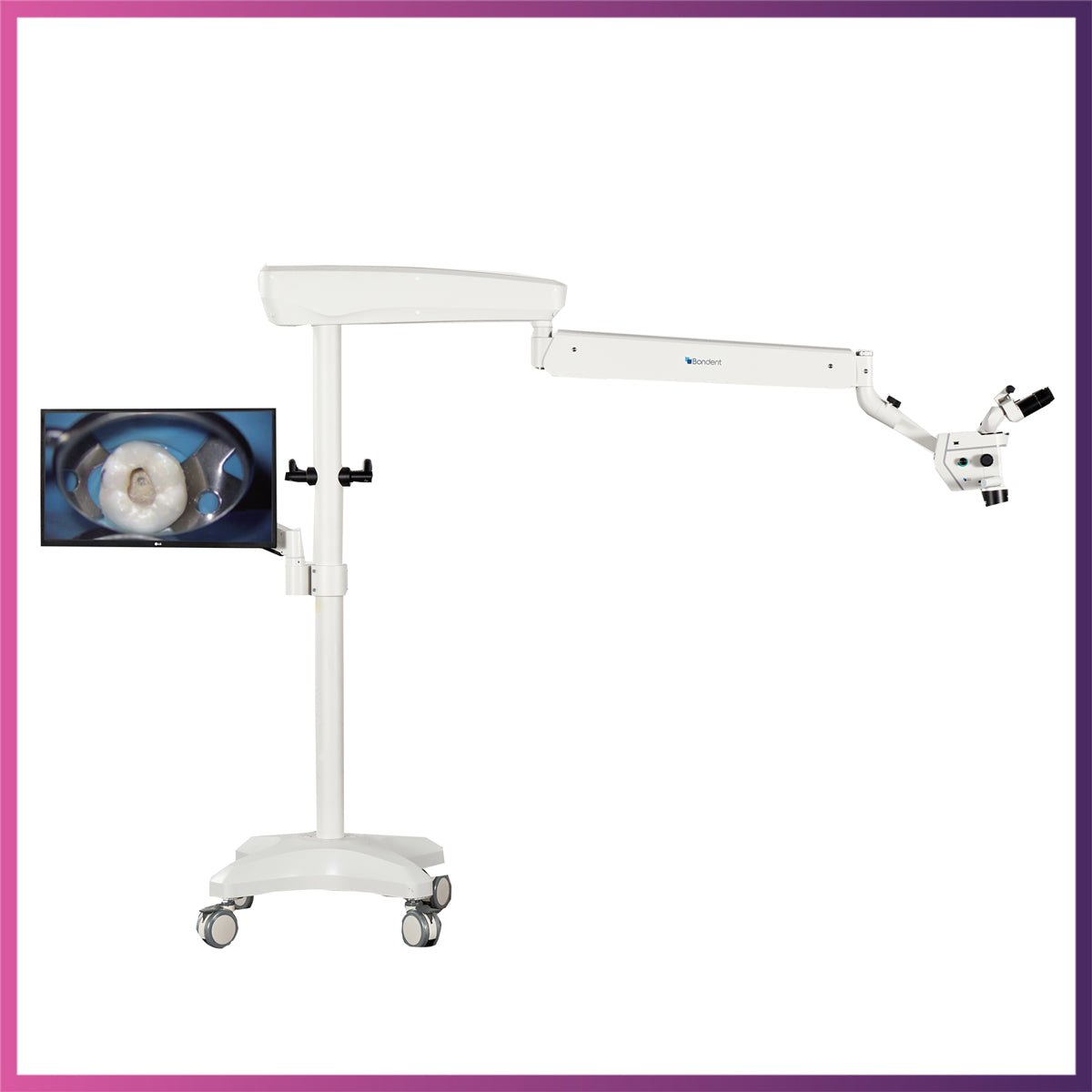

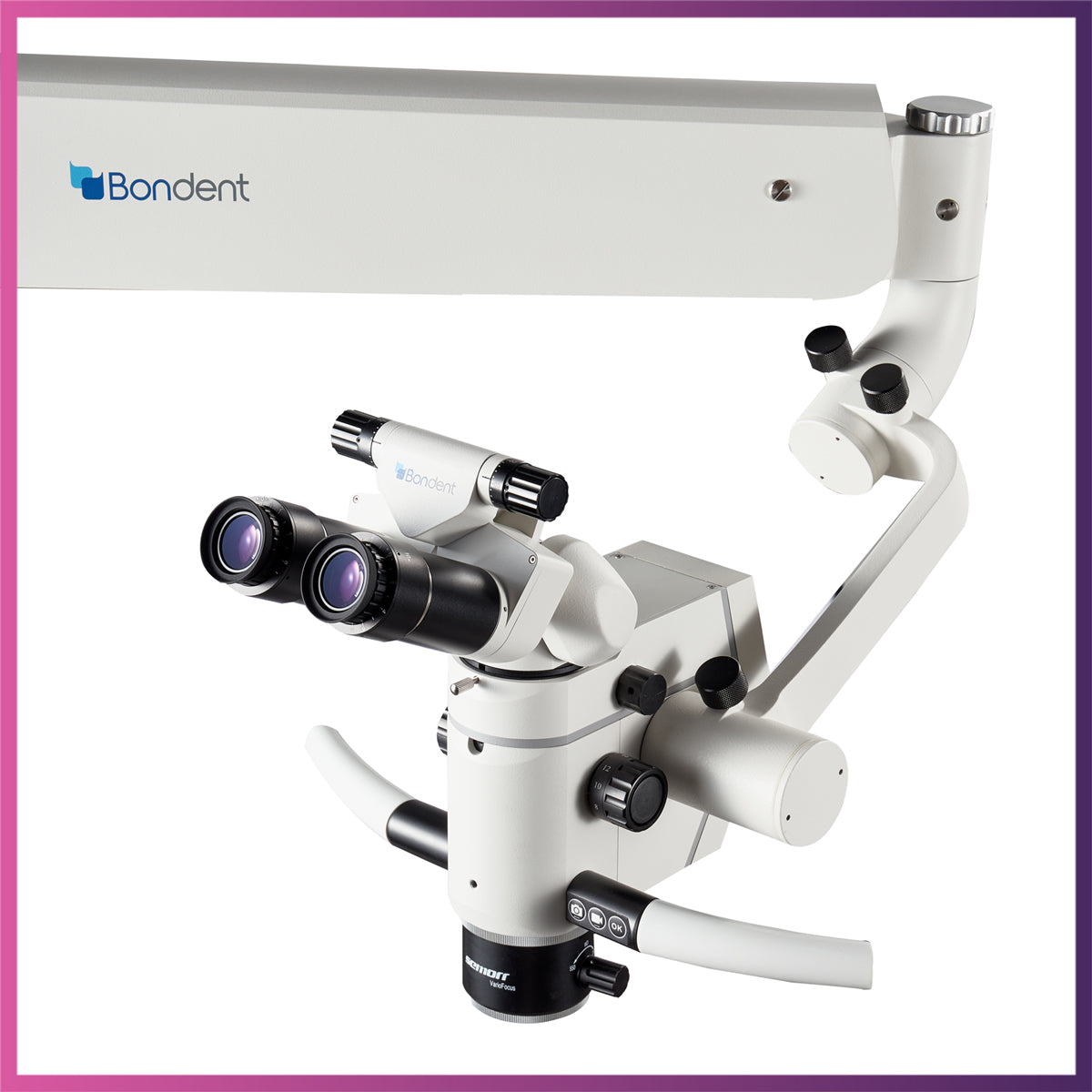

BonDent / Semorr Microscope G4D

The BonDent / Semorr Microscope G4D is designed to elevate the precision and efficiency of your dental procedures. With optimized optics and ergonomic design, this microscope provides unparalleled visibility, allowing you to see fine details and enhance treatment quality across all dental disciplines. The integration of a built-in 4K camera system ensures superior imaging, while innovative mechanical features promote ease of use and minimal repositioning during surgery. With a wide 1760 mm (5.77 ft) arm spread, the G4D offers exceptional flexibility and reach, minimizing the need for frequent adjustments and enabling smoother workflows.

Key Features:

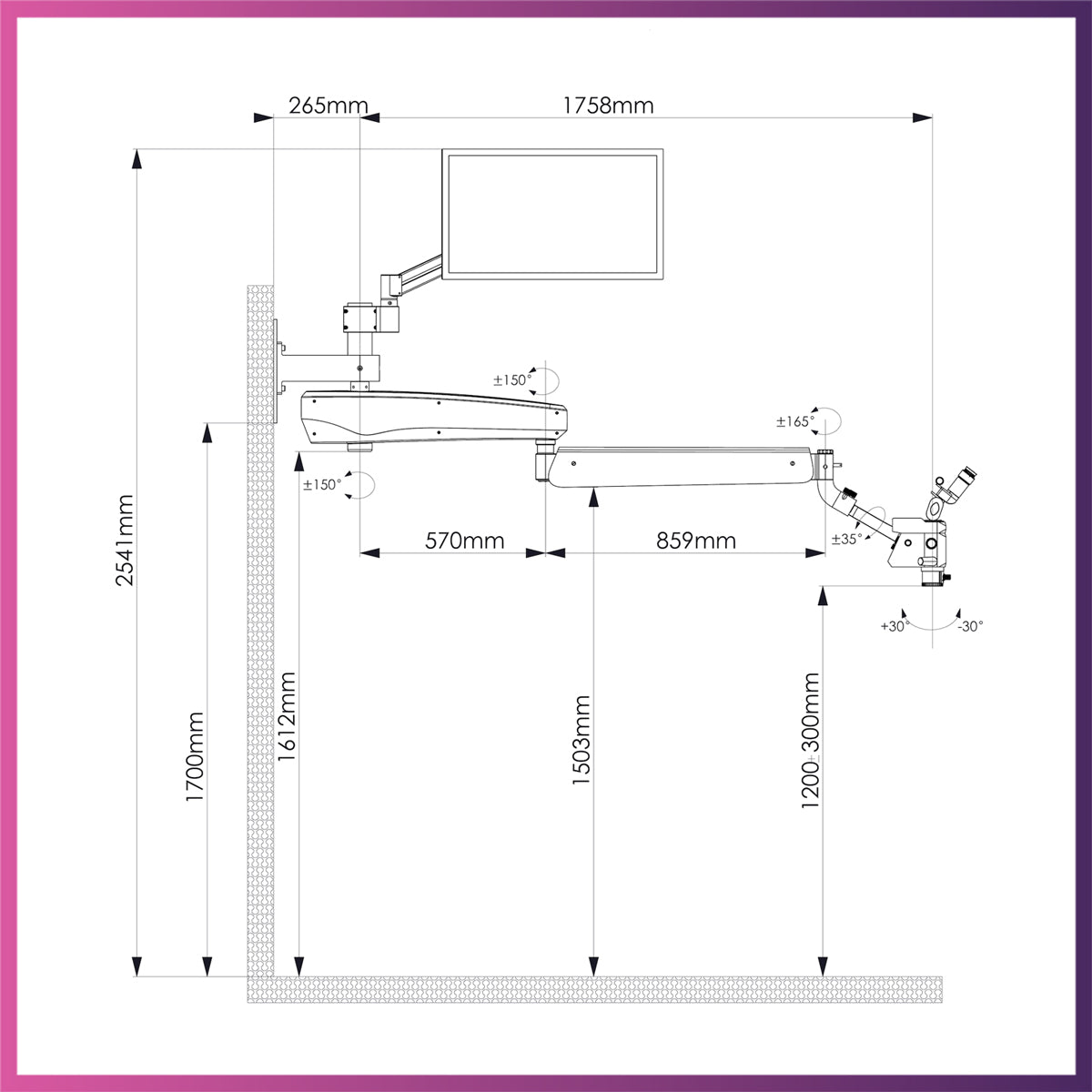

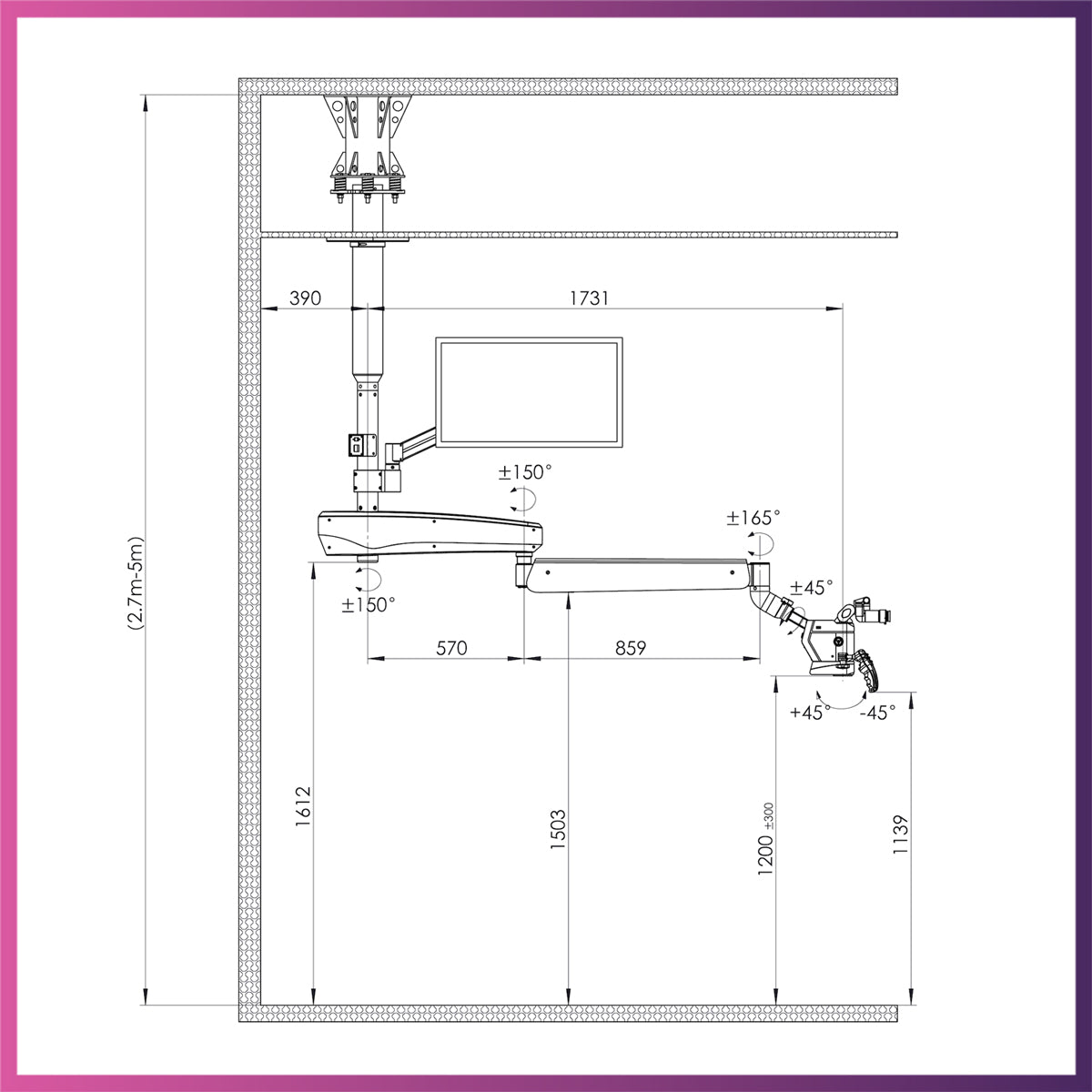

1. Wide 1760 mm (5.77 ft) Arm Spread for Greater Flexibility

• The extended arm spread ensures a larger operating range, allowing you to cover a broad area without repositioning the microscope frequently. This maximizes efficiency and comfort during procedures.

2. Optimized Optics for Enhanced Clarity

• Sharpened optical imaging reduces glare and improves visibility by minimizing beam splitting, color separation, and polarization.

• Enhanced light collection within the working distance increases resolution for more precise viewing of fine details.

3. Built-In 4K Camera System

• Equipped with SONY’s high-end image sensor, the microscope supports 4K video recording for ultra-clear imaging.

• Seamlessly integrates with wireless remote control, enabling easy capture and playback of procedures.

4. Vario Focus Objective Lens

• Offers a working distance range of 180 mm to 460 mm, providing greater depth and reducing the need for microscope repositioning.

• Field of view ranging from 132 mm to 9.7 mm delivers enhanced visualization for precise treatment.

5. Ergonomic and Easy to Operate

• 0-210° inclinable ergonomic binocular tube ensures a comfortable working position.

• One-handed operation with adjustable torque allows for smooth, effortless microscope adjustments.

6. Safer, Cleaner Environment

• Permanent nano-silver ion coating on the microscope body ensures antibacterial protection, reducing the risk of cross-contamination.

7. High-Performance Illumination System

• Built-in medical LED light source offers a lifespan of over 60,000 hours and provides adjustable luminance for optimal illumination.

• Color temperature of 5700K ensures natural, accurate lighting for clearer visibility during procedures.

8. Magnification System

• Adjustable zoom magnifications (3.6x to 23.3x) with 10X/22B high eyepoint ocular, providing a larger field of view for greater precision.

Camera Features

1. Software Interface

• Mouse-controlled OSD Interface: The camera settings can be adjusted using a mouse, which makes navigation and parameter adjustments easy and intuitive. The OSD (On-Screen Display) interface appears when the mouse is moved to the left side of the screen and disappears when moved out.

• Photo & Video Shortcuts: Clicking the left mouse button captures a photo, while the right mouse button starts and stops video recording.

2. Photo and Video Functions

• Photo Capture: Photos are stored directly to a USB flash drive with an indicator showing when storage is complete. This is a simple and direct method for capturing still images during microscope operation.

• Video Recording: Videos are recorded and saved on a USB flash drive. The user is advised to avoid repeated start/stop actions due to potential delays caused by USB writing speeds. The system supports using the right mouse button as a shortcut for starting and stopping recordings.

3. Preview and Playback Functions

• Photo Preview: Users can view and compare up to four stored photos at a time and perform operations such as delete or enlarge selected photos for comparison.

• Video Playback: Users can view recorded videos, play them back at different speeds (normal, 2X, 4X), and delete files. Deletion is irreversible, so caution is advised.

4. Image Settings

• Exposure Control: The camera allows both automatic and manual exposure adjustments based on light conditions. Exposure time and gain can be manually set for finer control.

• White Balance: Three white balance modes (Manual, Single, and Auto) provide flexibility in adjusting color settings to match the microscope’s lighting conditions. The manual mode allows fine-tuning of red, green, and blue gain.

5. Image Quality Adjustments

• Brightness, Contrast, and Chroma: Users can adjust image brightness, contrast, grayscale, and chroma to enhance the visual output, providing clear and optimized images for observation.

• Noise Reduction and Sharpness: The camera has 2D and 3D noise reduction capabilities, which reduce noise without compromising image sharpness. The sharpness setting can also be adjusted for clearer image outlines.

6. Enhancement Features

• De-fog: This feature removes haze from the image and can be set manually or automatically to improve image clarity in foggy conditions.

• Dynamic Range: The dynamic range setting adjusts the camera’s tolerance to light intensity, allowing better handling of various lighting conditions in the microscope view.

• Exposure Area: Users can choose between global or center exposure, allowing specific focus on the center of the image where details may be most important.

7. Image Direction & Resolution

• Image Flip and Mirror: Users can flip or mirror the image as needed, allowing adjustments to the display based on personal preference or orientation.

• Resolution Control: The camera output resolution can be adjusted from the menu, providing flexibility in image quality based on usage needs.

8. Device Settings

• Date and Time Adjustment: The system allows users to adjust the internal clock to keep track of when images and videos are captured.

• Storage Status: The device only supports FAT32-formatted USB drives, ensuring proper functionality when storing media files.

• System Upgrade: Users can upgrade the system software using a USB flash drive, ensuring the device remains up-to-date.

• Language Selection: The camera supports English and Chinese language options for the interface.
