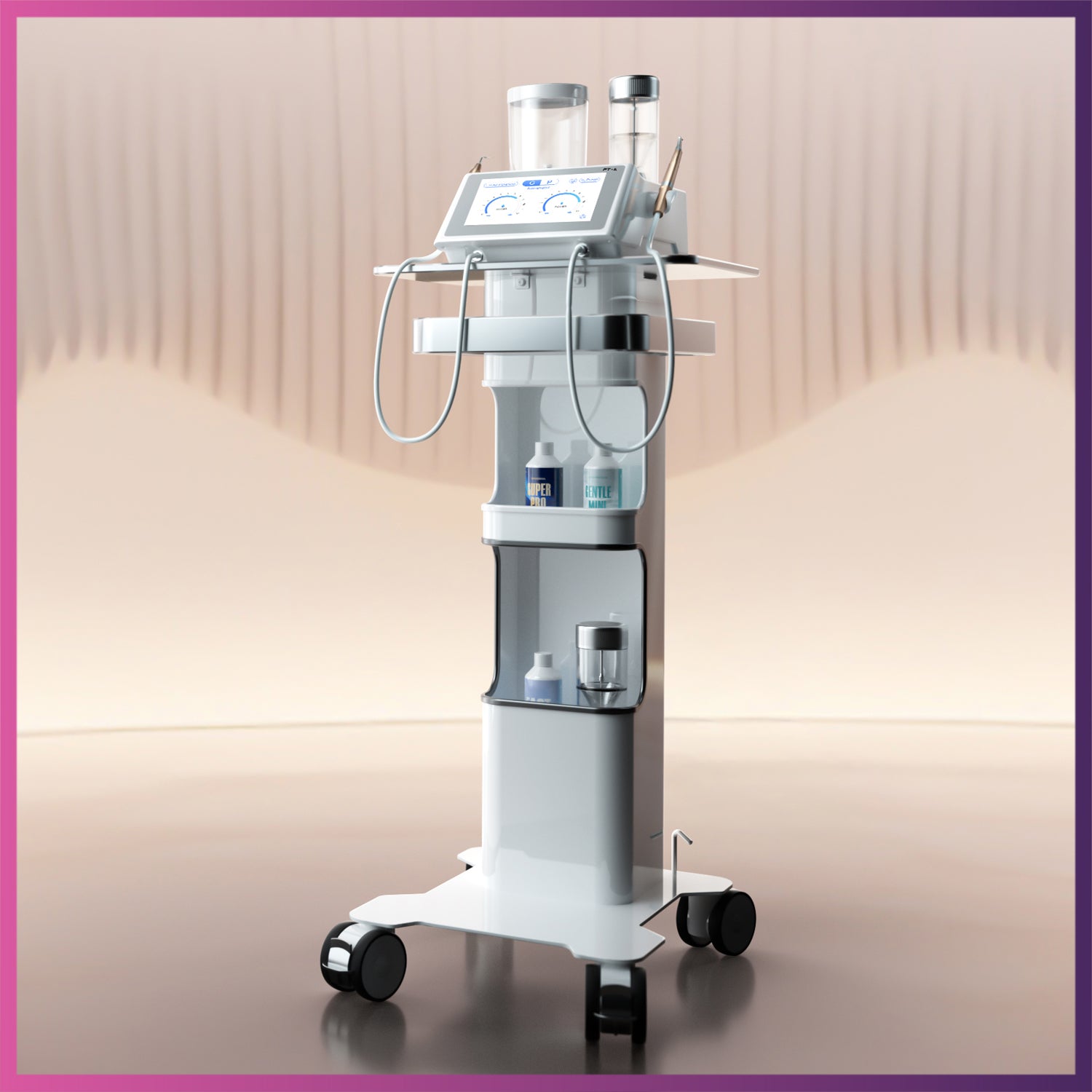

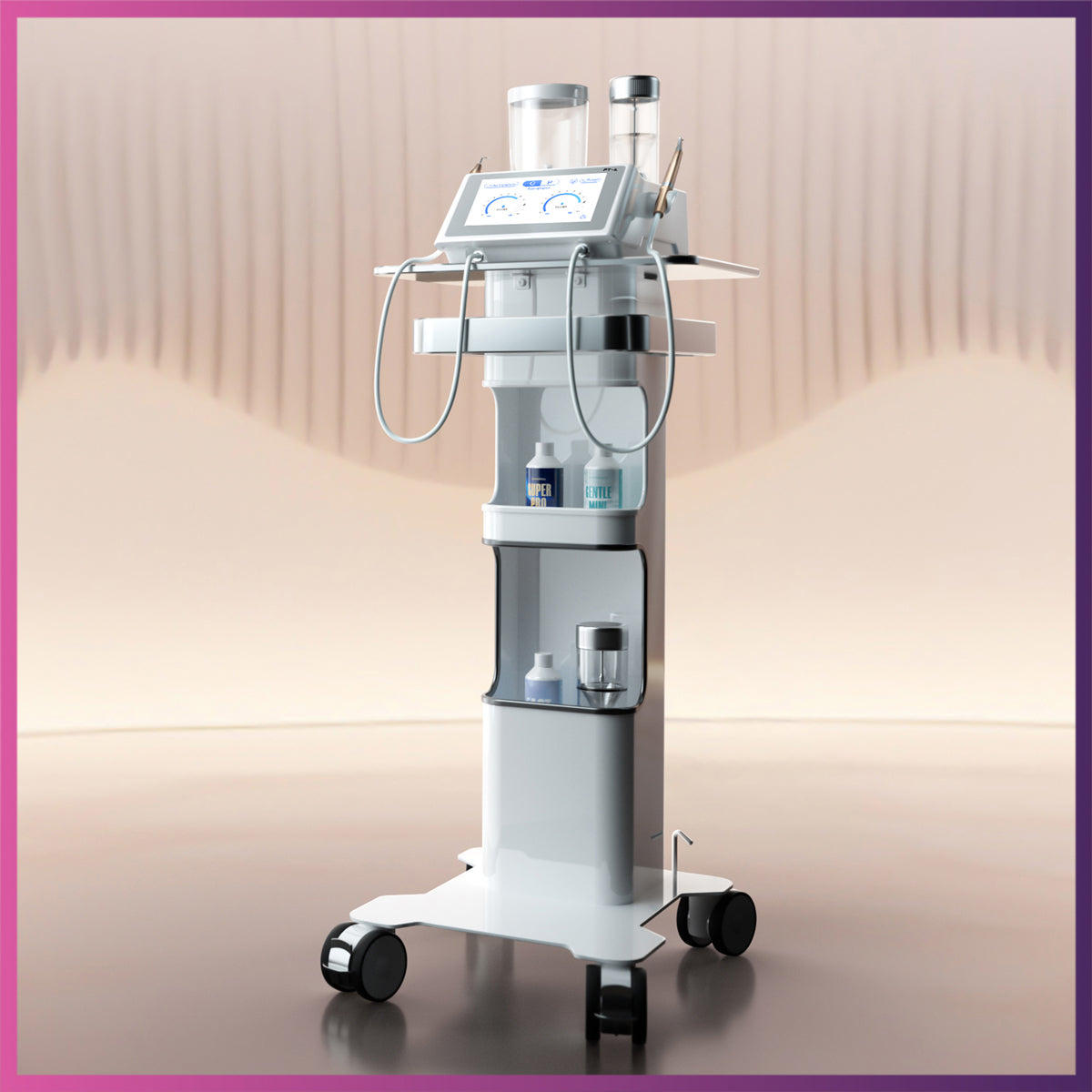

Woodpecker/ DTE Dental Scaler and Air Polisher PT- A

SKU: AIR-POL-PTA
Price
$5,999
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications

Power adapter input: 110V~ 50Hz/60Hz 400mA

Power adapter output: 25V~ 50Hz/60Hz 2.8A

Main unit input: 25V~ 50Hz/60Hz 2.8A

Output main vibration offset of tip (maximum): 90μm;  Deviation: +50%

Output vibrating frequency of tip: 30±5kHz

Output semi- (maximum)offset force: 5N Deviation: +50%

Output power of tip: 3W~20W 1.8.8 Main unit fuse: T5AH 250V

Power adapter fuse: T1.0AL250V

Water inlet pressure: 1bar~5bar (0.1MPa~0.5MPa)

Air inlet pressure: 5.5bar~7.5bar (0.55MPa~0.75MPa)

Water outlet temperature of air polishing system: 0~45℃

Main unit weight: 2.75Kg

Main unit size: 330mm×280mm×120mm

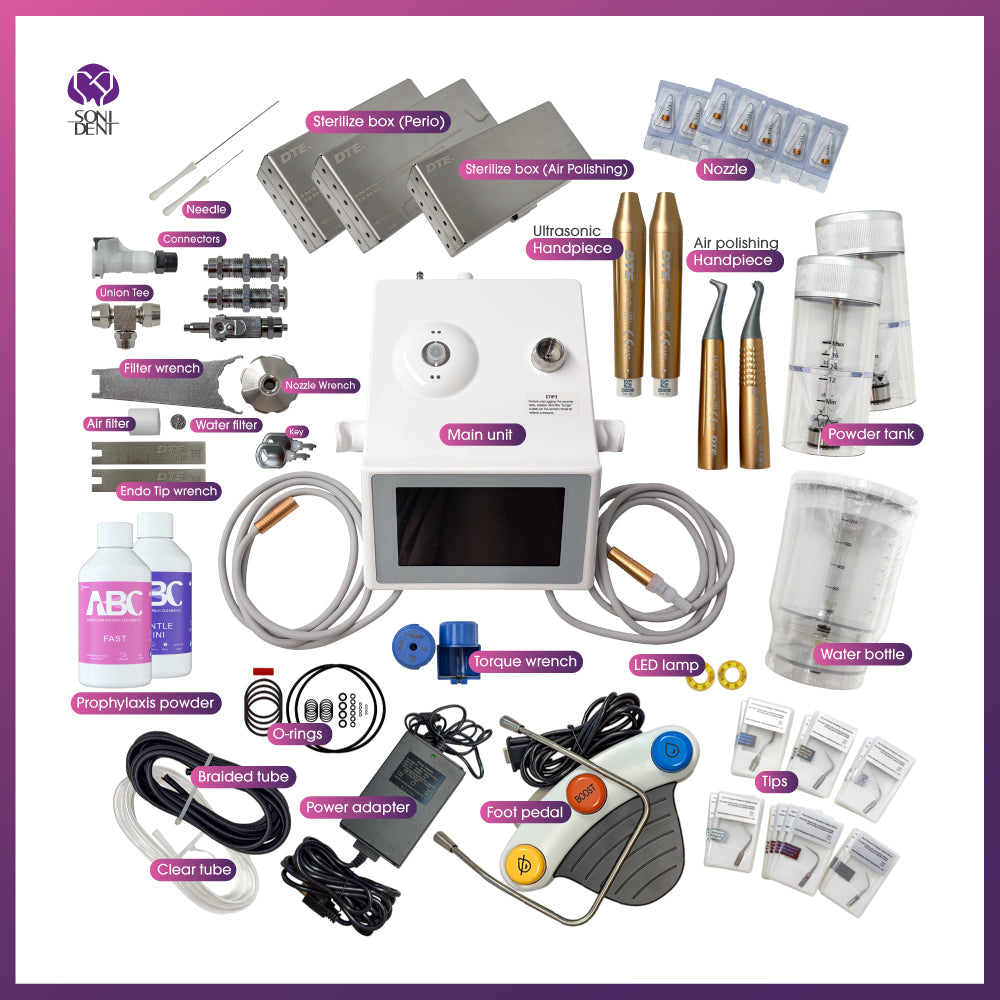

Packing List

1.Main unit x 1

2.Power adapter x 1

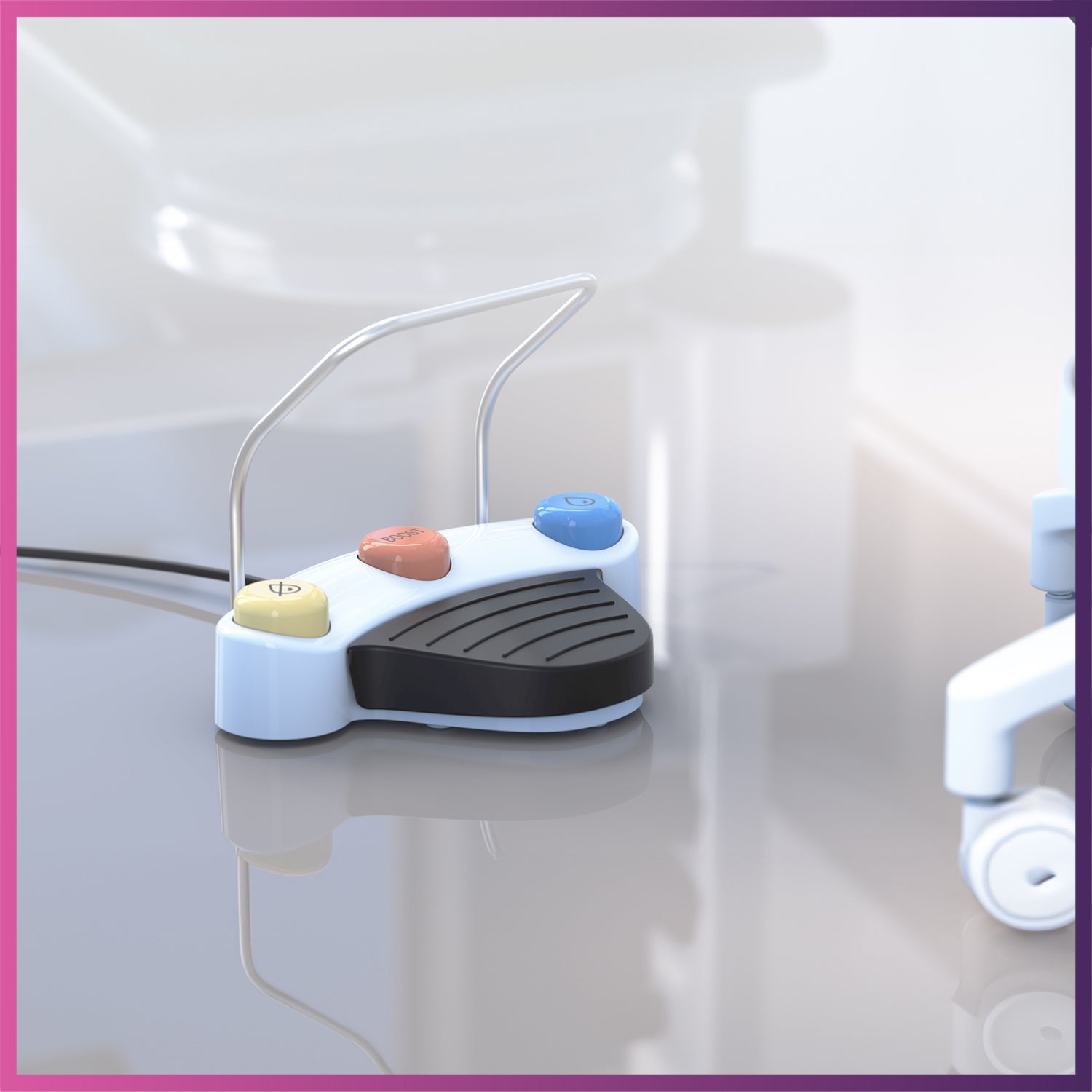

3.Foot pedal x 1

4.Ultrasonic handpiece x 2

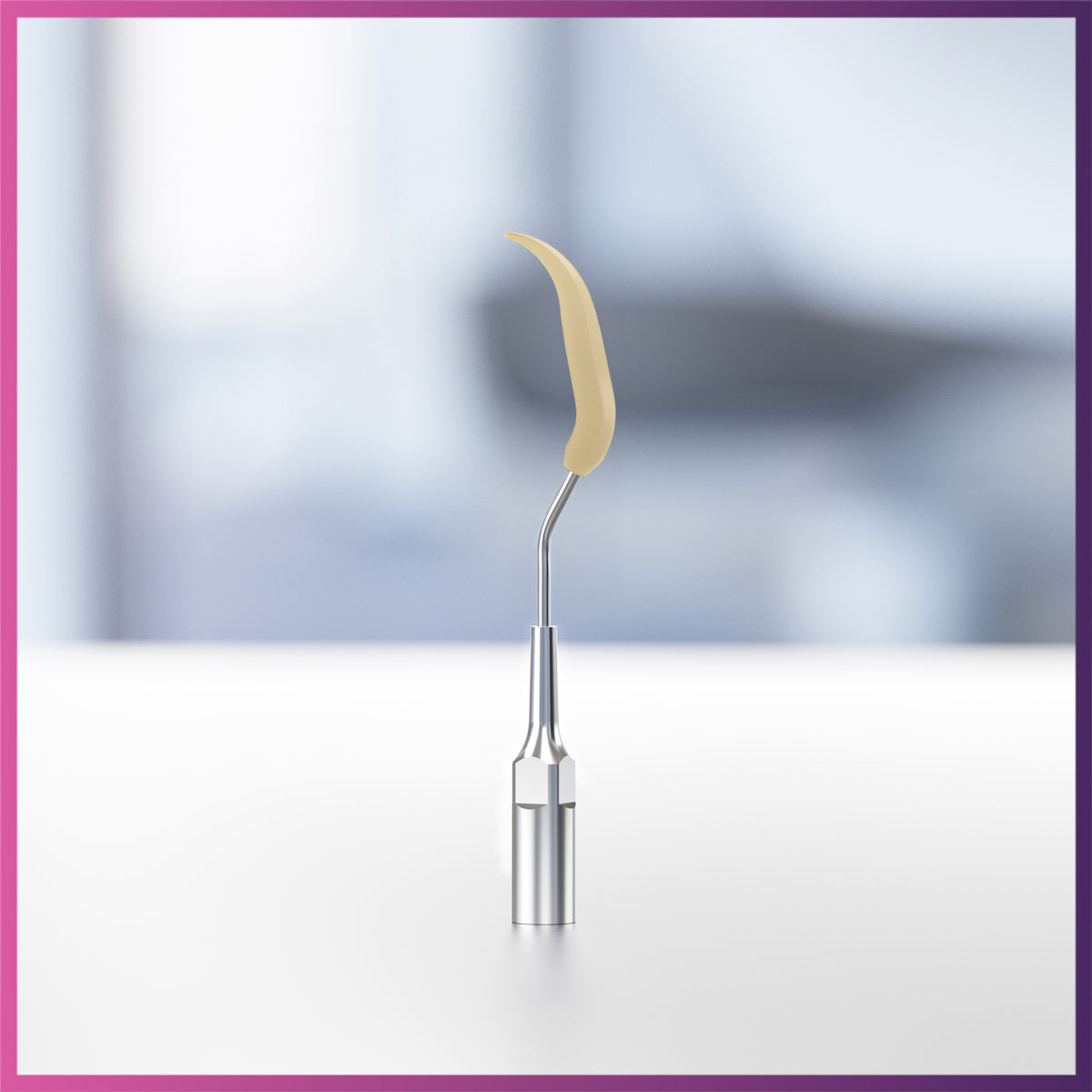

5.Tips P33x2, P50Lx2, P50Rx2, P56x2, P59x2, P94x1, P95x1, E60x2

6.Torque wrench x2

7.Air polishing handpiece (AP-1/AP-2) x2

8.Powder tank x2

9.Prophylaxis powder x2

10.Water bottle x2

11.Sterilize box x3

12.Braided tube x1

13.Needle x2

14.Filter wrench x1

15.Air filter x2

16.Water filter x1

17.O-rings

18.Rubber sealing element x1

19.Endo tip wrench x2

20.LED light x2

21.Union tee (8-8-6) x1

22.Female connector x2

23.Male connector x1

24.φ6 PU tube x1

25.PU tube(φ3.2xφ1.6x78mm) x3

26.Instruction manual x1

27.Tip instruction manual x1

28.Qualified certification x1

29.Packing list x1

30.Nozzle x1

31.Nozzle wrench x1

Warranty

Period validity:

Main Unit: 1 Year / Handpiece: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

  1. The damage caused by disobeying the operation instruction or lack of the needed conditions.
  2. The damage caused by unsuitable operation or disassembly without authorization.
  3. The damage on product that caused by users’ unexpected drop or impact to product.
  4. The damage caused by unadvisable transportation or preservation.
  5. There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Share this product

Share E-mail

Woodpecker / DTE Dental Scaler and Air Polisher PT- A

The Woodpecker / DTE PT-A Dental Scaler and Air Polisher is a versatile and advanced dental device designed for comprehensive periodontal treatment and root canal irrigation. This unit combines the benefits of both ultrasound and air polishing systems, ensuring effective removal of subgingival and supragingival calculus and plaque, promoting the health of periodontal tissue.

Five-in-One Solution:

  • Air Polishing: Efficiently removes stains and plaque for a brighter smile.

  • Periodontal Treatment: Provides thorough cleaning of periodontal pockets, supporting gum health.

  • Endodontic Treatment: Facilitates precision in root canal procedures, enhancing treatment outcomes.

  • Restoration Preparation: Prepares surfaces for restorative procedures with ease.

  • Implant Maintenance: Ensures gentle yet effective cleaning around dental implants, preserving their longevity.

Featuring an intuitive touch LCD screen, automatic mode switching, auto-preheating of the water, and a range of specialized tips, the PT-A unit ensures efficient, painless, and safe dental treatments. Built with high-quality materials, including a titanium alloy tip, it is designed for ease of maintenance and sterilization, making it an ideal choice for modern dental clinics.

Polisher Features:

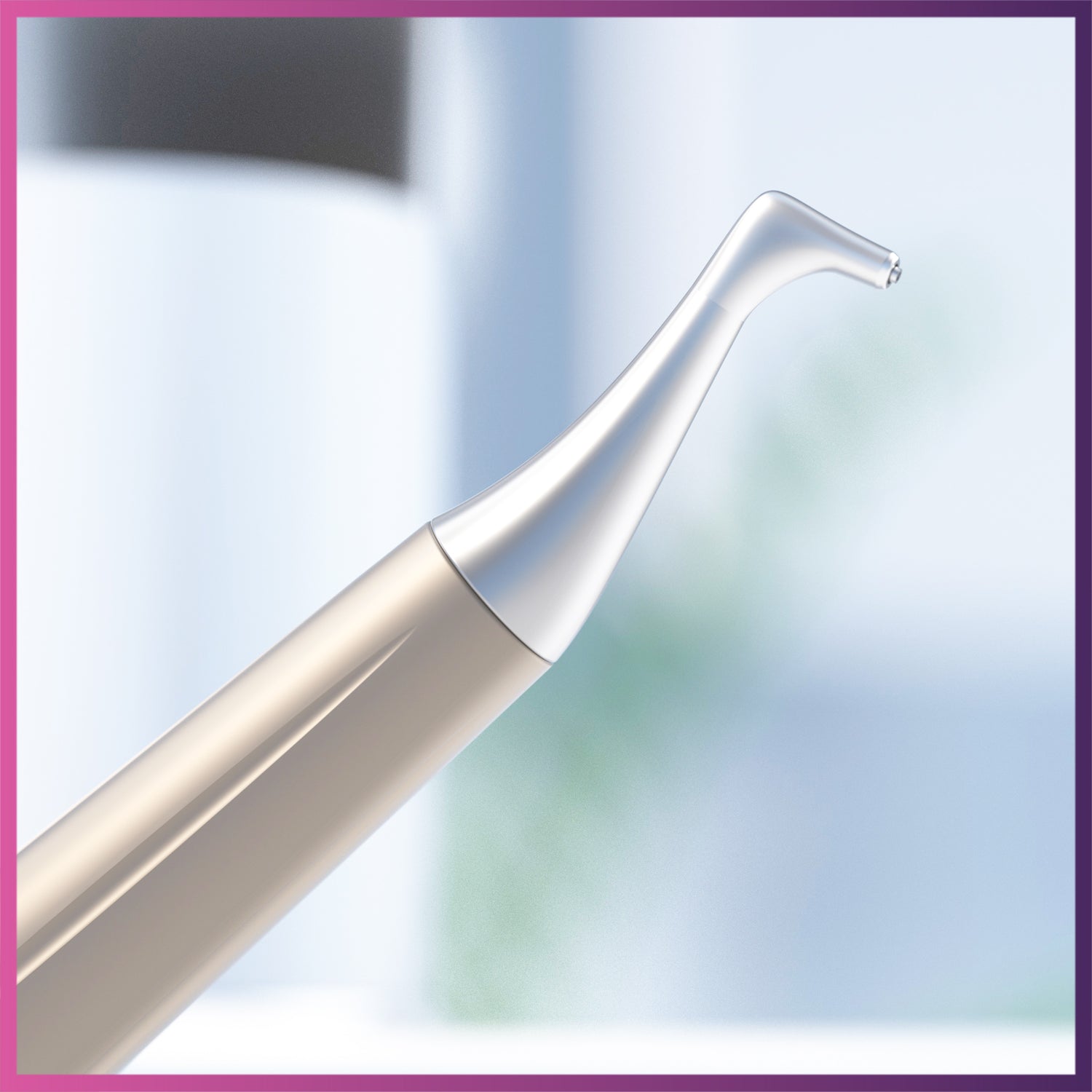

1. Air Polishing System:

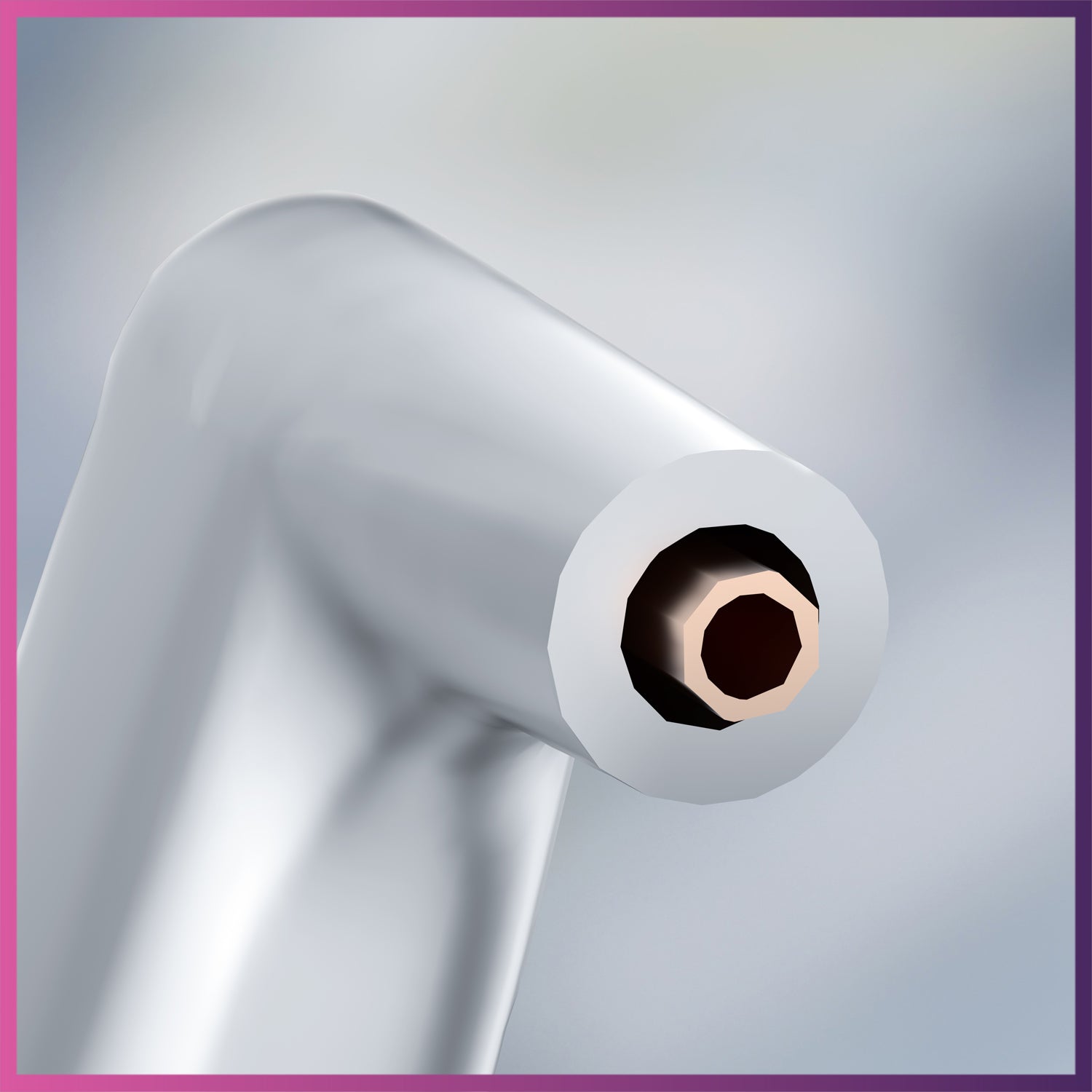

  • Small-caliber nozzle, more concentrated air polishing and more efficient plaque removal

  • Pick up the Air Polishing Handpiece to automatically enter the Air Polishing Mode

  • High concentricity of water and air path achieves a good coating of powder by water and reduces the flying of powder.

  • Utilizes air and polishing powder to effectively remove dental plaque, stains, and tartar.

  • Ideal for surface preparation before bonding, cementation of inlays, onlays, crowns, veneers, and orthodontic brackets.

2. Adjustable Air Pressure & Water Volume:

  • Customizable air pressure and water volume to enhance the cleaning and polishing effect.

  • Adjustable according to the teeth sensitivity and dental plaque condition.

3. Painless Treatment:

  • Features a rounded vibration trajectory for simultaneous treatment and polishing with minimal discomfort.

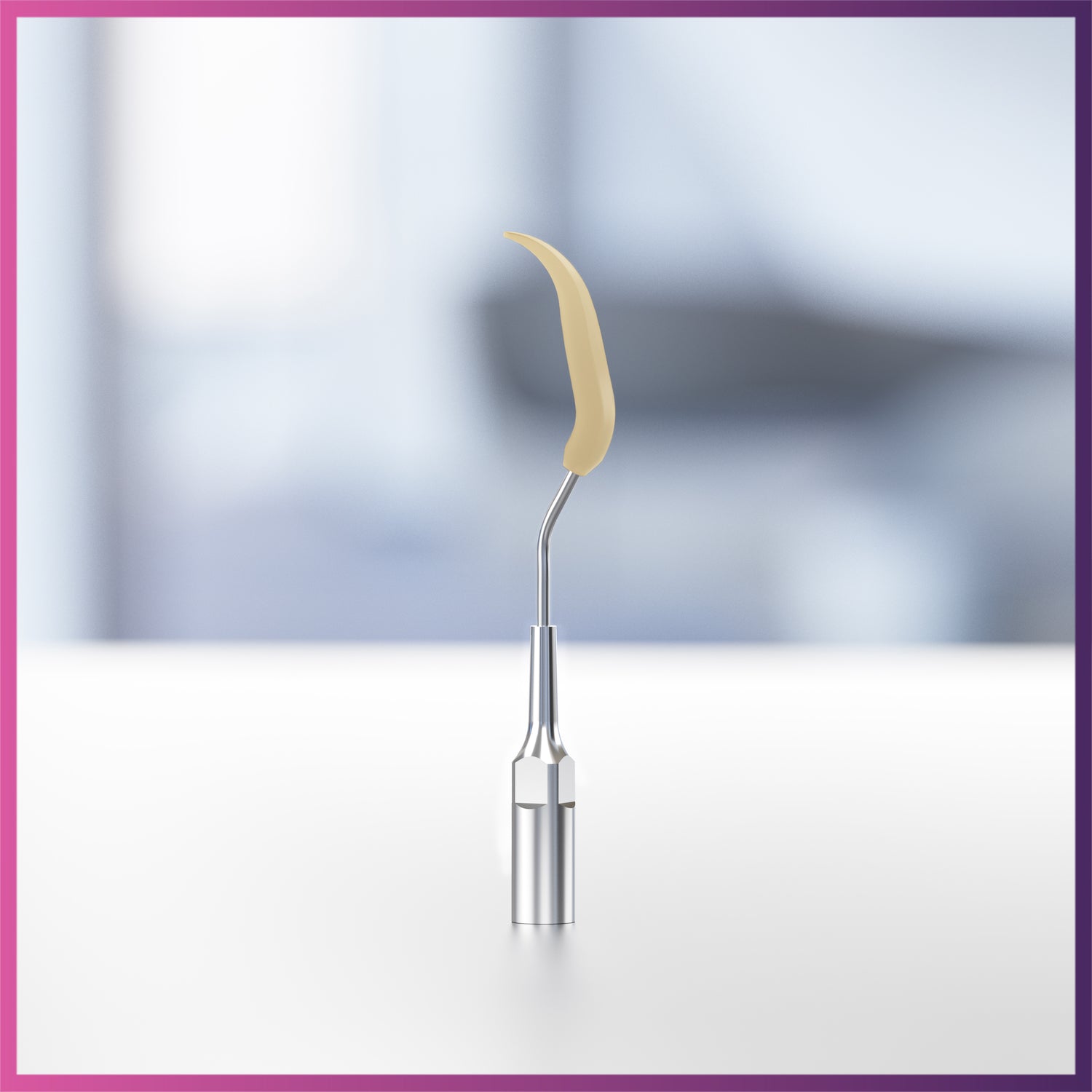

  • The titanium alloy tip is designed to avoid damaging the cementum or enamel.

4. Cleaning Mode:

  • Includes a special cleaning mode for flushing and disinfecting the unit’s pipes to reduce crystal accumulation and bacterial growth.

5. Ergonomic Design:

  • The three-piece design of the air polishing handpiece makes it easy to load, unload, and maintain.

6. Safety Features:

  • The handpiece nozzle should not be aimed at people, and proper protective gear, like goggles, should be worn during air polishing.


Scaler Features:

1. Ultrasonic Scaling System:

  • Pick up the Ultrasonic Handpiece to automatically enter the Ultrasonic Scaling Mode

  • Designed for the removal of supragingival and subgingival calculus and plaque.

  • Suitable for periodontal treatment, root canal irrigation, and other dental procedures.

2. Automatic Frequency Tracking:

  • Automatically adjusts to the optimal working condition for stable and efficient performance.

3. Detachable Ultrasonic Handpiece:

  • The handpiece can be detached and sterilized at high temperatures (up to 134°C) and pressures (0.22MPa) to ensure hygiene and safety.

4. Multi-Functionality:

  • Supports multiple dental procedures including scaling, endodontic treatment, and restorative procedures.

  • The power and vibration intensity can be adjusted based on the specific dental treatment being performed.

5. Integrated Water Supply:

  • Features an automatic water supply mode that can use various chemical solutions like hydrogen peroxide and sodium hypochlorite to improve clinical outcomes.

6. High-Efficiency Operation:

  • The system is fully automatic, controlled by a microcomputer for high efficiency and ease of use.

Installation Disclaimer:

SoniDent is not responsible for product installation. Most devices are easy to install with common parts included, but some setups may require specific connectors or technical assistance due to dental chair variations. While we don't provide installation services, we’re here to answer your questions and share our knowledge to help you through the process.




Here are some videos for your viewing. Enjoy!

PT-A Introduction

PT-A Installation

PT-A Maintenance

Quail Egg Scaling Test

PT-A PDF Catalogue

PT-A User Manual

1. What should I do if the tip does not vibrate and there is no water spray when I step on the foot pedal?
Check that the power supply plug and foot pedal are securely connected. If the issue persists, ensure the bracket switch has popped up properly. If these steps do not resolve the issue, contact your local distributor or manufacturer for further assistance.

2. The tip does not vibrate, but there is water spray. How can I fix this?
First, check if the tip is tightened correctly. If the tip is secure but the problem continues, there might be a loose connection inside the device, or the handpiece or tail cord may be faulty. In this case, contact your local distributor or manufacturer.

3. The tip vibrates, but there’s no water spray. What could be the issue?
Ensure the water volume adjustment knob is open. Verify that the water supply mode displayed on the screen matches the actual water supply. If the problem persists, clean the filter and check for clogs in the water line. If needed, contact your local distributor or manufacturer.

4. What should I do if water continues to spray after turning off the device?
This may be due to impurities in the solenoid valve. Contact your local distributor or manufacturer to address the issue.

5. The water temperature seems too high during use. How can I resolve this?
If the water temperature exceeds 45°C, there may be an issue with the thermocouple. Turn off the device and contact your local distributor or manufacturer for assistance.

6. My air polishing handpiece is leaking water. What can I do?
Check and replace the O-ring if necessary. If the issue persists, ensure there is no residue in the threads and that the powder tank is correctly assembled. If the problem continues, contact your local distributor or manufacturer.

7. The efficiency of air powder scaling has reduced. How can I fix this?
Ensure the powder tank is adequately filled. Clean the passage of any residue using a fine needle and blow it off with compressed air.

8. The touch panel is showing a message about a heating system failure. What should I do?
Immediately stop the heating function and turn off the device. Contact your local distributor or manufacturer to diagnose and repair the issue.

Cleaning FAQs:
9. What is the recommended process for cleaning the handpieces and accessories after a procedure?
The handpieces and accessories should be cleaned immediately after a procedure, preferably within 30 minutes. Rinse the handpieces and accessories with pure, distilled, or deionized water for 20-30 seconds to remove debris, then dry with a clean, soft cloth.

10. Can I use ultrasonic cleaning for the Ultrasonic handpiece?
No, ultrasonic cleaning is not recommended for the Ultrasonic handpiece. Instead, use automated or manual cleaning methods with appropriate cleaning agents.

11. What type of water should be used for cleaning the handpieces?
A: Use pure, distilled, or deionized water for cleaning the handpieces to avoid mineral deposits and ensure thorough rinsing.

12. How should I clean the handpieces if automated cleaning is not available?
Soak the handpieces and accessories in a multi-enzyme cleaning agent, then scrub with a soft cloth or brush. Rinse under running water (distilled or deionized) for at least 60 seconds each time, repeating the rinse five times. Dry thoroughly with a clean cloth.

13. What precautions should I take during the cleaning process?
Ensure the cleaning agent is compatible with the handpieces, use freshly prepared solutions, and keep the water temperature below 45°C to prevent protein solidification.

Disinfection FAQs:
14. What is the recommended timeframe for disinfecting the handpieces after cleaning?
Disinfection should be performed within 2 hours of completing the cleaning process.

15. Can I perform manual disinfection if automated disinfection is not available?
Yes, manual disinfection can be done by soaking the handpieces in 75% medical alcohol or a 2% glutaraldehyde solution, followed by rinsing with purified water and drying with filtered compressed air.

16. What are the key precautions for manual disinfection?
Ensure the disinfectant is compatible with the handpieces, use the correct concentration and contact time as specified by the manufacturer, and use freshly prepared disinfectant solutions.

17. Is it necessary to inspect the handpieces after disinfection?
Yes, always inspect the handpieces for cleanliness and damage after disinfection. If any stains or damage are found, repeat the cleaning and disinfection process.

18. What should I do if I don’t have access to an automated disinfection system?
If automated disinfection is not available, you can perform manual disinfection using recommended disinfectants like 75% medical alcohol. Ensure proper rinsing and drying after disinfection.
Sterilization FAQs:

19. What sterilization method is recommended for the handpieces?
Use steam sterilization with a fractional pre-vacuum procedure, adhering to the parameters specified in the device’s manual (e.g., 132-134°C, 2.0-2.3 bar pressure, for at least 4 minutes).

20. Can I use other sterilization methods, such as hot air or radiation sterilization?
No, only steam sterilization with a fractional pre-vacuum procedure is recommended. Hot air and radiation sterilization can damage the handpieces.

21. What precautions should I take before sterilizing the handpieces?
Ensure that the handpieces have been thoroughly cleaned and disinfected before sterilization. Read the sterilizer’s manual and follow all instructions carefully.

22. How should the handpieces be packaged before sterilization?
Place the handpieces in a medical sterilization bag that conforms to ISO 11607, ensuring it can withstand high temperatures and has sufficient steam permeability.

23. What is the maximum sterilization time allowed?
The maximum sterilization time at 134°C is 20 minutes. Do not exceed this limit to avoid potential damage to the handpieces.
