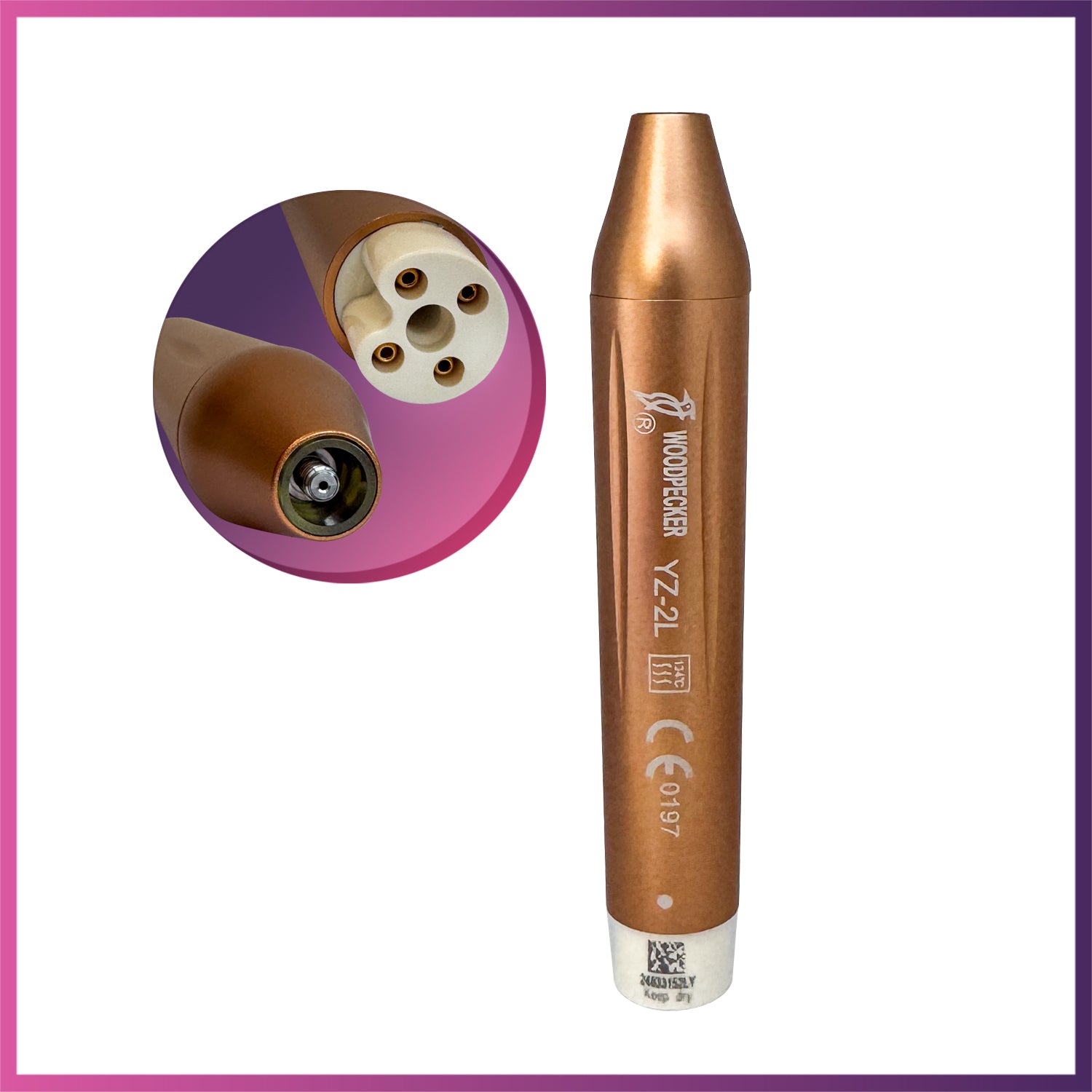

Woodpecker YZ-2L Ultrasonic Handpiece For PT-A / PT-B (Dental Scaler and Air Polisher)
Woodpecker YZ-2L Ultrasonic Handpiece For PT-A / PT-B (Dental Scaler and Air Polisher)
Click to open expanded view

Woodpecker YZ-2L Ultrasonic Handpiece For PT-A / PT-B (Dental Scaler and Air Polisher)

SKU: HA-AIR-PT5

Woodpecker (DTE)

Price
$550
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications
  • Length: 105 mm
  • Diameter: 18 mm
  • Weight: 53 g
  • Vibration frequency: 25 kHz – 35 kHz
  • Output power: 3W – 20W
  • Water pressure: 0.01 MPa – 0.5 MPa
Packing List
Warranty

Period validity:

Handpiece: 1 Year

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

  1. The damage caused by disobeying the operation instruction or lack of the needed conditions.
  2. The damage caused by unsuitable operation or disassembly without authorization.
  3. The damage on product that caused by users’ unexpected drop or impact to product.
  4. The damage caused by unadvisable transportation or preservation.
  5. There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Share this product

Share E-mail

Woodpecker Detachable Ultrasonic Handpiece for PT-A / PT-B Scaler and air polisher

The Woodpecker detachable ultrasonic handpiece is a high-quality, versatile accessory compatible with Woodpecker dental scaler units. Designed for efficient scaling and periodontal treatments, it offers precision, durability, and sterilization safety.

Specifications:

  • Length: 105 mm
  • Diameter: 18 mm
  • Weight: 53 g
  • Vibration frequency: 25 kHz – 35 kHz
  • Output power: 3W – 20W
  • Water pressure: 0.01 MPa – 0.5 MPa

Key Features:

  • Detachable Design: Easy to remove for sterilization and maintenance.
  • High-Temperature Sterilization: Can withstand sterilization at 134℃ and high pressure of 0.22 MPa.Handpieces
  • LED Illumination: Integrated LED light enhances visibility during procedures, staying illuminated for 10 seconds after use.
  • Ergonomic Grip: Pen-style grip ensures user comfort and control during operation.
  • Water-Cooled Operation: Features a cooling water spray system to maintain optimal performance and patient comfort.
  • Compatibility: Designed to work with Woodpecker ultrasonic scaler units, ensuring seamless functionality.
  • Durability: High-quality construction prevents damage during tip attachment or removal when used with Woodpecker tips.

Usage Instructions:

  • Compatible with Woodpecker tips for ultrasonic scaling and periodontal treatments.
  • Attach the desired tip using a torque wrench, ensuring a secure fit.
  • Operate using the device's foot pedal for precise vibration control.
  • Clean and flush the handpiece with pure or distilled water after each use.

Maintenance:

  • Flush the handpiece and tips for 20–30 seconds at maximum water volume after use.
  • Sterilize using appropriate methods and dry with a clean, soft cloth.
  • Ensure proper storage in a clean environment to maintain hygiene.

Compatibility:

  • Woodpecker Dental Scaler and Air Polisher PT-A / PT-B / AP-B.
  • Woodpecker Ultrasonic scaler PT-5 / U600 LED / U6 LED / UDS-N6



Here are some videos for your viewing. Enjoy!

Woodpecker YZ-2L Ultrasonic Handpiece-User Manual.pdf

1. What is the YZ-2L Ultrasonic Handpiece used for?

The YZ-2L is designed for periodontal therapy and endodontic cleaning, effectively removing supragingival and subgingival calculus and bacterial plaque during dental treatments.

2. Which devices is the YZ-2L compatible with?

It is an integral part of the Woodpecker PT-A Dental Scaler and Air Polisher series and is compatible with Woodpecker brand tips.

3. Does the YZ-2L have a lighting feature?

Yes, it features an LED lamp that illuminates the entire mouth, improving visibility during procedures. The LED lamp is replaceable and can be sterilized at high temperatures.

4. What are the main technical specifications?
  • Length: 105 mm
  • Diameter: 18 mm
  • Weight: 53 g
  • Vibration frequency: 25 kHz – 35 kHz
  • Output power: 3W – 20W
  • Water pressure: 0.01 MPa – 0.5 MPa
5. Who should not use the YZ-2L handpiece?

It should not be used on patients with hemophilia or heart pacemakers. Caution is advised for heart disease patients, pregnant women, and children.

6. How should the YZ-2L be cleaned and sterilized?

The handpiece and its accessories can be cleaned manually or with an automated washer-disinfector. Only steam sterilization (fractional pre-vacuum) is recommended, with a maximum temperature of 138°C and up to 600 sterilization cycles.

7. What should I do if the handpiece is not working properly?

Check if the tip is tightened, the cable is connected, and the water control switch is on. If issues persist, contact your dealer or the manufacturer for repair.

8. How do I maintain the YZ-2L handpiece?

Inspect for visible stains or damage after each use. Replace any damaged accessories and ensure all parts are cleaned, disinfected, and dried before reassembly.

9. What are the storage and transportation requirements?

Store in a clean, dry, ventilated area at -20°C to +55°C, with 10%–93% relative humidity. Avoid excessive shock, vibration, and exposure to sun, rain, or snow during transport.
