Replacement Battery for Woodpecker / DTE DPEX V Apex Locator

Original Woodpecker Battery

The Original Woodpecker Battery for the DPEX V Apex Locator is a reliable and efficient rechargeable lithium-ion battery designed to maintain precision and durability during endodontic procedures.

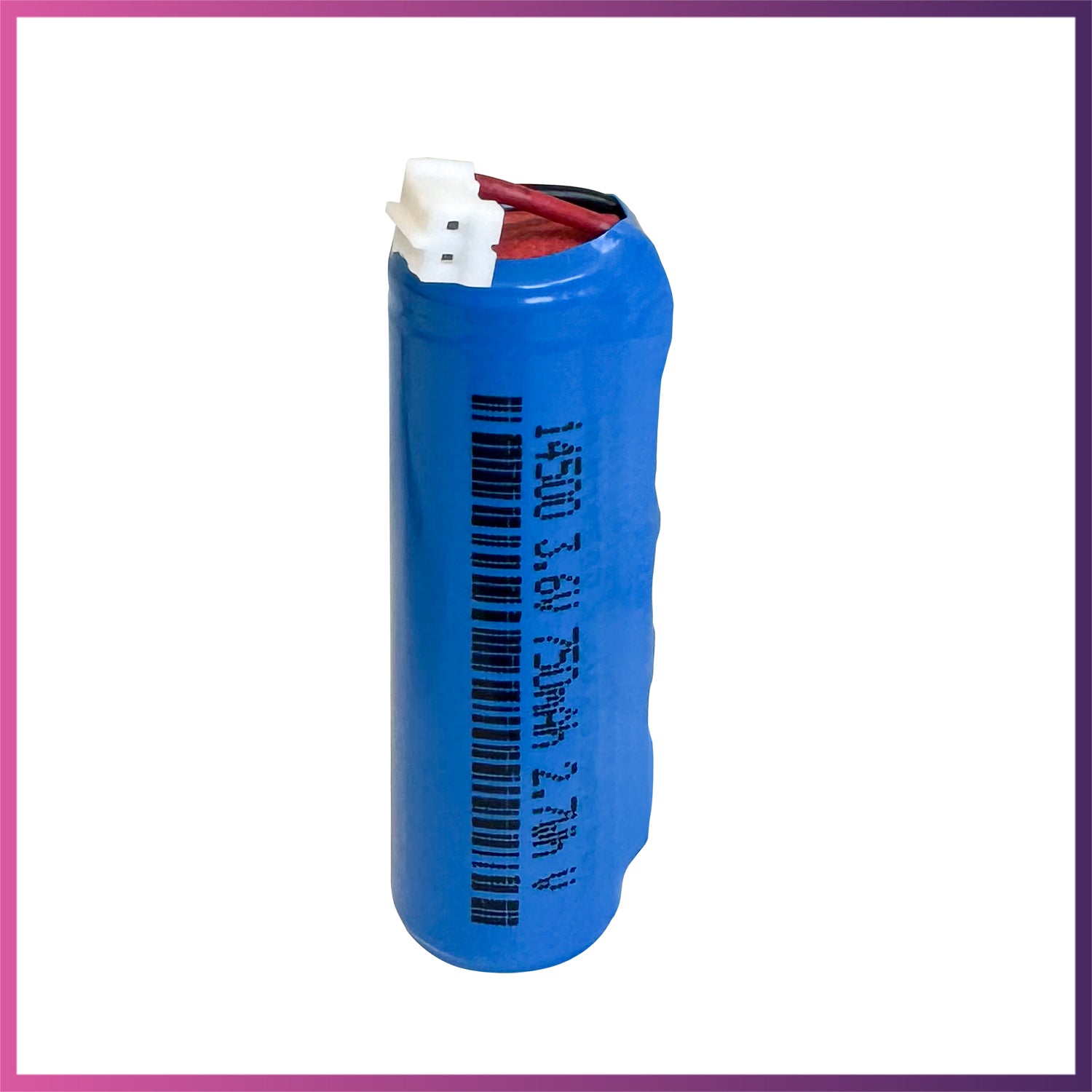

Battery Specifications

• Type: Rechargeable Lithium-ion Battery
• Model: 14500
• Capacity: 750mAh
• Voltage: 3.6V
• Adapter Input: 100V-240V~ 50/60Hz, 0.5-0.2A
• Adapter Output: 5.0V / 1A

Compatibility:

• Woodpecker Woodpex III / V
• DTE Dpex III / V

When to Replace the Battery

Replace the battery if:

• The device does not turn on even after charging.
• The runtime significantly decreases after charging.
• The battery shows visible damage or is not charging correctly.

Battery Replacement Instructions

1. Turn Off the Device:
• Ensure the DPEX V is powered off before beginning the replacement process.
2. Remove the Old Battery:
• Open the battery compartment cover.
• Disconnect and remove the old battery.
3. Install the New Battery:
• Connect the new battery and insert it securely into the compartment.
• Close the battery compartment cover.
4. Test the Device:
• Power on the device to ensure the battery is functioning properly.

Important: Only use original Woodpecker batteries to ensure safety and compatibility.

Charging Instructions

1. Set Up for Charging:
• Connect the adapter to the charging port on the device.
• Plug the adapter into a standard power outlet.
2. Charging Indicators:
• Yellow light on: Device is charging.
• Green light on: Charging is complete.
3. Charging Time:
• Full charge: Approximately 2 hours.
4. Safety Note:
• Do not operate the device while it is charging.
• Maintain a distance of at least 2 meters from the device during charging.

Battery Maintenance Tips

• Avoid Full Discharge: Recharge before the battery is completely drained to extend its lifespan.
• Storage: If not in use for a prolonged period, remove the battery to prevent damage.
• Recharge Periodically: Recharge the battery every 6 months if unused to maintain its functionality.

Additional Notes

• Use only the original Woodpecker adapter and components to ensure the best performance and avoid potential damage.
• Improper handling or replacement of the battery may lead to device malfunction or safety risks.
