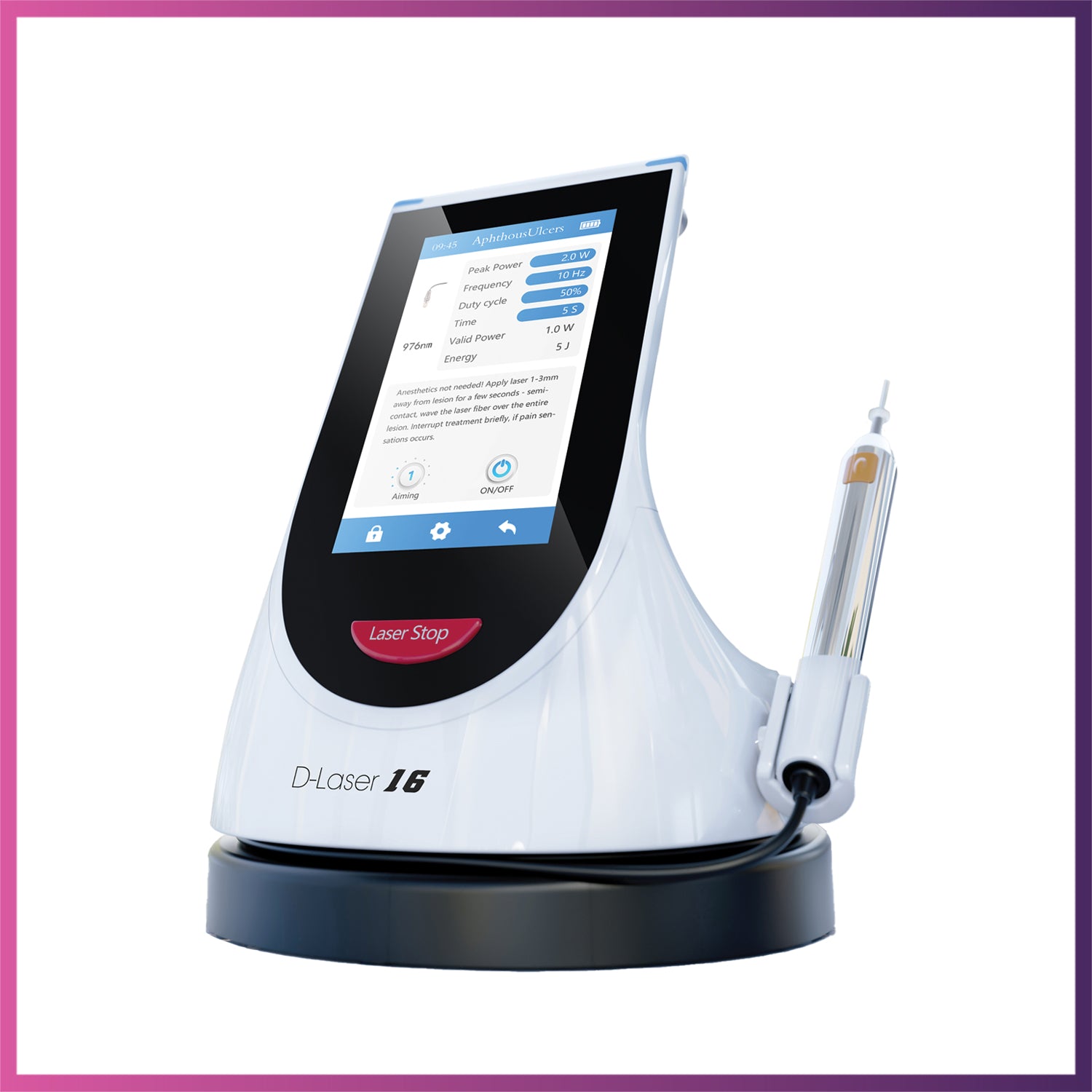

WoodPecker D-Laser 16 - Laser Therapy Device (LX16)

SKU: LAS-THE-DLA-16
Price
$5,770
Taxes and shipping calculated at checkout

Please be aware this is pre order

The products will be shipped to you once they become available
American Express
Apple Pay
Mastercard
PayPal
Shop Pay
Visa

Share this product

Share E-mail
Specification

Power adapter input：100-240Vac，50/60Hz，2.5A

Main unit input：15V 6.0A

Wavelength and power:

a）976± 20nm  0.2W-4W(CW), Peak Power 5W

     chopped 1Hz to 20KHz

     chopped mode:5us – 0.9S

b）650± 20nm ： 25mW-200mW(CW)

c）450± 20nm：  0.2W-3W(CW)

     chopped 1Hz to 20KHz

     chopped mode:5us – 0.9S

Laser classification:

a) 976 nm: Class 4

b) 650 nm: Class 2

c) 450 nm: Class 4

Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )

Aiming beam:   650 ± 20 nm /Pmax<5mW

Divergence: 12.7°(According to IEC 60825-1: 2014)

Rechargeable battery:   11.1V/2600mAh x2
(57.7Wh)

Time consumption for charging: about 4h (5 hours for first charging)

Diverging half angle: 0.22 mad/ 12.6 °

Size: 22 cm x 20cm x 23cm

Weight: 1.5kg

Packing List

1. LX16 Plus Laser x 1

2. MF2-14 Tips  x 2

3. MF2-20 Tip x 1

4. MF3-4 Tips x 3

5. MF3-9 Tips x 3

6. MF4-4 Tips x 3

7. Bending Tool x 1

8. Cutting Pen x 1

9. Remote Interlock Control x 1

10. Goggles x 3

11. Adapter x 1

12. Instruction Manual x 1

13. DT15 Tip x 1

14. DT20 Tip x 1

15. DT30 Tip x 1

16. B8 Tip x 1

17. Whitening Tip x 1

18. Articulating Paper x 1

Warranty

Main Unit: 2 Years / Handpiece: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

The damage caused by disobeying the operation instruction or lack of the needed conditions.

The damage caused by unsuitable operation or disassembly without authorization.

The damage on product that caused by users’ unexpected drop or impact to product.

The damage caused by unadvisable transportation or preservation.

There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Precision Laser Technology for Advanced Dental Care

The Woodpecker D-Laser LX16 brings cutting-edge laser technology to dental practices, offering exceptional performance with dual wavelengths (976 nm and 650 nm). It is a versatile solution for various dental applications, including soft tissue surgery, periodontal and endodontic therapy, pain relief, and teeth whitening. Its compact design and ergonomic features ensure seamless operation and superior patient outcomes.

 Key Features

  1. Dual Wavelength Technology
    • 976 nm Infrared Laser: Reduces bacteria and penetrates deep tissues for endodontic and periodontal sterilization, TMJ pain relief, and other therapeutic applications.
    • 650 nm Red Laser: Provides photo biomodulation (Low-Level Laser Therapy - LLLT) to promote wound healing and tissue regeneration.
  2. Enhanced Precision and Usability
    • Capacitive Touch Screen: A 5-inch intuitive interface allows easy access to pre-set programs and custom settings.
    • Ergonomic Handpiece: Lightweight, sterilizable, and designed for comfortable use with minimal fatigue.
  3. Versatile Applications
    • Soft tissue surgeries, periodontal and endodontic sterilization, TMJ therapy, teeth whitening, and more.
    • Includes specialized tips for a variety of treatments, such as whitening, bio-stimulation, and soft tissue applications.
  4. Safety and Convenience
    • Sterilizable fibre-optic tips and handpiece sleeves prevent cross-infection.
    • Built-in safety features, including automatic power shut-off after 5 minutes of inactivity.
    • Comes with protective laser goggles for practitioners and patients.
  5. Reliable Performance
    • Long-lasting lithium battery ensures extended use without frequent recharging.
    • Includes over 20 pre-programmed dental applications to streamline procedures.

 Benefits for Dentists

  • Improved Patient Comfort: Laser technology minimizes thermal damage, reduces swelling, and accelerates healing.
  • Ease of Use: Designed for user-friendly operation with pre-set treatment modes for common dental procedures.
  • High Durability: Engineered with premium materials to withstand frequent sterilization cycles.
  • Compact and Portable: Ideal for dental offices with limited space or practitioners who require mobility.

 Applications

  • Soft Tissue Surgeries: Accurate cutting and coagulation for minimally invasive procedures.
  • Endodontic Therapy: Efficient sterilization and root canal disinfection.
  • Periodontal Therapy: Reduces bacterial colonies in deep pockets, promoting better oral health.
  • Teeth Whitening: Effective whitening with minimal sensitivity using advanced laser tips.
  • Pain Management: Relief for TMJ disorders, aphthous ulcers, and burning mouth syndrome.

Here are some videos for your viewing!

Case: Dentine Hypersensitivity

D-Laser 16 User Manual

D Laser Catalogue

What wavelengths does the LX16 use?
The LX16 uses 976 nm infrared and 650 nm red lasers for various dental applications.

Can the LX16 be used for teeth whitening?
Yes, the LX16 is equipped with specialized tips and pre-set programs for effective teeth whitening.

Is the LX16 suitable for periodontal therapy?
Absolutely. The 976 nm wavelength is ideal for bacterial reduction in periodontal pockets.

How long does the battery last?
The LX16 is powered by a durable lithium battery that lasts for several days of normal use.

Are the components sterilizable?
Yes, the fiber-optic tips and handpiece sleeves are fully sterilizable for safe and hygienic operation.

Does the device have pre-programmed settings?
Yes, the LX16 includes over 20 pre-set applications, making it easy to start treatments without manual adjustments.

What safety features does the LX16 offer?
The device includes automatic shut-off, protective laser goggles, and sterilizable components to ensure safety.

How is the LX16 different from the LX16 Plus?
The LX16 Plus includes an additional 450 nm blue laser for enhanced precision and capabilities, which the LX16 lacks.

What procedures can the LX16 perform?
The LX16 can handle soft tissue surgery, endodontic therapy, periodontal sterilization, pain relief, teeth whitening, and wound healing.

Is the device portable?
Yes, the LX16 is lightweight and compact, making it easy to transport and ideal for small clinics.
