Woodpecker / DTE Ai Ray Lite X-Ray Machine
Woodpecker / DTE Ai Ray Lite X-Ray Machine
Woodpecker / DTE Ai Ray Lite X-Ray Machine
Woodpecker / DTE Ai Ray Lite X-Ray Machine
Click to open expanded view

Woodpecker / DTE Ai Ray Lite X-Ray Machine

Price
$3,850
Taxes and shipping calculated at checkout

Ships in 2 weeks
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Satispay
Shop Pay
Visa

Share this product

Share E-mail
Specification
  • Power Adapter Input: 100–240 V AC, 50/60 Hz, 2 mA
  • Internal Power Supply: DC 10.8 V


X-Ray Tube Specifications:

  • X-Ray Tube Model: D-045
  • Focal Spot: 0.4 mm
  • Target Angle: 12.5°
  • Total Filtration: 1.5 mm Al / 70 kV
  • Additional Filtration: 0.5 mm Al / 70 kV


Product Specifications:

  • Dimensions: 338 × 112 × 247 mm
  • Weight: 2.4 kg (5.3 lbs)





Packing List
  1. Main unit with backscatter shield x1
  2. Power adapter x1
  3. Connection Cable x1
  4. Exposure hand brake x1
  5. Instruction manual x1
  6. Qualified certificate x1
  7. Packing list x1

Warranty

Period validity:

Main Unit: 2 Years / Accessory Parts (wires, plugs): 6 Months / Consumables: No Warranty

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

- The damage caused by disobeying the operation instruction or lack of the needed conditions.

- The damage caused by unsuitable operation or disassembly without authorization.

- The damage on product that caused by users’ unexpected drop or impact to product.

- The damage caused by unadvisable transportation or preservation.

- There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

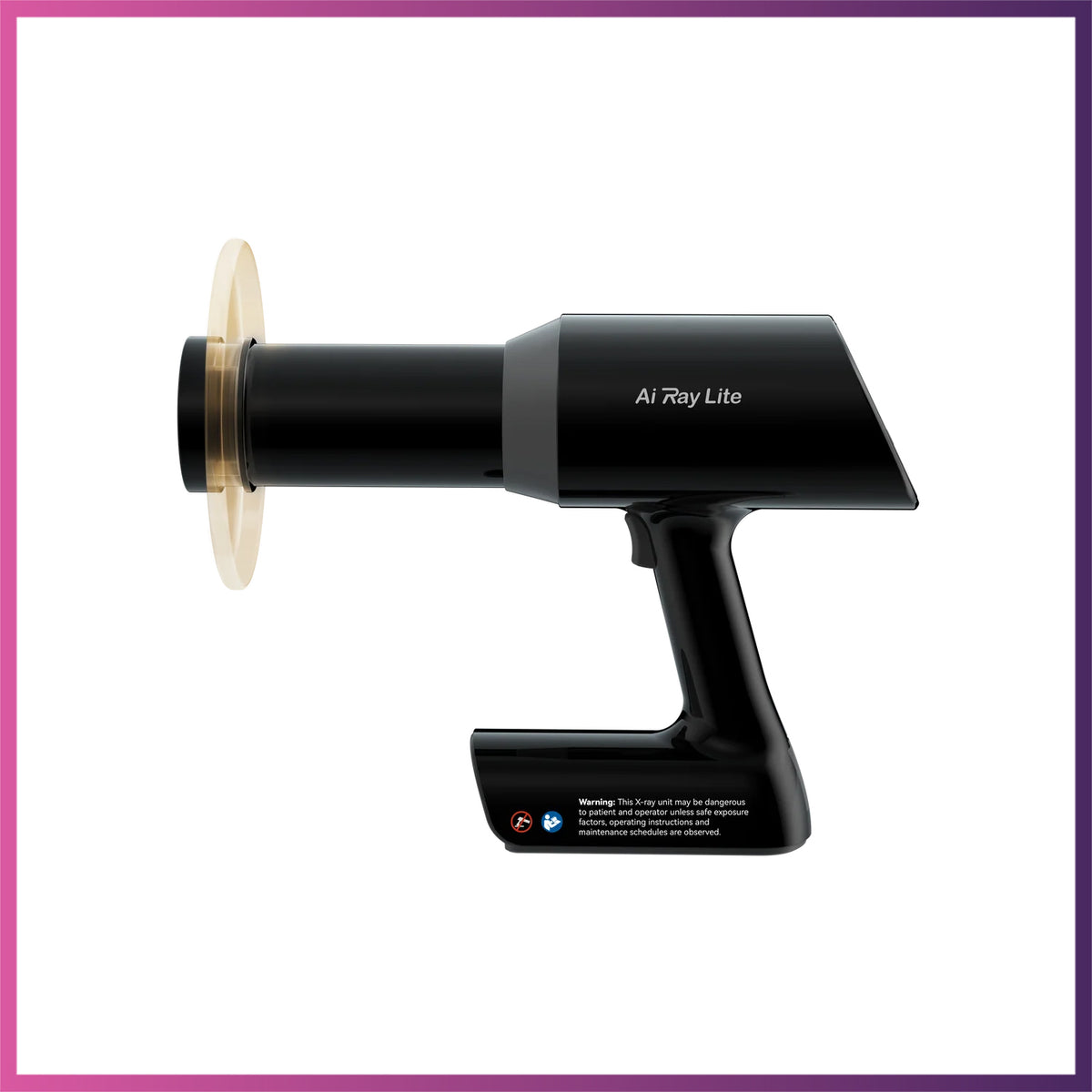

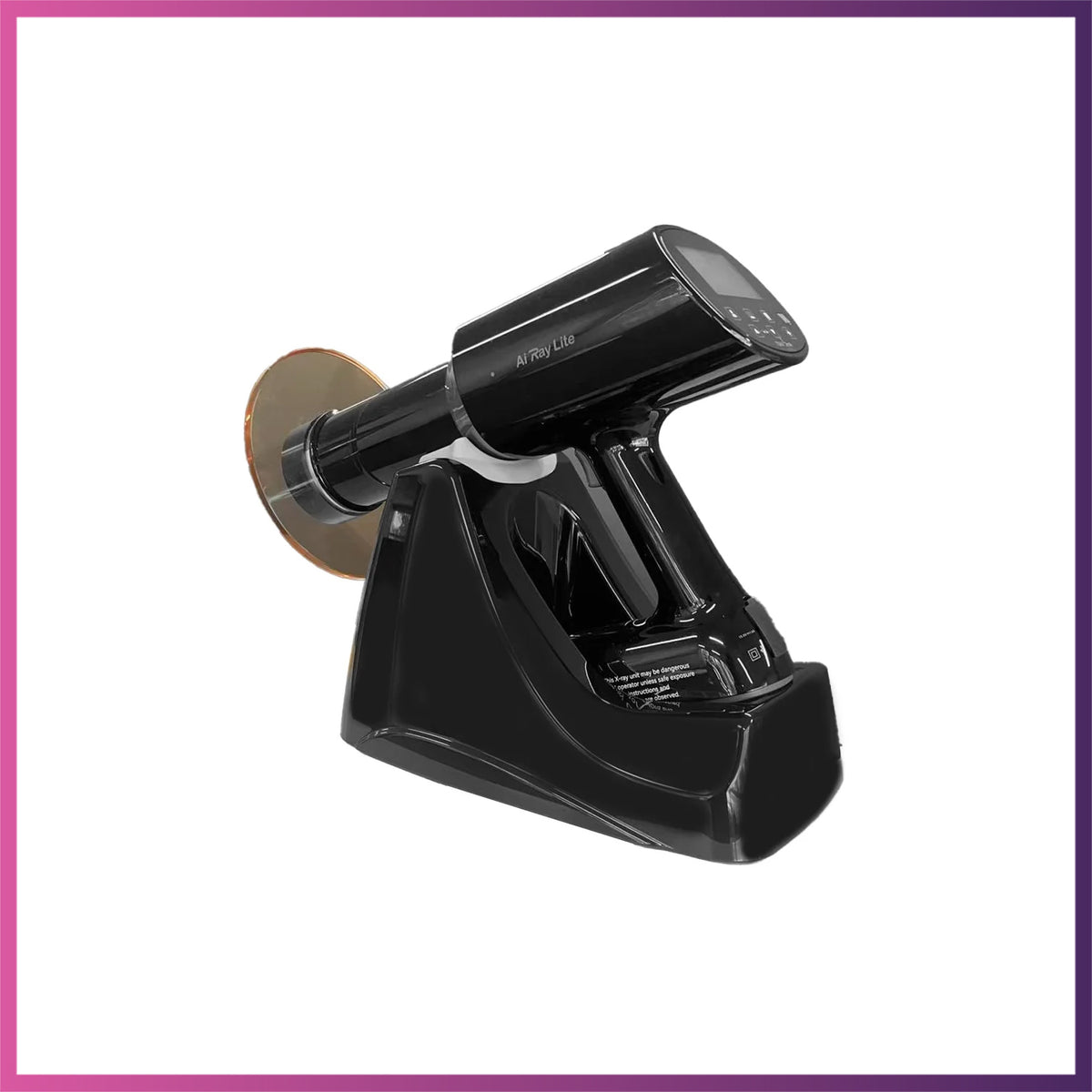

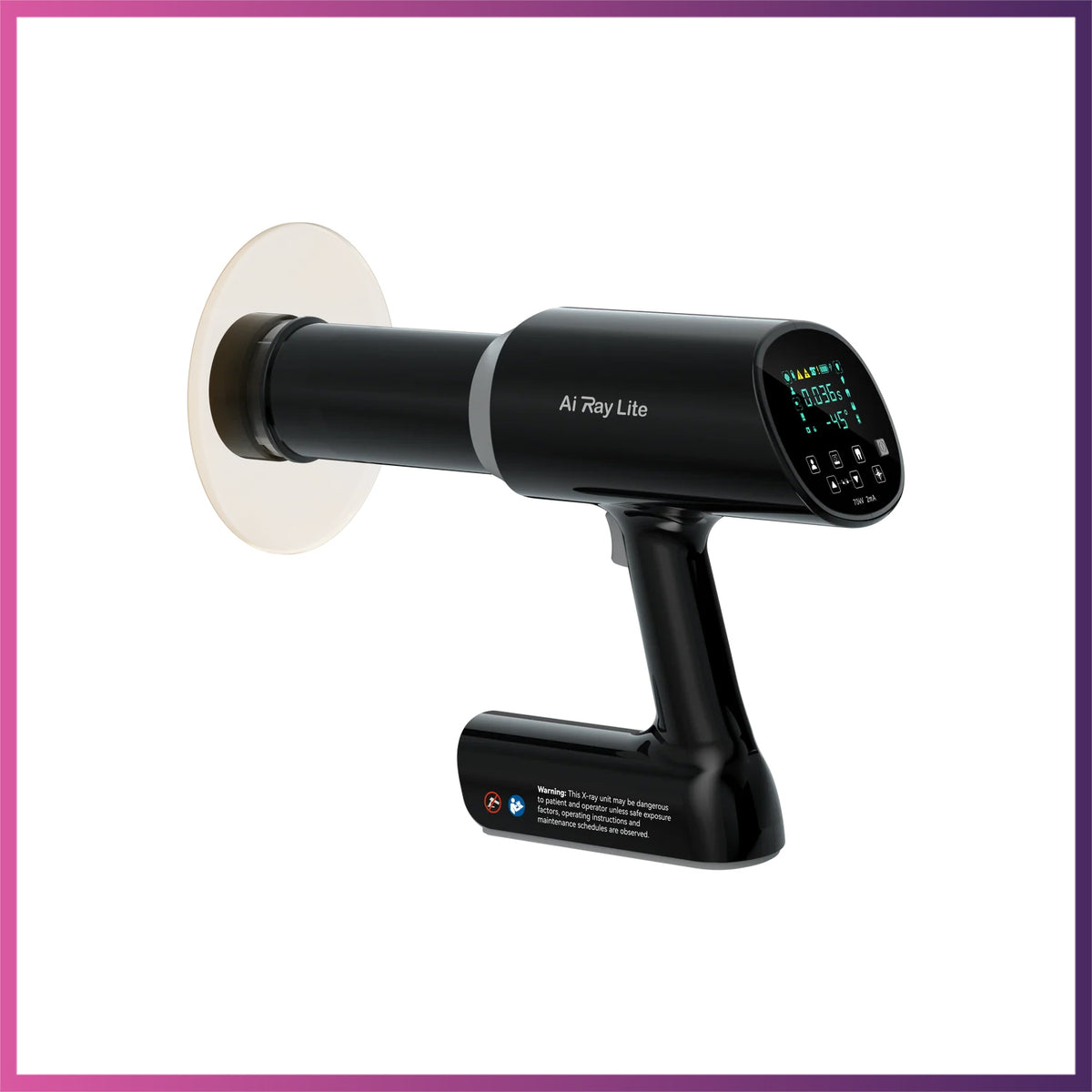

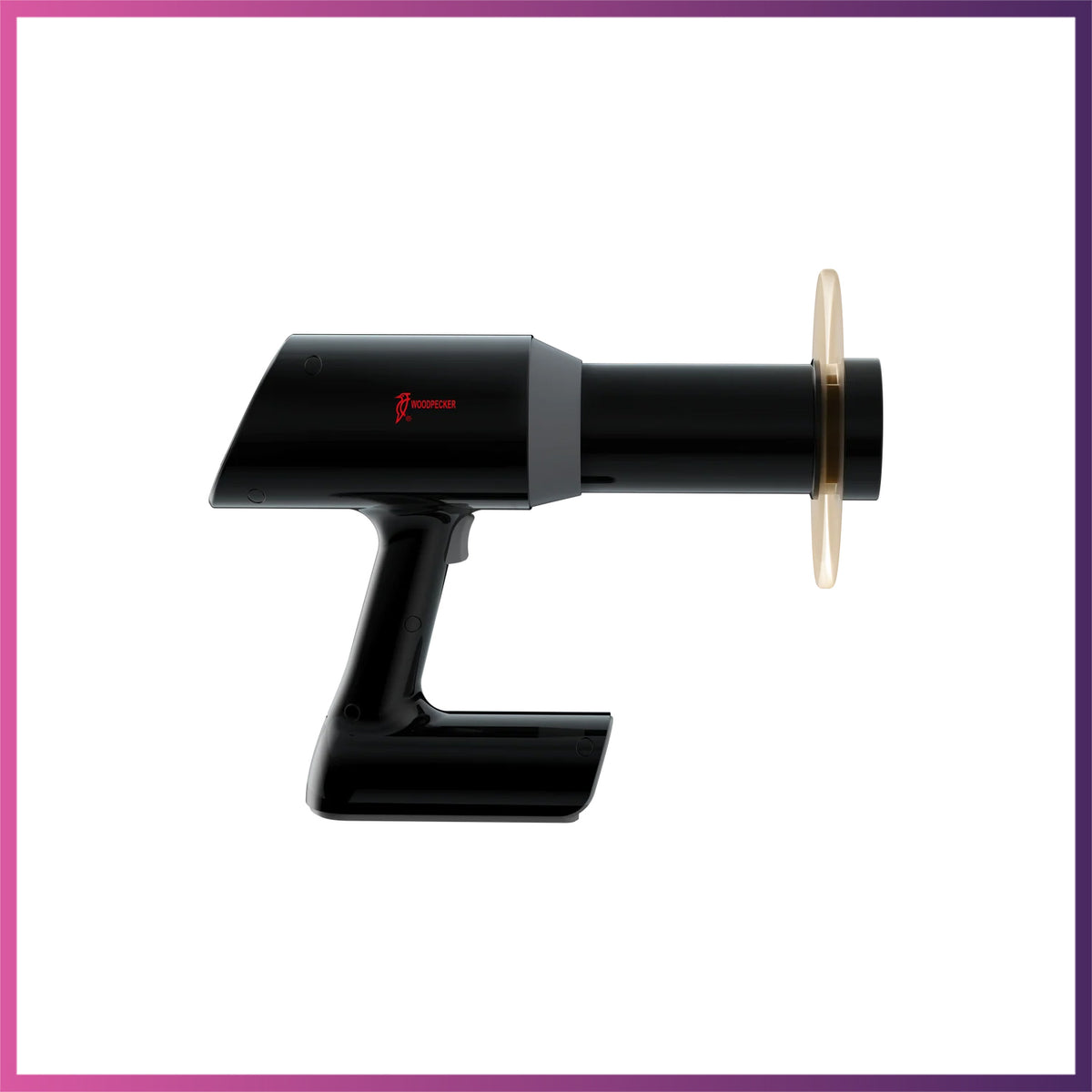

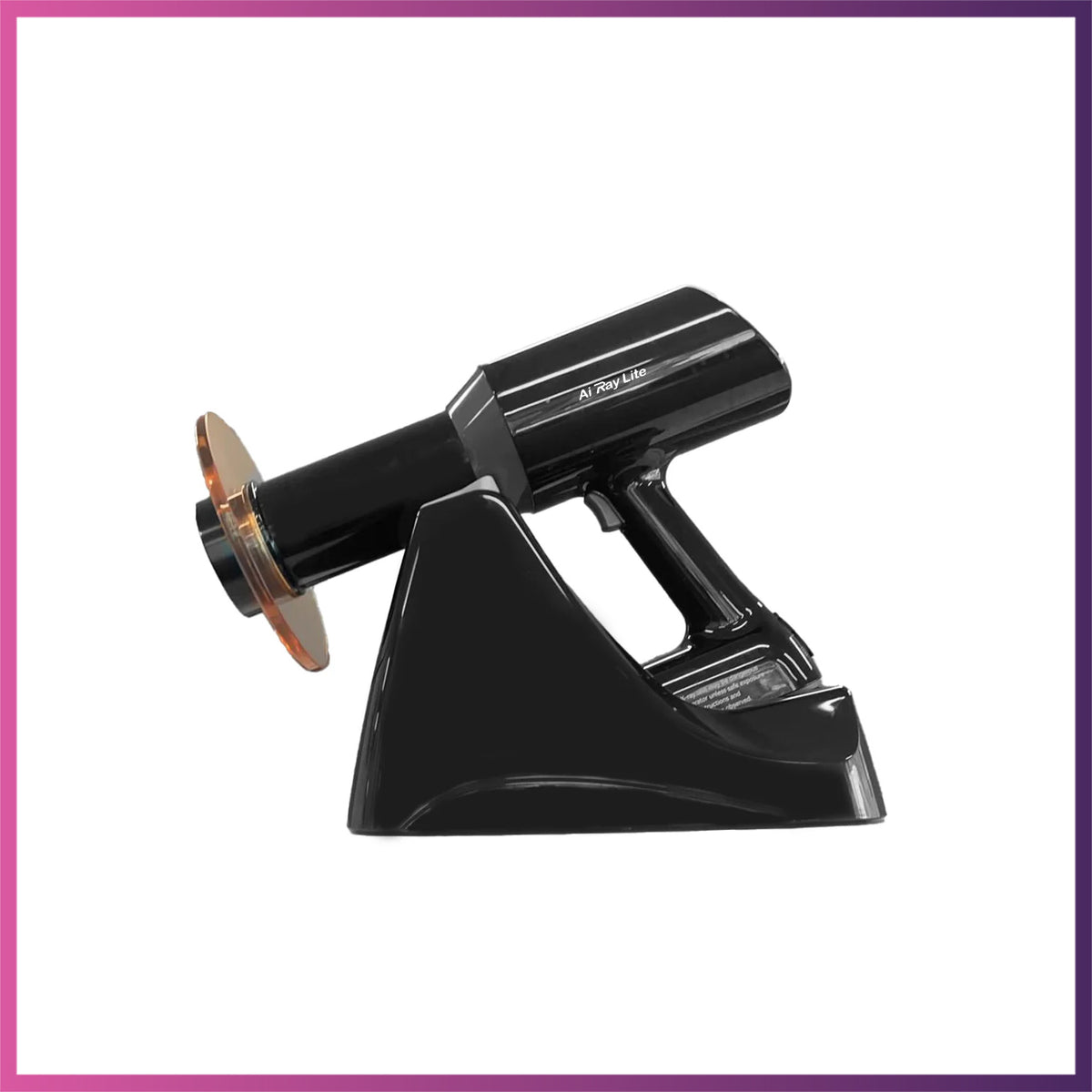

The Woodpecker / DTE Ai Ray Lite X-Ray Machine is a high-performance handheld dental X-ray system designed for efficient dental imaging. Featuring an imported Japanese Canon 0.4 mm high-frequency X-ray tube, emission power up to 140 W, and a 7500 mAh lithium battery for extended operation.

Key Features

  • High-Performance X-Ray Tube: Imported Japanese Canon 0.4 mm focal spot tube

  • High Emission Power: Up to 140 W for high performance and efficiency

  • High-Capacity Lithium Battery: 7500 mAh battery for extended operation

  • Portable Handheld Design

  • Reliable Power Supply: Supports 100–240 V input voltage

Specifications

  • Power Adapter Input: 100–240 V AC, 50/60 Hz, 2 mA

  • Internal Power Supply: DC 10.8 V

X-Ray Tube Specifications

  • X-Ray Tube Model: D-045

  • Focal Spot: 0.4 mm

  • Target Angle: 12.5°

  • Total Filtration: 1.5 mm Al / 70 kV

  • Additional Filtration: 0.5 mm Al / 70 kV

Product Specifications

  • Dimensions: 338 × 112 × 247 mm

  • Weight: 2.4 kg (5.3 lbs)



Here are some videos for your viewing!

Ai Ray Lite Unboxing Video
