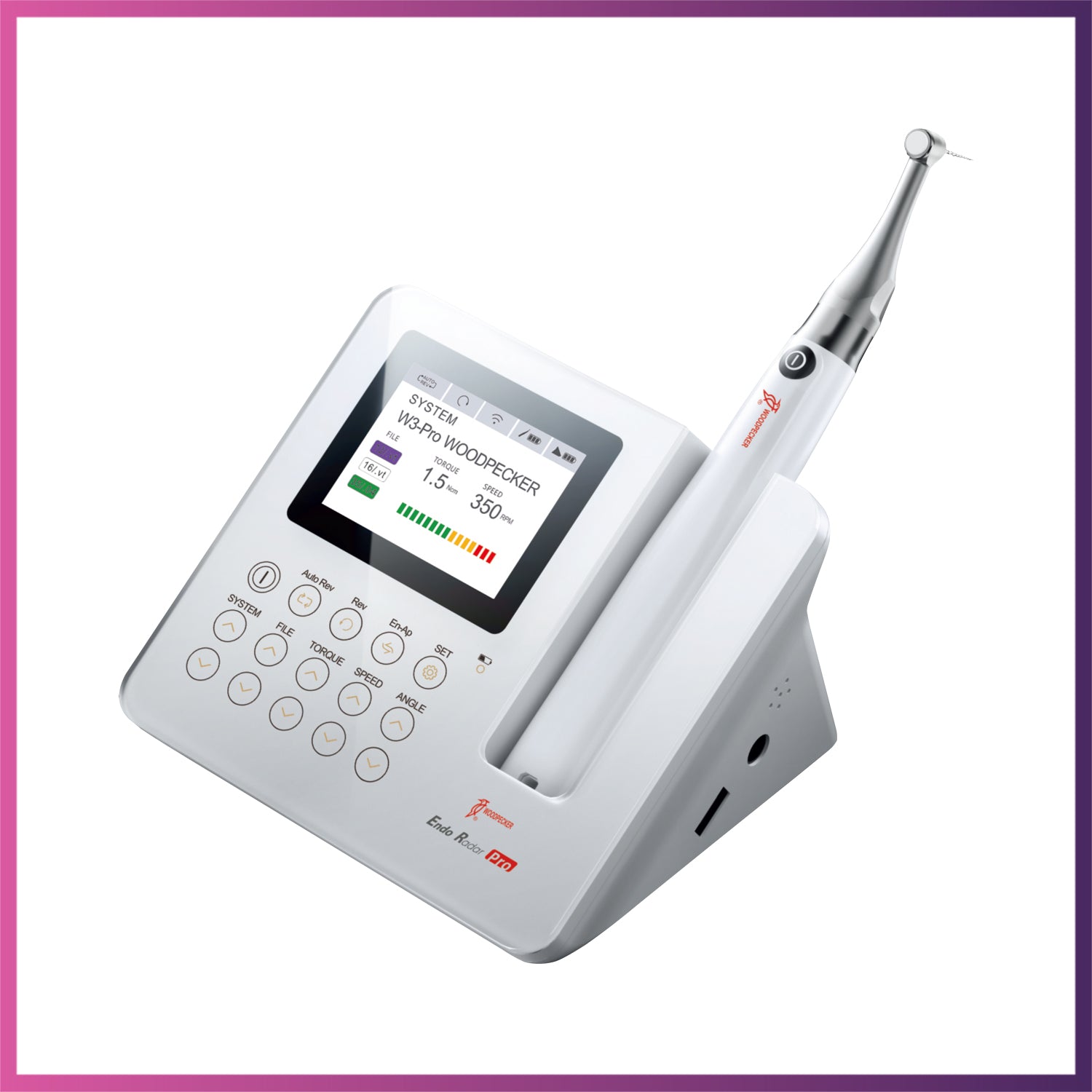

Woodpecker / DTE Endo Motor Endo Radar Pro

SKU: MOT-RAD-Pro

Woodpecker (DTE)

Price
$1,285
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications

Lithium battery in base: 11.1V/2600mAh
Lithium battery in motor handpiece: 3.7V/1200mAh
Power adapter: Input: ~100V-240V 50/60Hz 800mA
Output: DC15V/1.6A
Torque rang: 0.4Ncm~5.0Ncm(4mNm~50mNm)

Speed rang: 100rpm~2500rpm

Packing List
  1. Base *1
  2. Motor handpiece *1
  3. Protective silicon cover*2
  4. "O" ring*2
  5. Contra angle *1
  6. USB wire
  7. Spray nozzle lubricator *1
  8. Measuring wire *1
  9. File clip *4
  10. Disposable insulation sleeves*1
  11. Lip hook *2
  12. Touch probe *2
  13. Adapter *1
  14. Tester
  15. Instruction manual *1
  16. Qualified certificate *1
  17. Warranty Card *1
  18. Apex Locator troubleshooting Card *1
  19. Packing list *1
Warranty

Period validity:

Main Unit: 2 Years / Contra angle: 1 Year / Accessory Parts (wires, plugs): 6 Months /
Consumables: No Warranty
Range of warranty:
Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:
- The damage caused by disobeying the operation instruction or lack of the needed conditions.

- The damage caused by unsuitable operation or disassembly without authorization.

- The damage on product that caused by users’ unexpected drop or impact to product.

- The damage caused by unadvisable transportation or preservation.

- There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Woodpecker Endo Radar Pro vs Woodpecker Endo Radar Plus

While the Endo Radar Pro shares most of the core features of the Endo Radar Plus (cordless brushless motor, built-in apex locator, auto functions, ergonomic design), it introduces several refinements to enhance performance, control, and usability:

  • Adaptive Torque Reverse (ATR) mode: new in Pro, enabling dynamic torque-based switching to improve safety under load (not present in Plus).

  • Expanded speed & torque ranges: Pro offers a wider operating envelope (100–2500 rpm, 0.4–5.0 Ncm) to better match diverse file systems and clinical scenarios.

  • Enhanced file programming flexibility: Pro supports more user-defined files (rotary and reciprocating) and a more extensive file library for better customization.

  • Better protection & usage modes: Pro adds more refined safety limits (e.g. auto cooldown after 1 minute in combined mode) and more distinct operating modes (Motor-only, Apex-only, Combined) for clarity and safer switching.



Key Features:

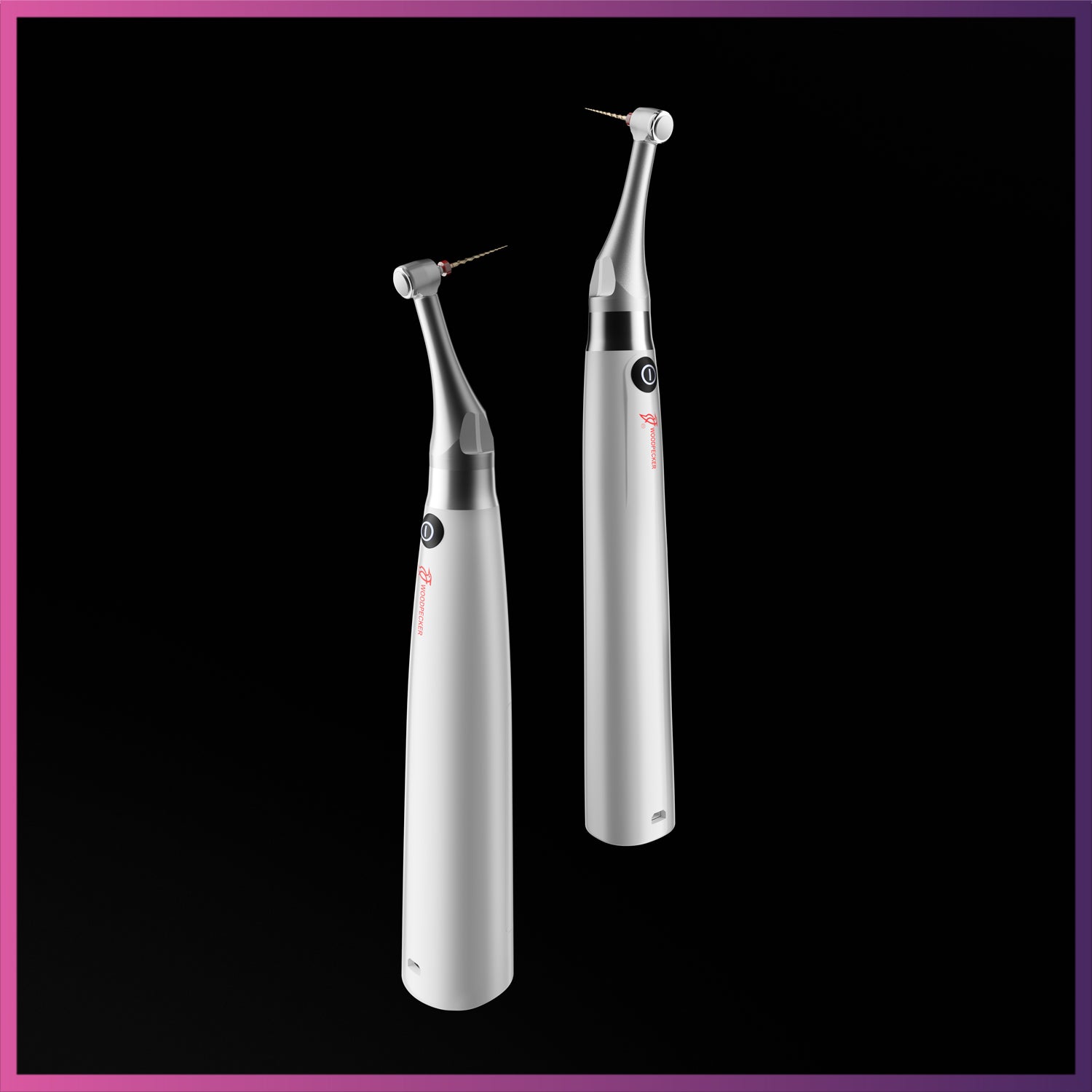

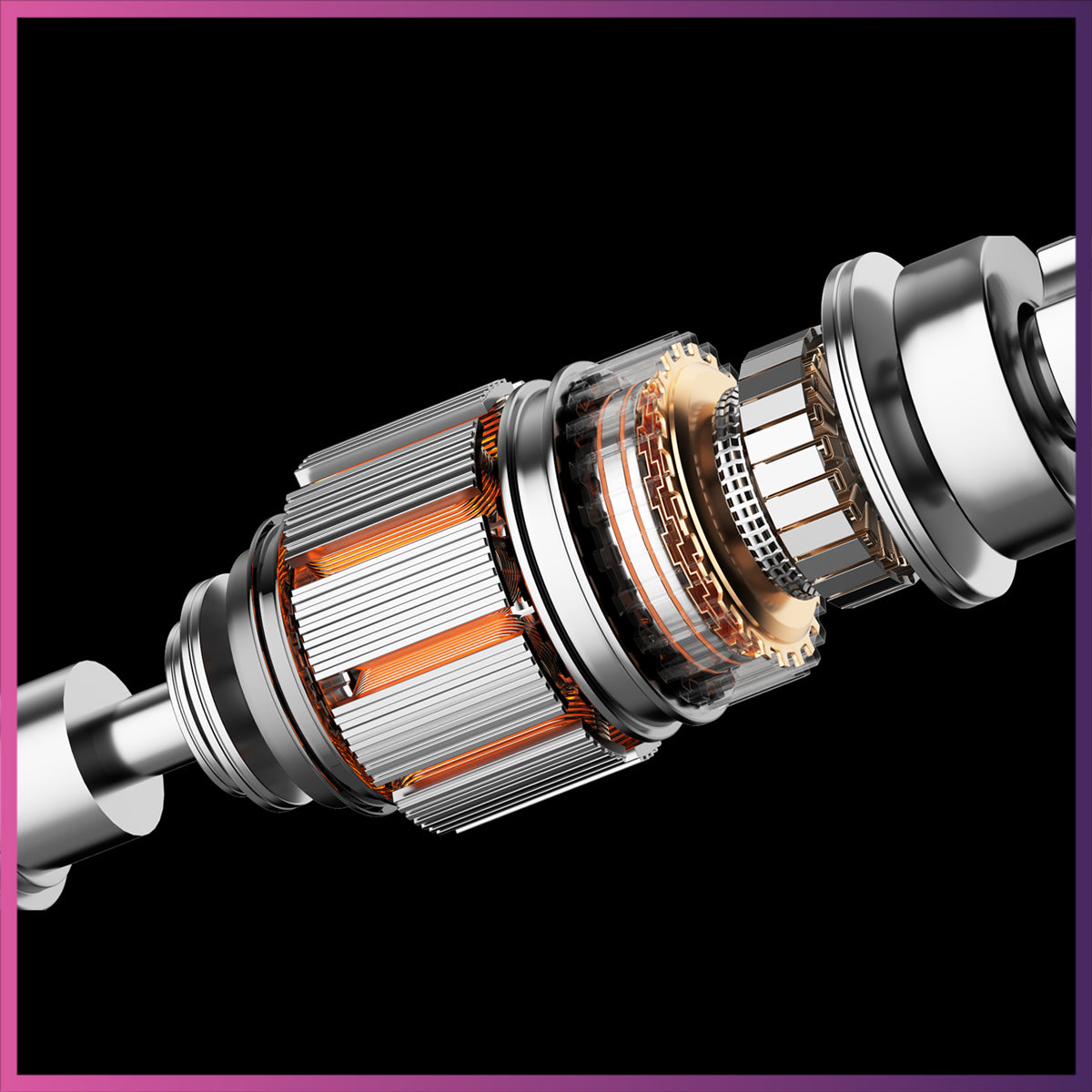

  • Cordless Brushless Motor: High torque and speed range (100–2500 rpm) with reliable performance.

  • Built-In Apex Locator: Provides accurate working length measurement with real-time display and auto apical functions (slowdown, stop, reverse).

  • Adaptive Torque Reverse (ATR): Automatically adjusts file motion when torque limits are reached, enhancing safety and reducing file stress.

  • Customizable Modes: Motor-only, Apex Locator-only, or Combined Mode for simultaneous canal preparation and length measurement.

  • File Library & User Programs: Pre-set NiTi file systems plus 8 customizable rotary and 3 reciprocating programs.

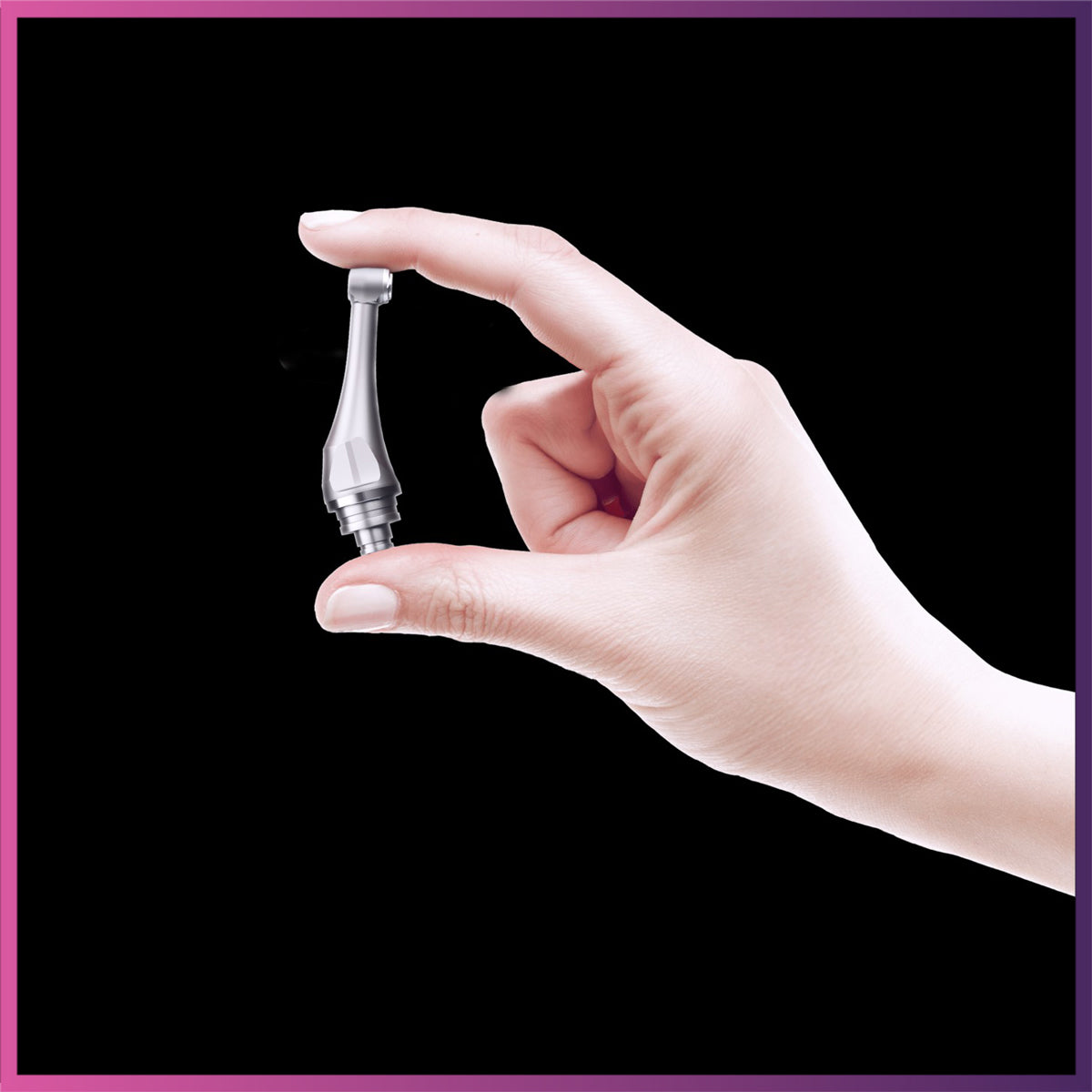

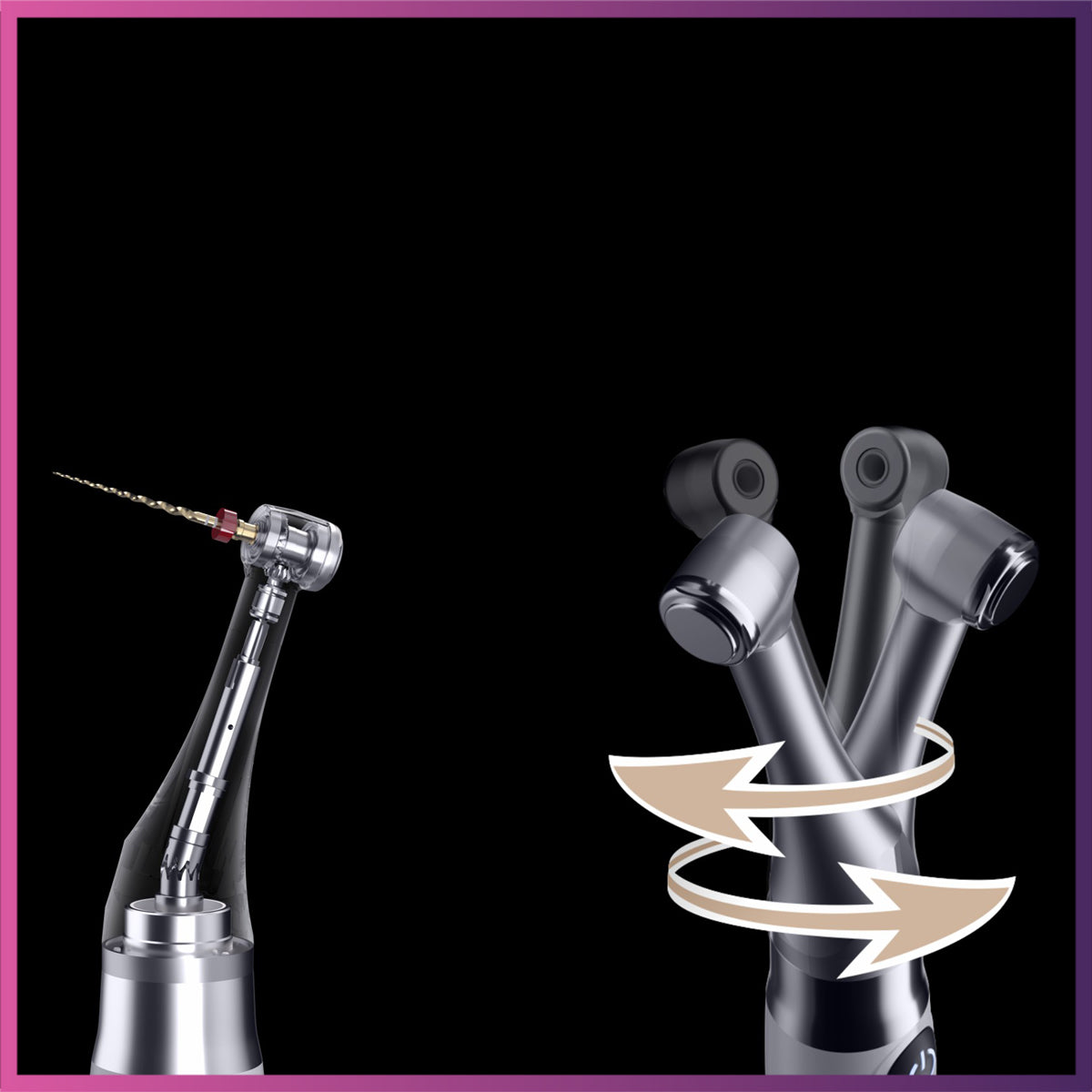

  • Ergonomic Contra-Angle: 360° rotation with protective silicon cover and precision 6:1 gear ratio for better access and control.

  • Auto Start & Stop: File rotation begins when entering the canal and stops upon exit for efficient operation.

  • Rechargeable Dual Battery System: 2600mAh base battery and 1200mAh motor handpiece battery with wireless charging.

  • Safety Protections: Overheat protection, torque control, and system alerts ensure safer clinical use.















Frequently bought together

Woodpecker / DTE Endo Motor Endo Radar Pro
Woodpecker / DTE Endo Motor Endo Radar Pro
This item: Woodpecker / DTE Endo Motor Endo Radar Pro
Price
$1,285
DiaDent Stainless Steel K-Files
DiaDent Stainless Steel K-Files
DiaDent Stainless Steel K-Files

8 / 0.02 / 21 mm

Price
$8.95
DiaDent DiaTemp
DiaDent DiaTemp
DiaDent DiaTemp
Price
$44.55
DiaDent DiaPaste
DiaDent DiaPaste
DiaDent DiaPaste

DiaPaste Regular Kit 2g paste+20 tips

Price
$52.87
DiaDent Dia-Root Bio Sealer
DiaDent Dia-Root Bio Sealer
DiaDent Dia-Root Bio Sealer
Price
$89
DiaDent Gutta Percha - Dia-Pro W Gold
DiaDent Gutta Percha - Dia-Pro W Gold
DiaDent Gutta Percha - Dia-Pro W Gold

Small

Price
$28.50
DiaDent Paper Points - Dia-Pro W Gold
DiaDent Paper Points - Dia-Pro W Gold
DiaDent Paper Points - Dia-Pro W Gold

Small

Price
$16.95
Silicon Cover for Woodpecker / DTE Contra-angle Handpieces
Silicon Cover for Woodpecker / DTE Contra-angle Handpieces
Silicon Cover for Woodpecker / DTE Contra-angle Handpieces
Price
$3.50
Replacement Battery for Woodpecker Endo Radar Plus Base and Handpiece, 1/Pk
Replacement Battery for Woodpecker Endo Radar Plus Base and Handpiece, 1/Pk
Replacement Battery for Woodpecker Endo Radar Plus Base and Handpiece, 1/Pk

Handpiece

Price
$25
Woodpecker / DTE Contra Angle for Endo Motors / CA161
Woodpecker / DTE Contra Angle for Endo Motors / CA161
Woodpecker / DTE Contra Angle for Endo Motors / CA161
Price
$399
Total price: $1,953.32

Compare with similar items

Woodpecker / DTE Endo Motor Endo Radar Pro
This item Woodpecker / DTE Endo Motor Endo Radar Pro
Woodpecker / DTE 812 MT - Endo Motor
Woodpecker / DTE 812 MT - Endo Motor
Woodpecker / DTE  Brushless Endo Motor -Yoshi Terauchi Ai Motor
Woodpecker / DTE Brushless Endo Motor -Yoshi Terauchi Ai Motor
Woodpecker / DTE Smart A Endo Motor
Woodpecker / DTE Smart A Endo Motor
Woodpecker / DTE Endo Free - Endo Motor
Woodpecker / DTE Endo Free - Endo Motor
Max Speed
1200rpm
2500RPM
2500rpm
2500RPM
1500RPM
Motor Type
Cordless, Brushless
Cordless + Brushless
Cordless + Brushless
Cordless, Brushless
Cordless, Brushless
Built-in Apex Locator
Yes
Yes
Yes
Integrated Apex Locator
No but can be connected to an Apex Locator
Customizable Reciprocating Angle
Yes, with Wave One Gold compatibility
Yes, with Wave One Gold compatibility
Yes, with Wave One Gold compatibility
Yes, adjustable 5°-400° angle
Yes, with Wave One Gold compatibility
Vibration Technology
No
Rotation + Vibration Technology
No
No
No
T-Mode (Ledge Bypassing)
No
Upgraded T-Mode+
Yes
Yes, with Block Bypass (BB) and Ledge Bypass (LB) Modes
No
Extra Contra-Angle
No
Yes, with vertical options
No
No
No
Torque Control
Yes
Yes
Yes
Yes
Yes
Max Torque
5.0Ncm
5.0Ncm
5.0Ncm
5.0Ncm
4.2Ncm
Auto Start & Stop
Yes
Yes
Yes
Yes
Yes
Auto Apical Reverse & Stop
Yes
Yes
Yes
Yes
Yes
Auto Apical Slowdown
Yes
Yes
Yes
Yes
Yes
Pre-set Programs
Yes, customizable
Yes, customizable
Yes, customizable
Yes, customizable + cloud storage
Yes, customizable
Wireless Foot Pedal
No
Yes
No
Yes, with voice control
No
Battery
2600 mAh lithium battery
2000mAh lithium
2000mAh lithium
2000mAh lithium with magnetic adsorption charging
850mAh lithium
Special Features
User-friendly interface, touchscreen
Dual action (Rotation + Vibration) for MTA compaction
T-Mode for safe ledge bypassing
Smart APP control, cloud data storage, voice control
Lightweight handpiece, 10x brush motor life
Price
$1,285.00
$2,999.00
$2,197.00
$2,360.00
$695.00
