Woodpecker / DTE Master Ray

SKU: XRA-MAS-RAY

Woodpecker (DTE)

Price
$3,000
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications

Power adapter input:
Power adapter model: UES48-150320SPA1
Power input: 100-240V~ 50/60Hz 1.1A
Internal power supply: DC 10.8V
Power adapter output: DC 15.0V 3.2A
Total filtration: 1.5mmAl/70 kV
Permanent filtration: 1.0mmAl/70 kV
Additional filtration: 0.5mmAl/70 kV
Distance from focal spot to skin: 20~23cm
Output radiation field: Φ5.9cm±0.1cm

Packing List
  • 1 × Master Ray Portable X-Ray Generator
  • 1 × Power Adapter & Cable
  • 1 × Wired Hand Brake (optional)
  • 1 × Wireless Hand Brake (optional)
  • 1 × User Manual
Warranty

Period validity:

Since the date of sales, with the warranty card, we are responsible for free repair of main unit for two years.

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

  • The damage caused by disobeying the operation instruction or lack of the needed conditions.
  • The damage caused by unsuitable operation or disassembly without authorization.
  • The damage caused by unadvisable transportation or preservation.
  • There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Share this product

Share E-mail

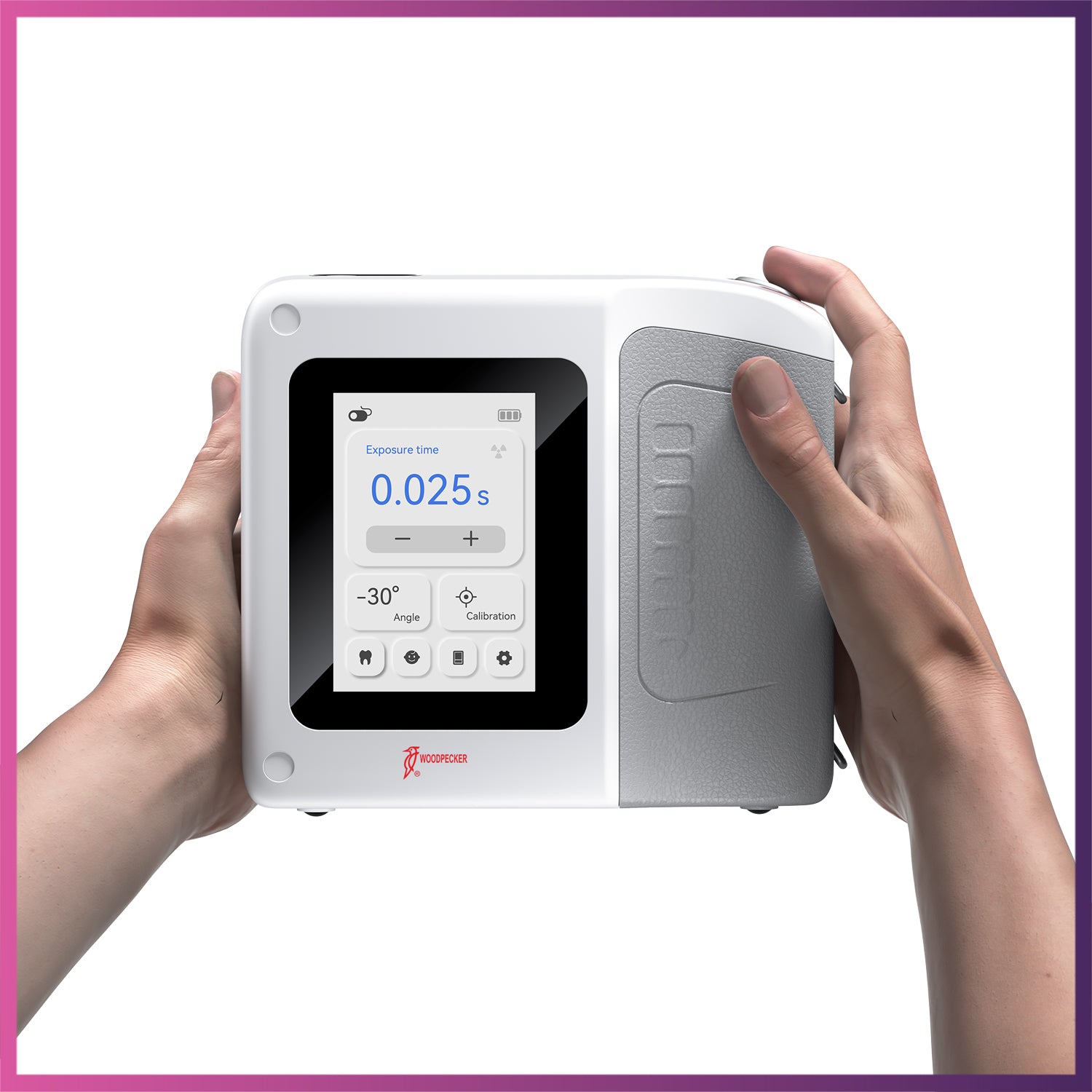

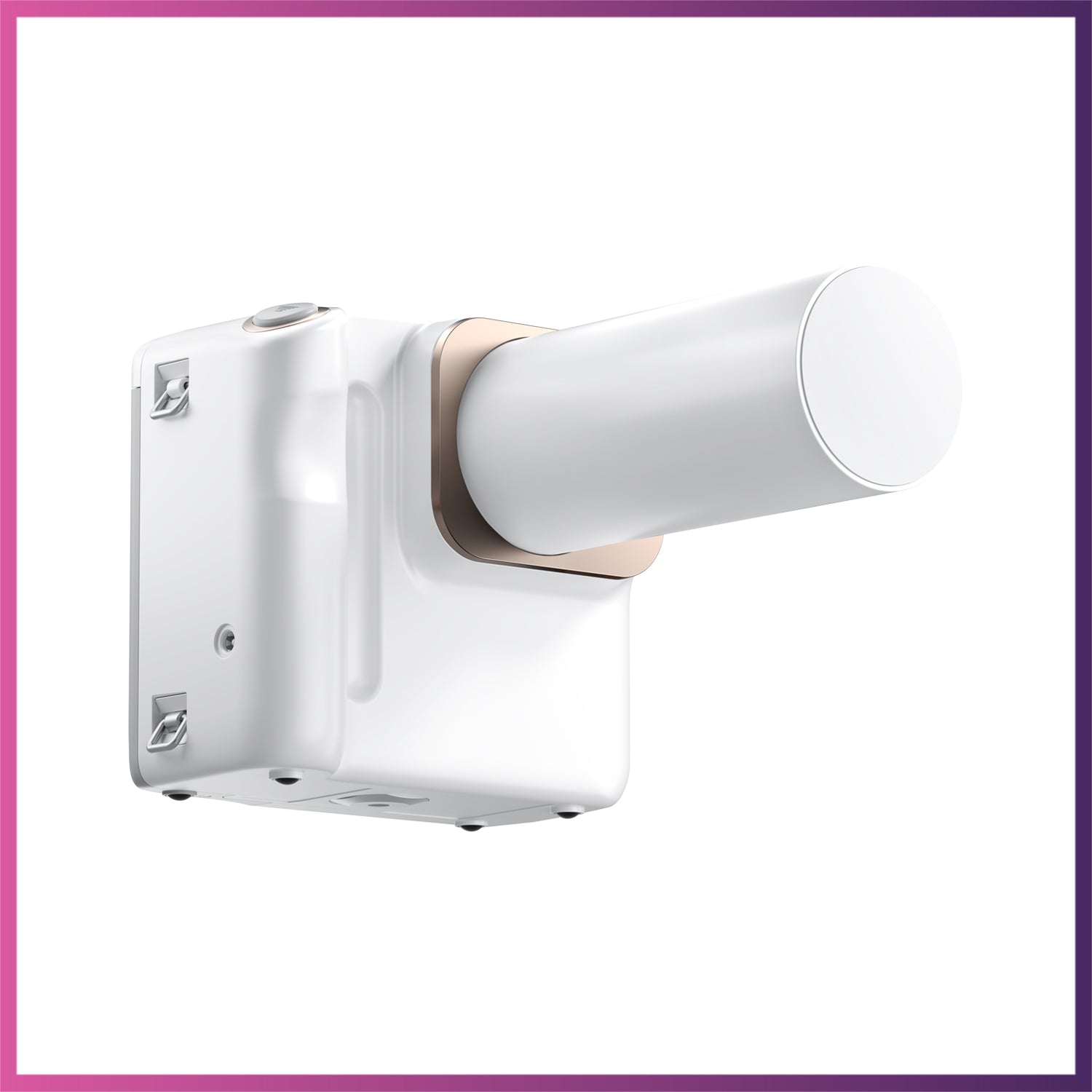

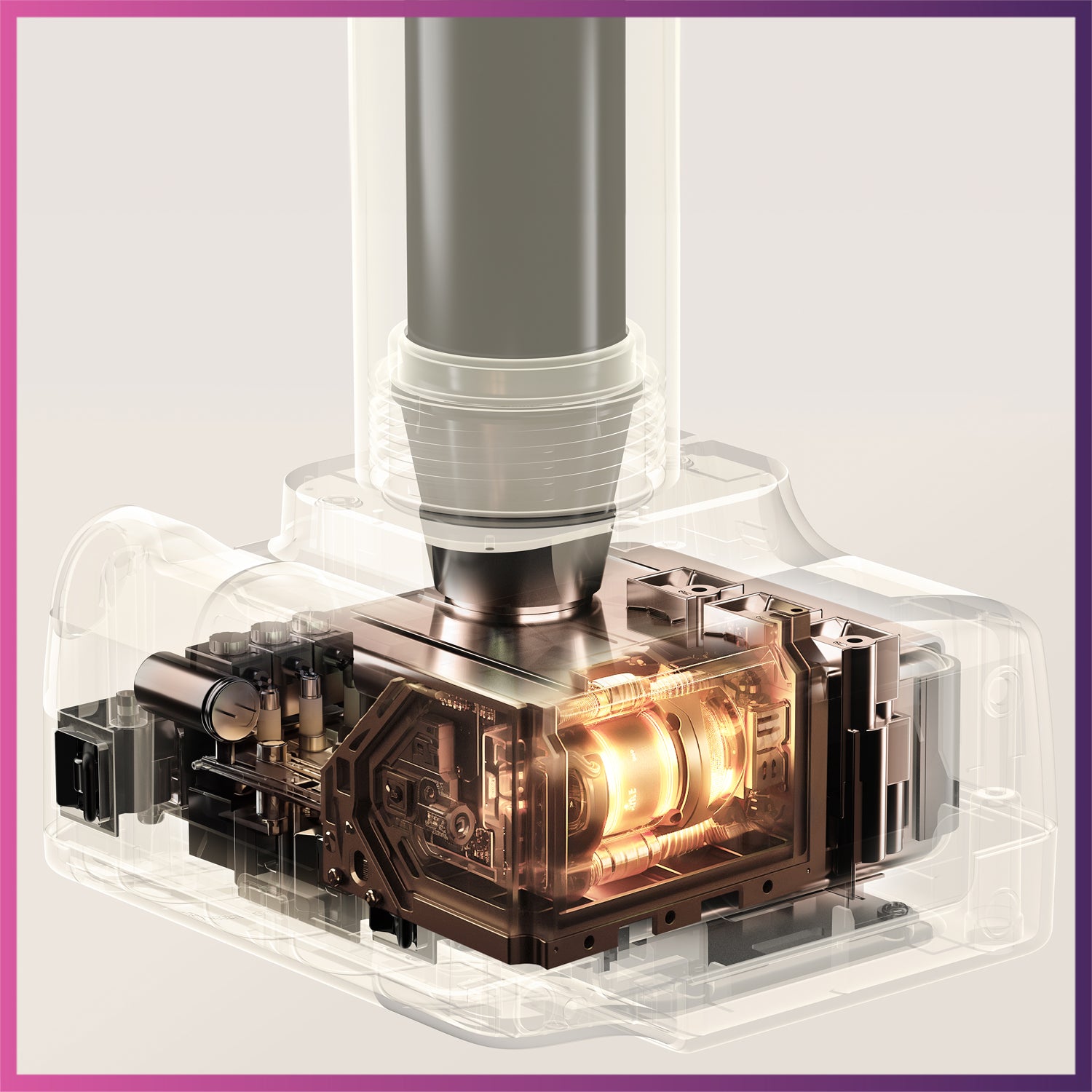

The Woodpecker Master Ray Portable Dental X-Ray is a lightweight, user-friendly device designed to deliver sharp, reliable intraoral images with minimal radiation. Compact and easy to operate, it’s ideal for general dentistry, endodontics, and pediatric cases.

Key Features

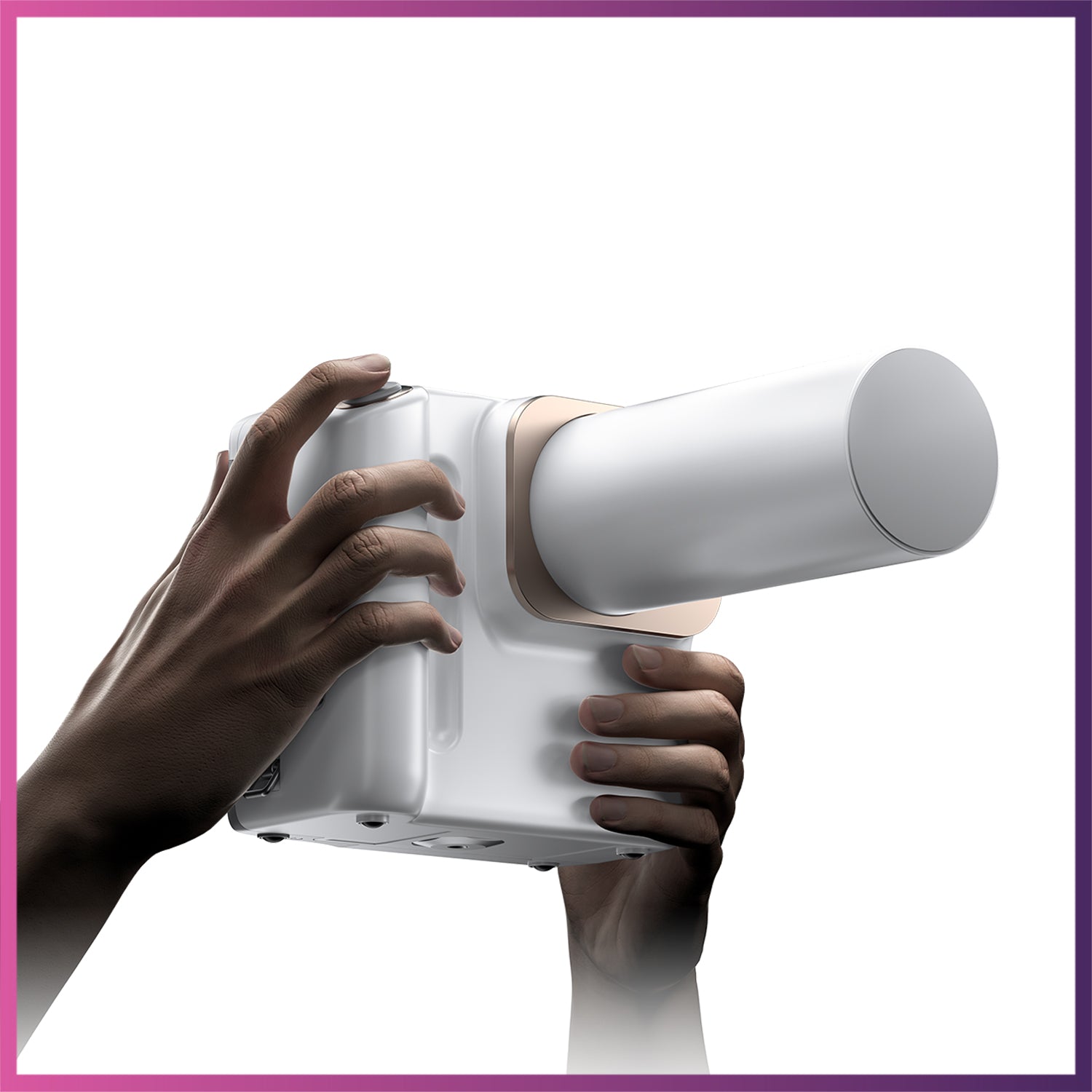

  • Lightweight (2.2 kg) and easy to carry

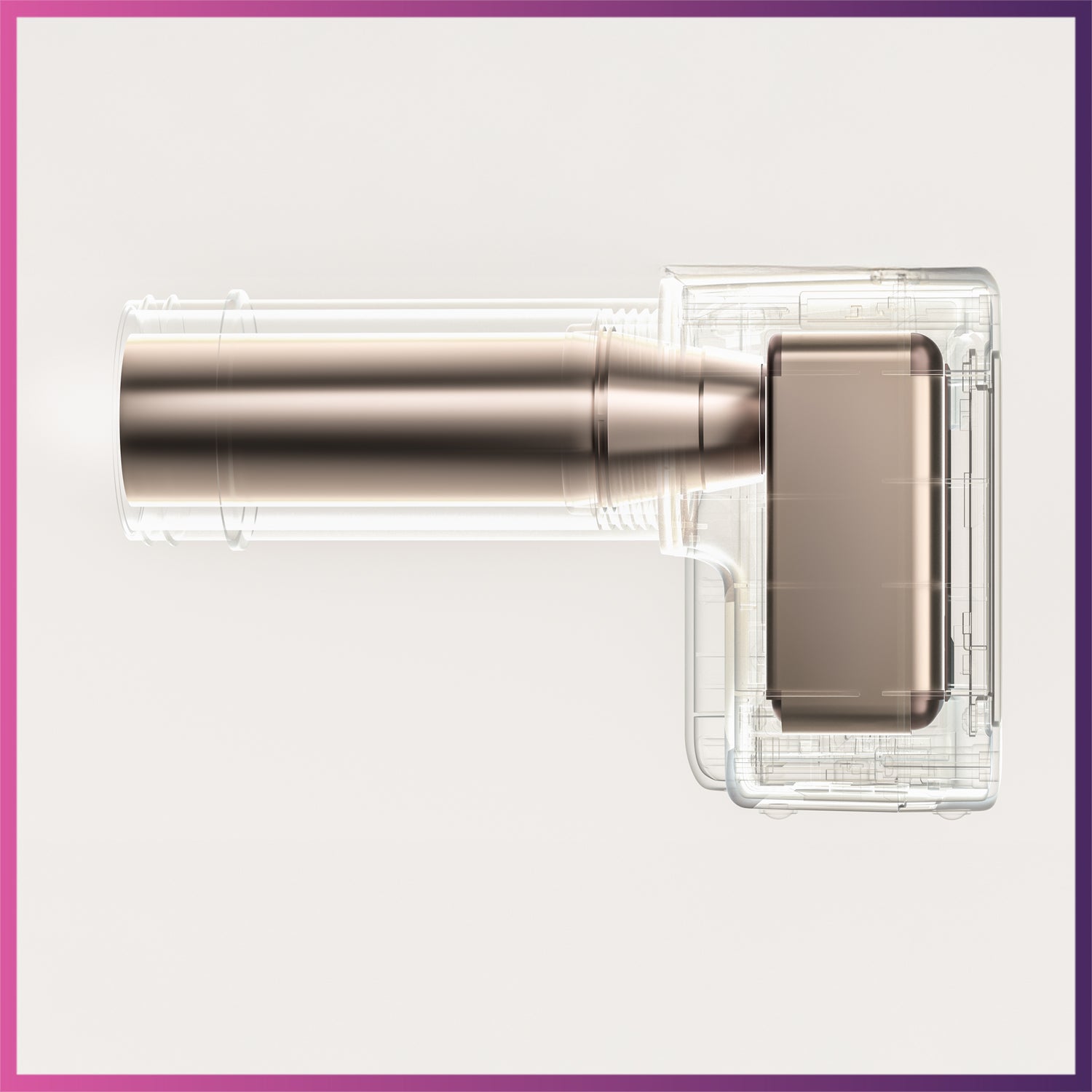

  • Clear images with 0.4 mm focal spot tube

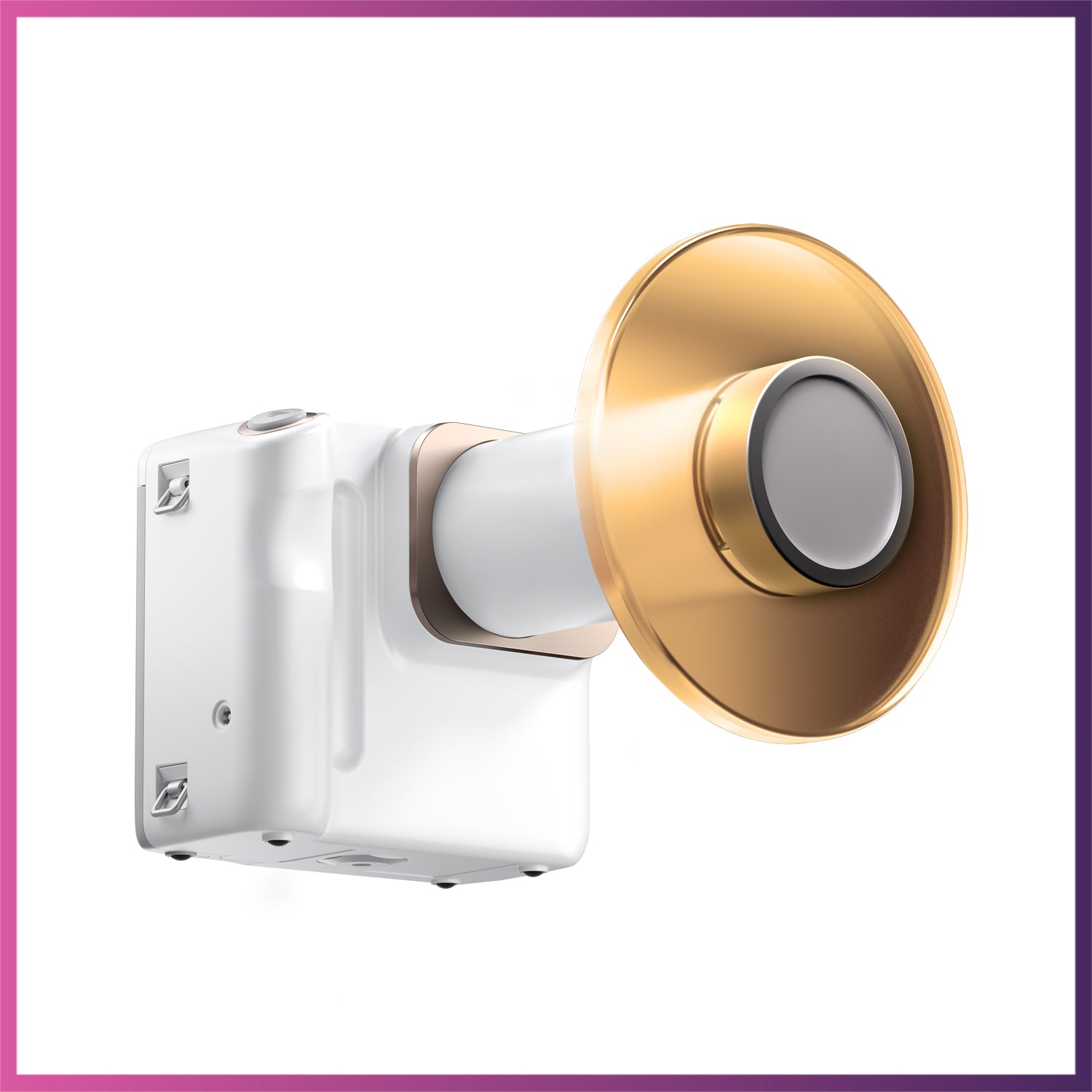

  • Low radiation with built-in shielding

  • Pre-set exposure modes for adults, children, and tooth types

  • Works with sensors, imaging plates, and film

  • Fast-charging lithium battery (≈1 hour)

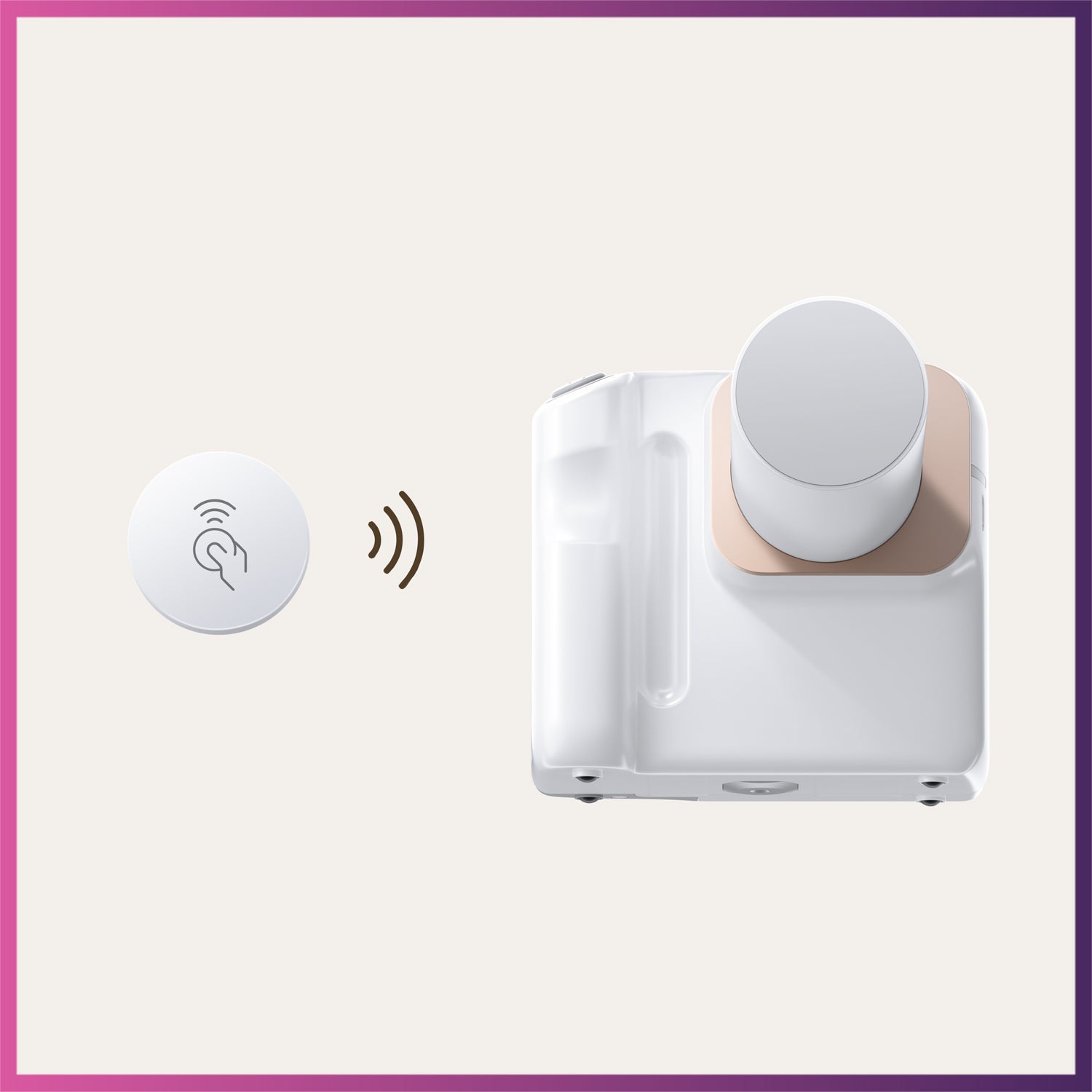

  • Wired or wireless hand brake options

  • Auto power-off for safety

Key Specifications

  • Tube Voltage: 70kV, Tube Current: 2mA

  • Exposure Time: 0.02s – 2s

  • Filtration: 1.5mmAl / 70kV

  • Radiation Field: Ø5.9 cm ±0.1 cm

  • Distance Focus-to-Skin: 20–23 cm

  • Dimensions: 240 × 161 × 143 mm

  • Weight: 2.2 kg

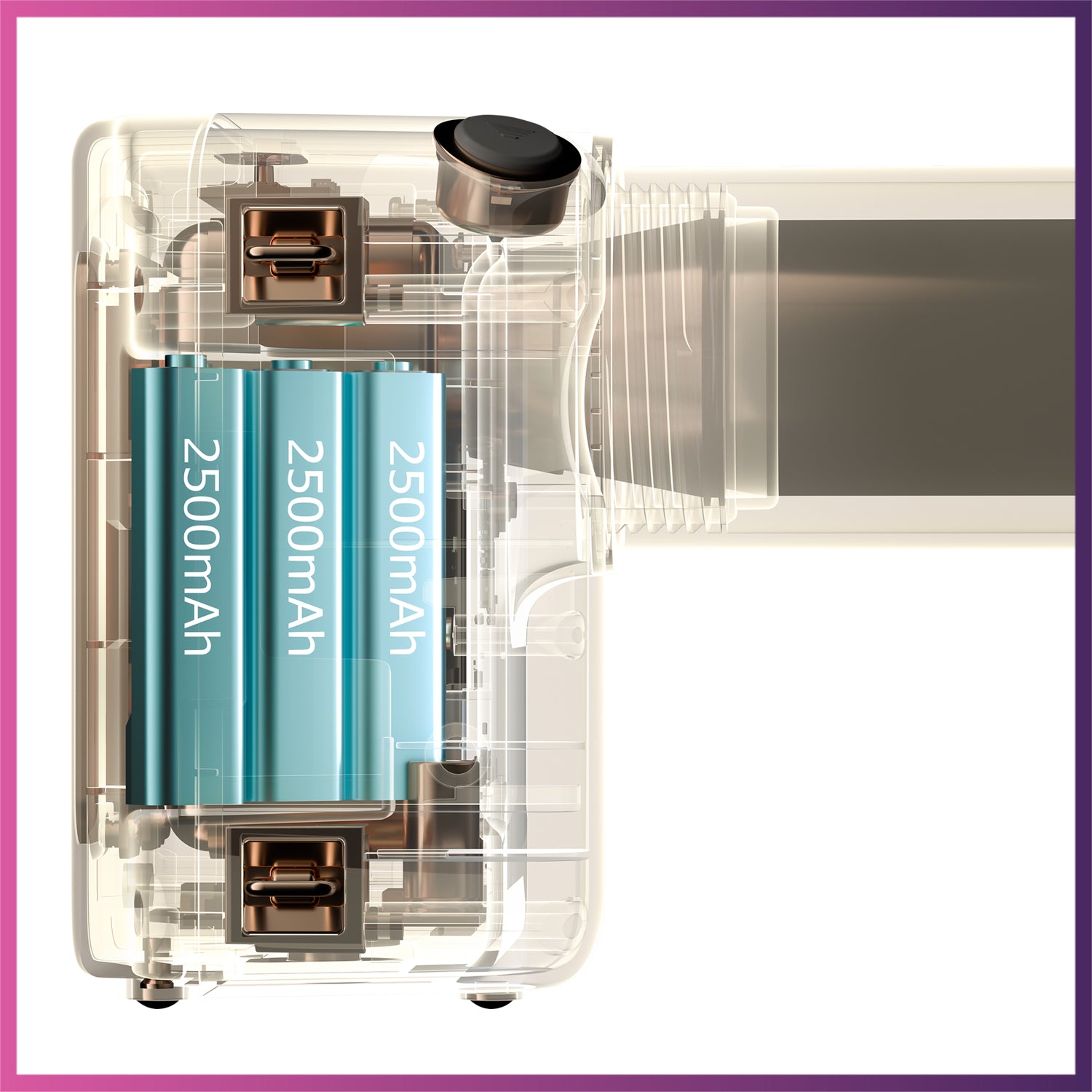

  • Battery: 10.8V 2500mAh Lithium, ~27Wh

Package Includes

  • 1 × Master Ray Portable X-Ray Generator

  • 1 × Power Adapter & Cable

  • 1 × Wired Hand Brake (optional)

  • 1 × Wireless Hand Brake (optional)

  • 1 × User Manual
