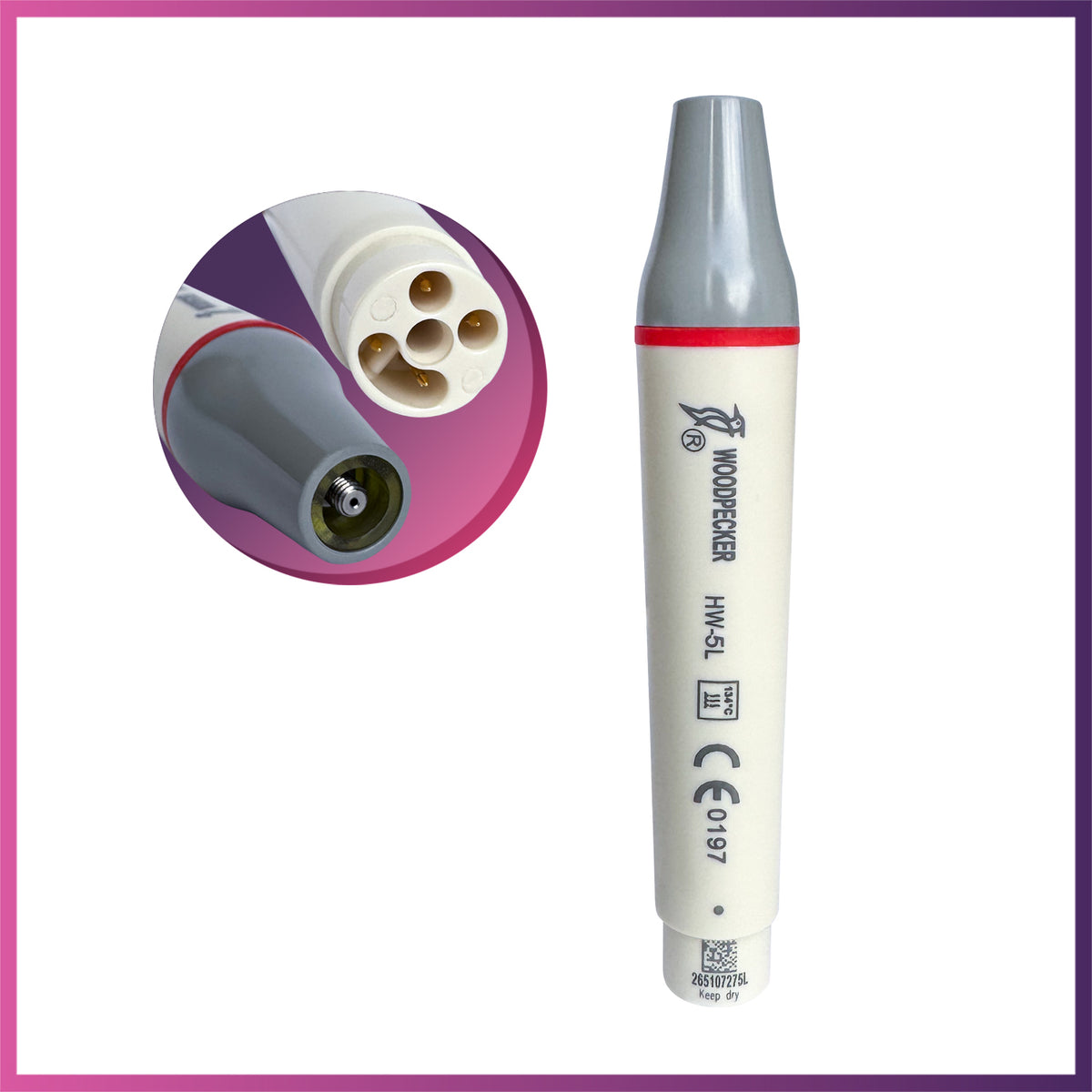

Woodpecker HW-5L Extra Handpiece for Ultrasonic Scaler

SKU: HAP-HW5L

Woodpecker (DTE)

Price
$225
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications
  • Model: HW-5L
  • Dimensions: 105 mm (length) × 18.9 mm (diameter)
  • Weight: 45 g
  • Output Tip Vibration Frequency: 28 kHz ± 3 kHz
  • Output Primary Tip Vibration Excursion: 1 μm–100 μm
  • Output Half-Excursion Force: 0.1 N–2 N
  • Tip Output Power: 3 W–20 W
  • Water Pressure: 0.01 MPa–0.5 MPa
  • Input Voltage: 190 V–230 V
  • Operating Mode: Continuous operation
  • Sterilization: Autoclavable up to 138°C, maximum 600 cycles
Packing List
Warranty

Period validity:

Handpiece: 1 Year

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

  1. The damage caused by disobeying the operation instruction or lack of the needed conditions.
  2. The damage caused by unsuitable operation or disassembly without authorization.
  3. The damage on product that caused by users’ unexpected drop or impact to product.
  4. The damage caused by unadvisable transportation or preservation.
  5. There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Share this product

Share E-mail

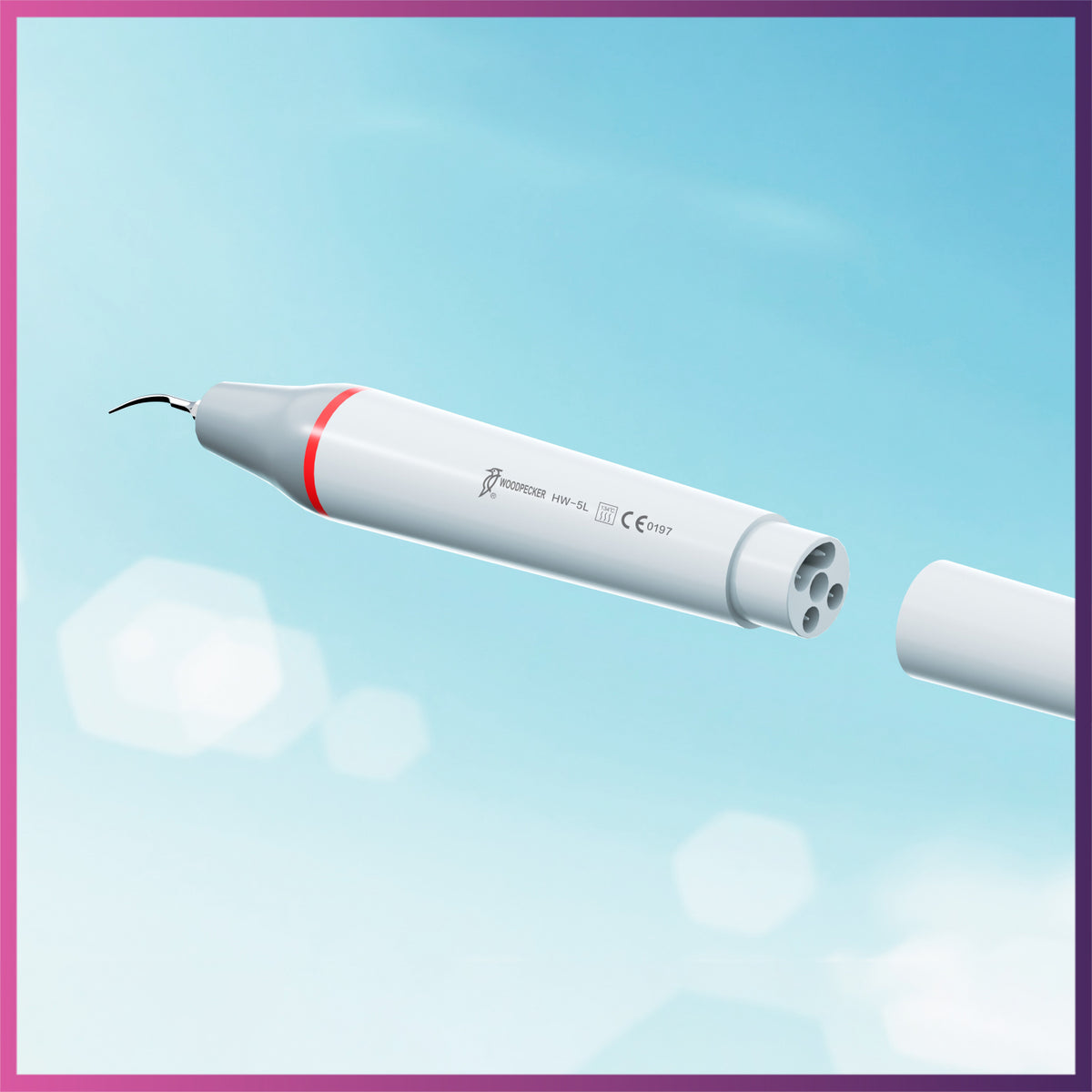

The Woodpecker HW-5L Ultrasonic Scaler Handpiece is an LED-equipped, detachable handpiece designed for efficient dental calculus removal and root canal cleaning. It utilizes piezoceramic technology to convert electrical energy into mechanical vibration, ensuring effective clinical performance. The handpiece is autoclavable and designed for compatibility with a range of Woodpecker ultrasonic scaler units.

Key Features

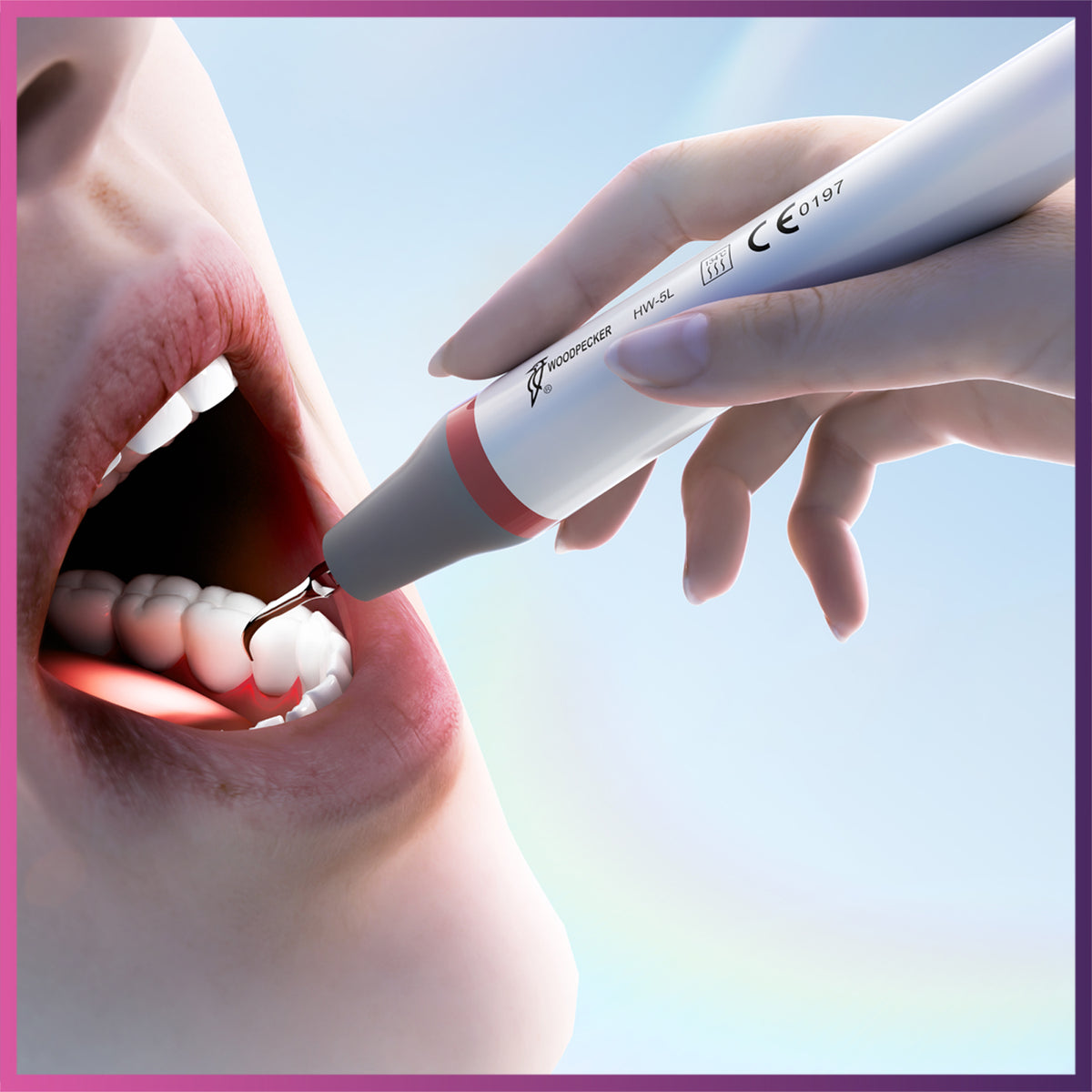

  • LED Illumination for Enhanced Visibility: Integrated LED (if equipped) provides illumination of the oral area for improved visibility during procedures.

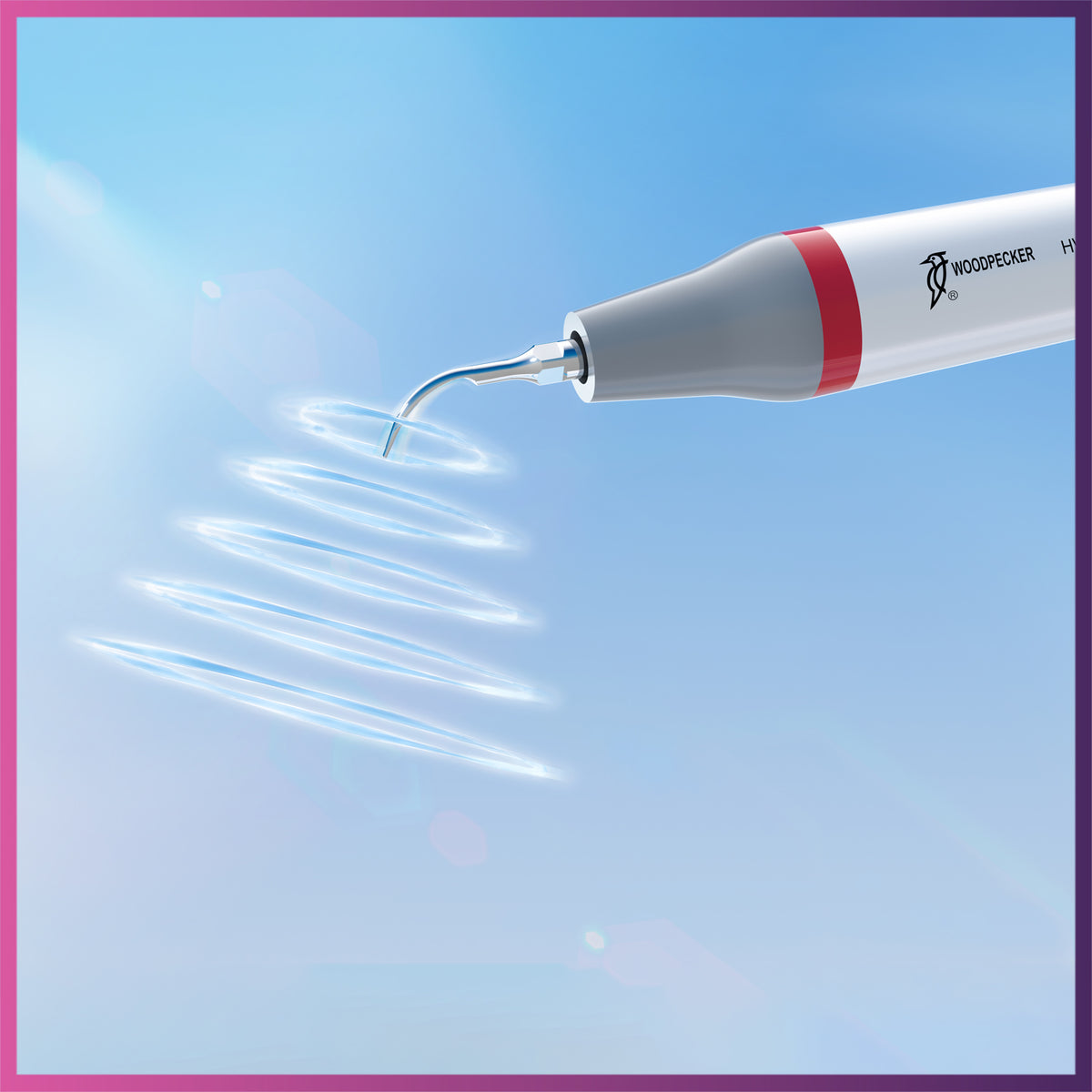

  • Piezoelectric Ultrasonic Technology: Uses piezoceramics to convert electrical energy into mechanical vibration for efficient scaling and cleaning.
  • Efficient Calculus Removal: Designed specifically for dental calculus elimination.
  • Root Canal Cleaning Capability: When paired with compatible scaler units, supports endodontic (root canal) cleaning functions.
  • Compact and Lightweight Design: Ergonomically designed for comfortable, pen-like handling.
  • Continuous Operation: Supports continuous use during dental procedures.
  • Autoclavable and Easy Maintenance: Can be sterilized up to 600 times; detachable components for thorough cleaning and disinfection.
  • Compatible with Woodpecker Ultrasonic Scalers: Designed as an accessory for the Woodpecker series scaler units.

Specifications

  • Model: HW-5L
  • Dimensions: 105 mm (length) × 18.9 mm (diameter)
  • Weight: 45 g
  • Output Tip Vibration Frequency: 28 kHz ± 3 kHz
  • Output Primary Tip Vibration Excursion: 1 μm–100 μm
  • Output Half-Excursion Force: 0.1 N–2 N
  • Tip Output Power: 3 W–20 W
  • Water Pressure: 0.01 MPa–0.5 MPa
  • Input Voltage: 190 V–230 V
  • Operating Mode: Continuous operation
  • Sterilization: Autoclavable up to 138°C, maximum 600 cycles

Compatibility

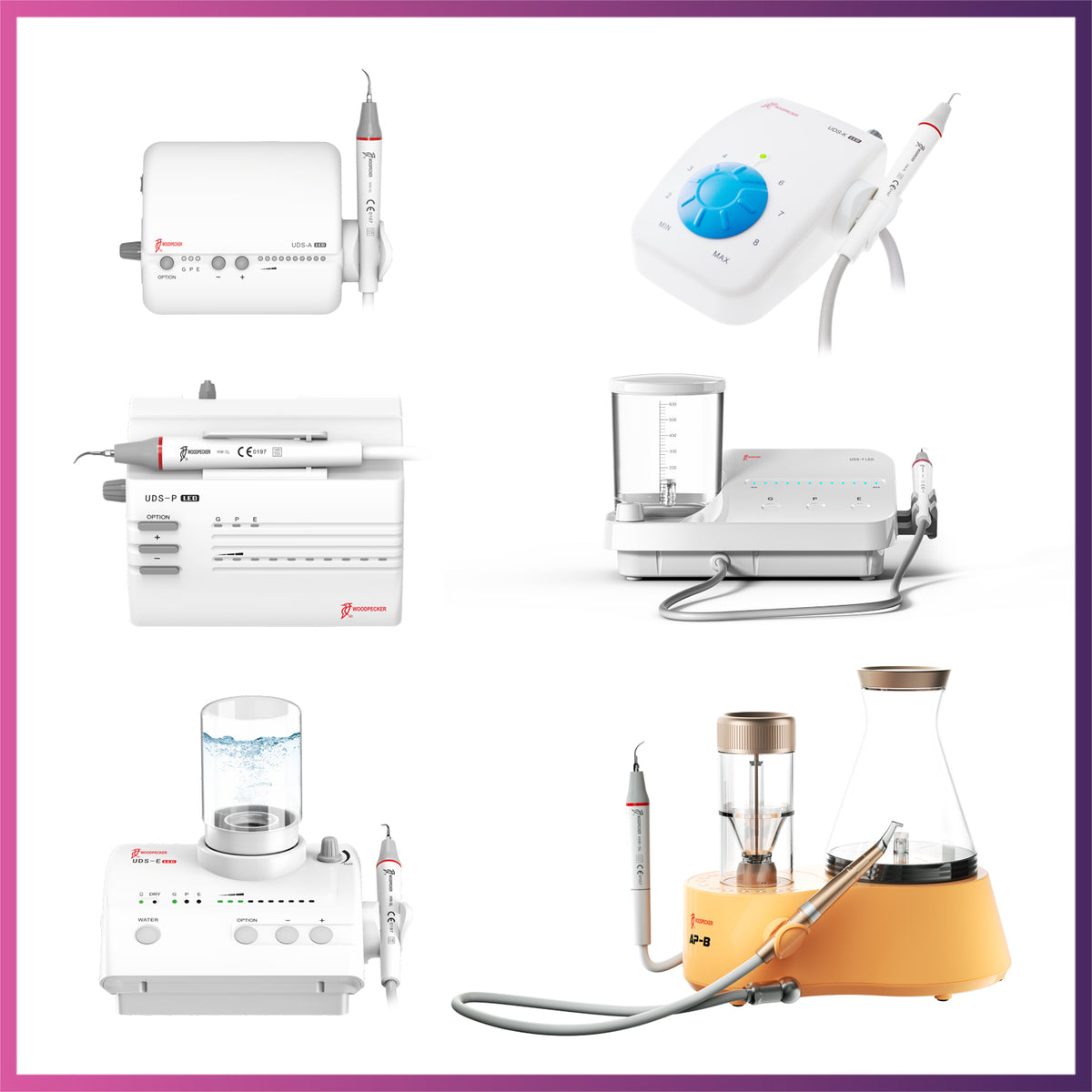

The HW-5L handpiece is compatible with the following Woodpecker ultrasonic scaler units:

  • UDS-K LED — Calculus removal
  • UDS-N2 LED — Calculus removal
  • UDS-L LED — Calculus removal and root canal cleaning
  • UDS-N3 LED — Calculus removal and root canal cleaning
  • UDS-A LED — Calculus removal and root canal cleaning
  • UDS-P LED — Calculus removal and root canal cleaning
  • UDS-E LED — Calculus removal and root canal cleaning



Woodpecker HW-5L Handpiece User Manual

1. What is the Woodpecker HW-5L Ultrasonic Scaler Handpiece used for?
The HW-5L handpiece is designed for dental calculus removal and, when paired with compatible scaler units, can also be used for root canal cleaning.

2. Which scaler units is the HW-5L handpiece compatible with?
It is compatible with the following Woodpecker ultrasonic scaler units: UDS-K LED, UDS-N2 LED (for calculus removal), and UDS-L LED, UDS-N3 LED, UDS-A LED, UDS-P LED, UDS-E LED (for calculus removal and root canal cleaning).

3. Does the HW-5L handpiece have LED illumination?
Yes, the HW-5L features an integrated LED light (if equipped) to enhance visibility during dental procedures.

4. Is the HW-5L handpiece autoclavable?
Yes, the handpiece and its detachable components are autoclavable up to 138°C, with a maximum of 600 sterilization cycles.

5. What type of scaling tips should be used with the HW-5L handpiece?
Only "WOODPECKER" brand scaling tips are recommended to ensure safety and prevent damage to the handpiece.

6. Are there any contraindications for using the HW-5L handpiece?
Yes. It should not be used by or on patients with hemophilia or pacemakers. Caution is advised for patients with heart disease, pregnant women, and children.

7. What should I do if the handpiece does not work or the LED light fails?
Check that the tip is tightened, the cable is properly connected, and the LED lamp is installed correctly. If issues persist, contact your dealer or the manufacturer for service.

8. How should the HW-5L handpiece be cleaned and maintained?
After each use, flush with water, disassemble detachable parts, clean with pure or distilled water, and sterilize according to the manual's instructions. Avoid using strong alkaline or acidic cleaning agents.
