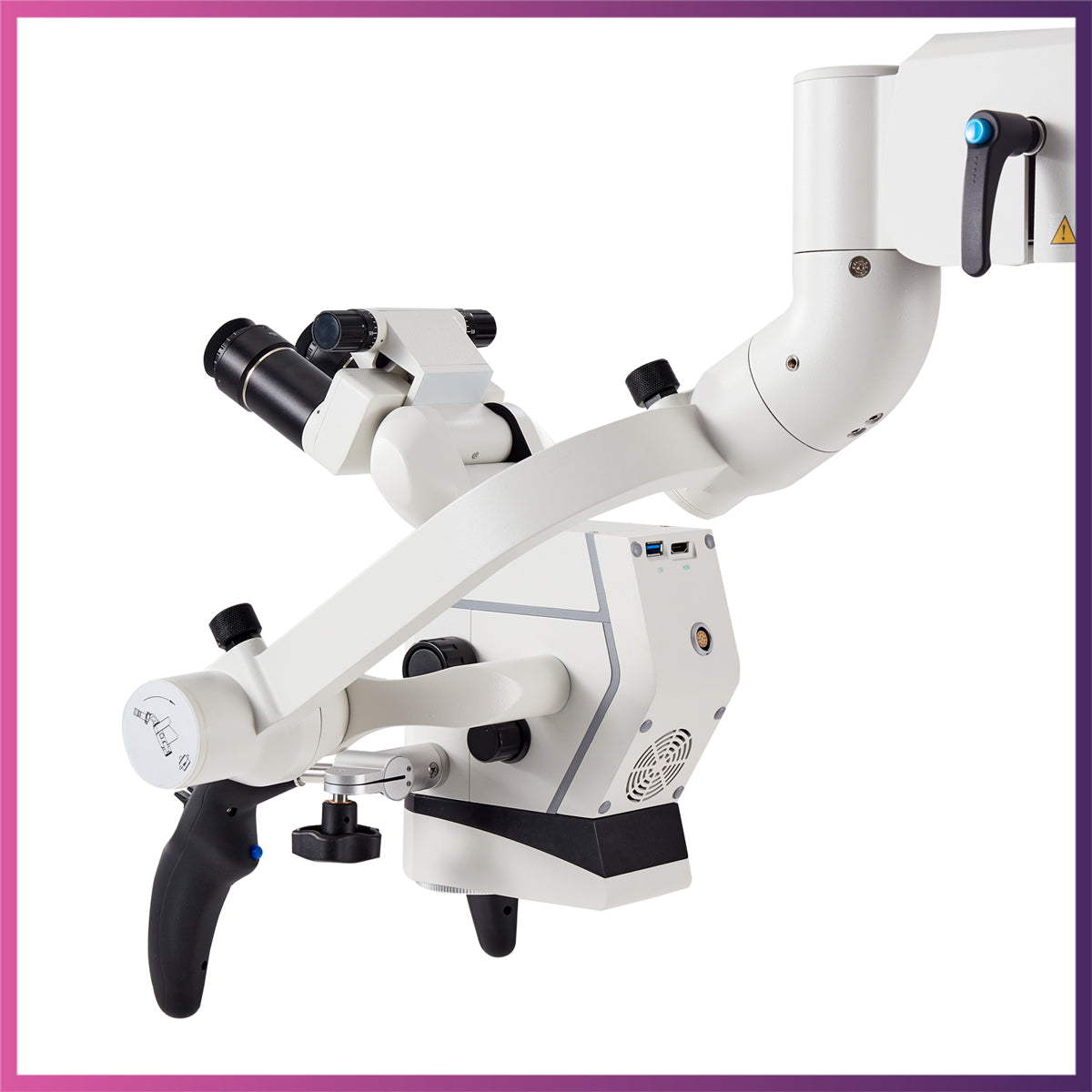

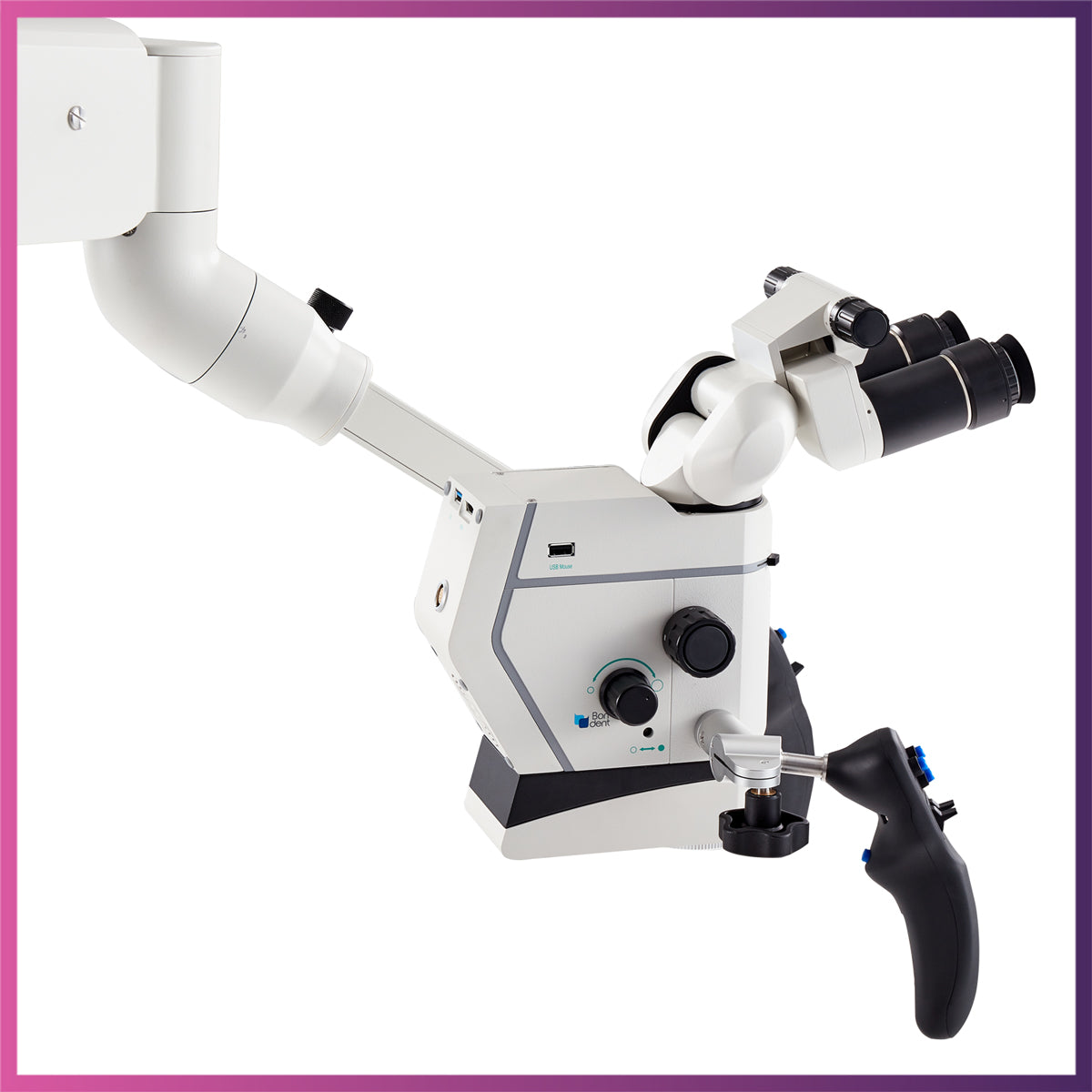

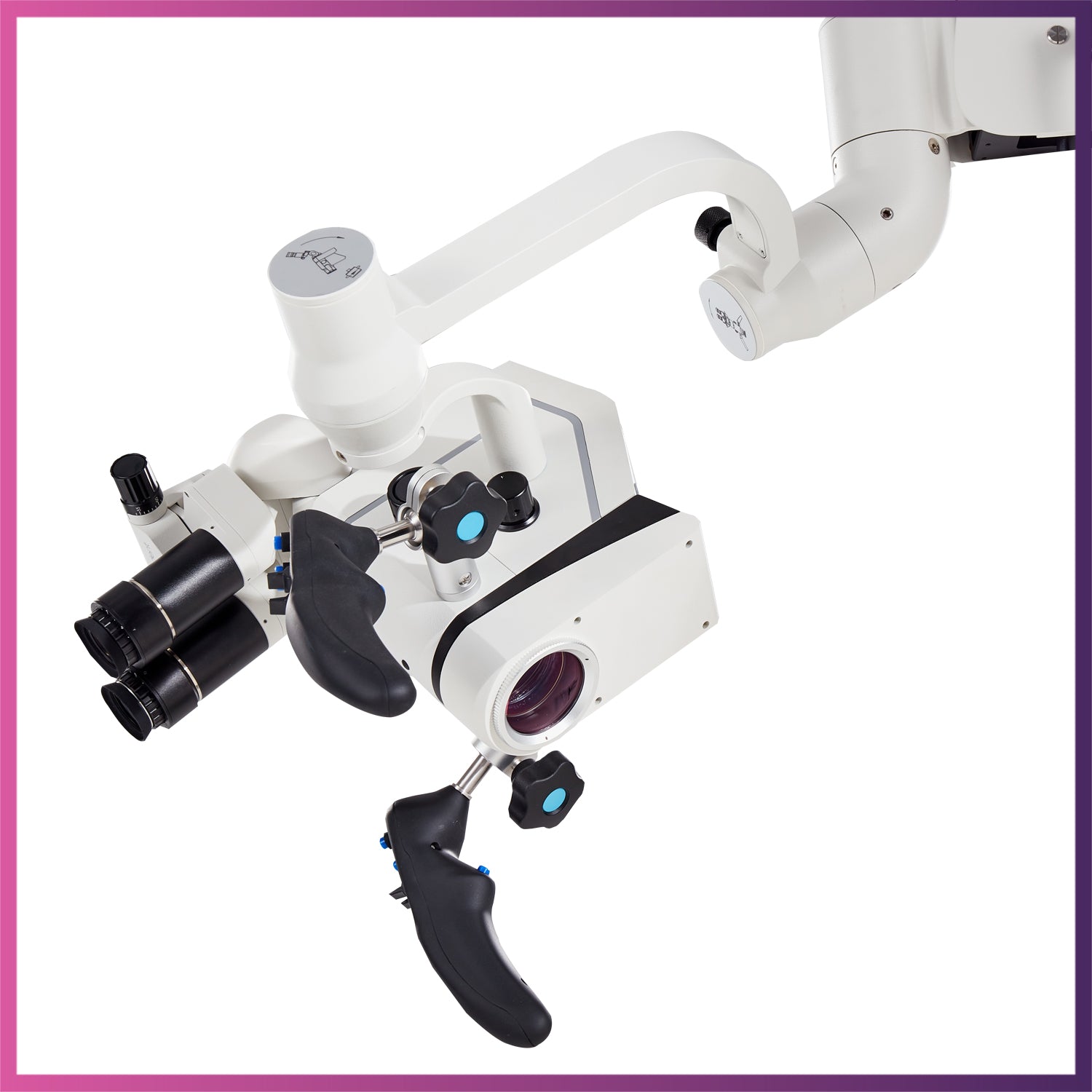

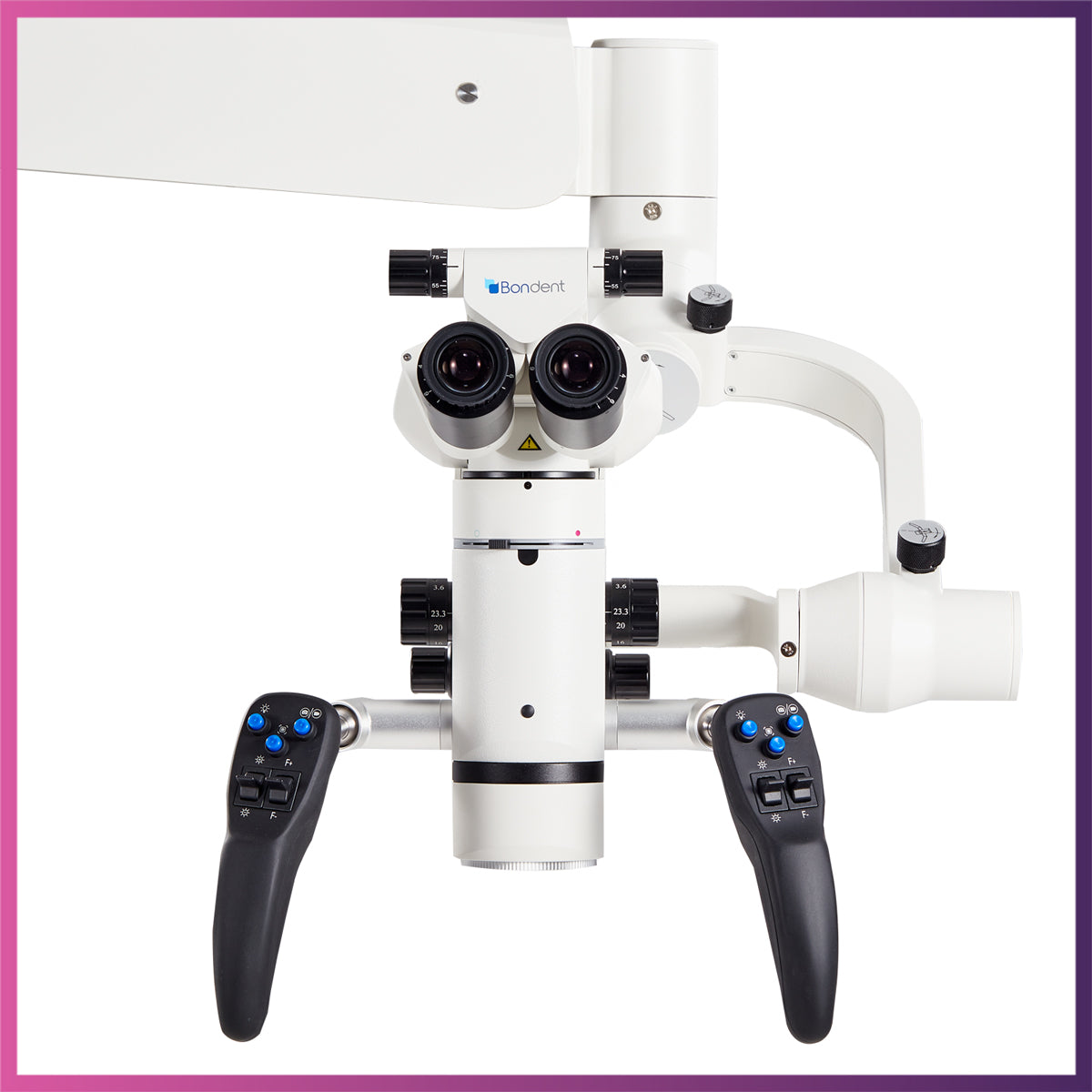

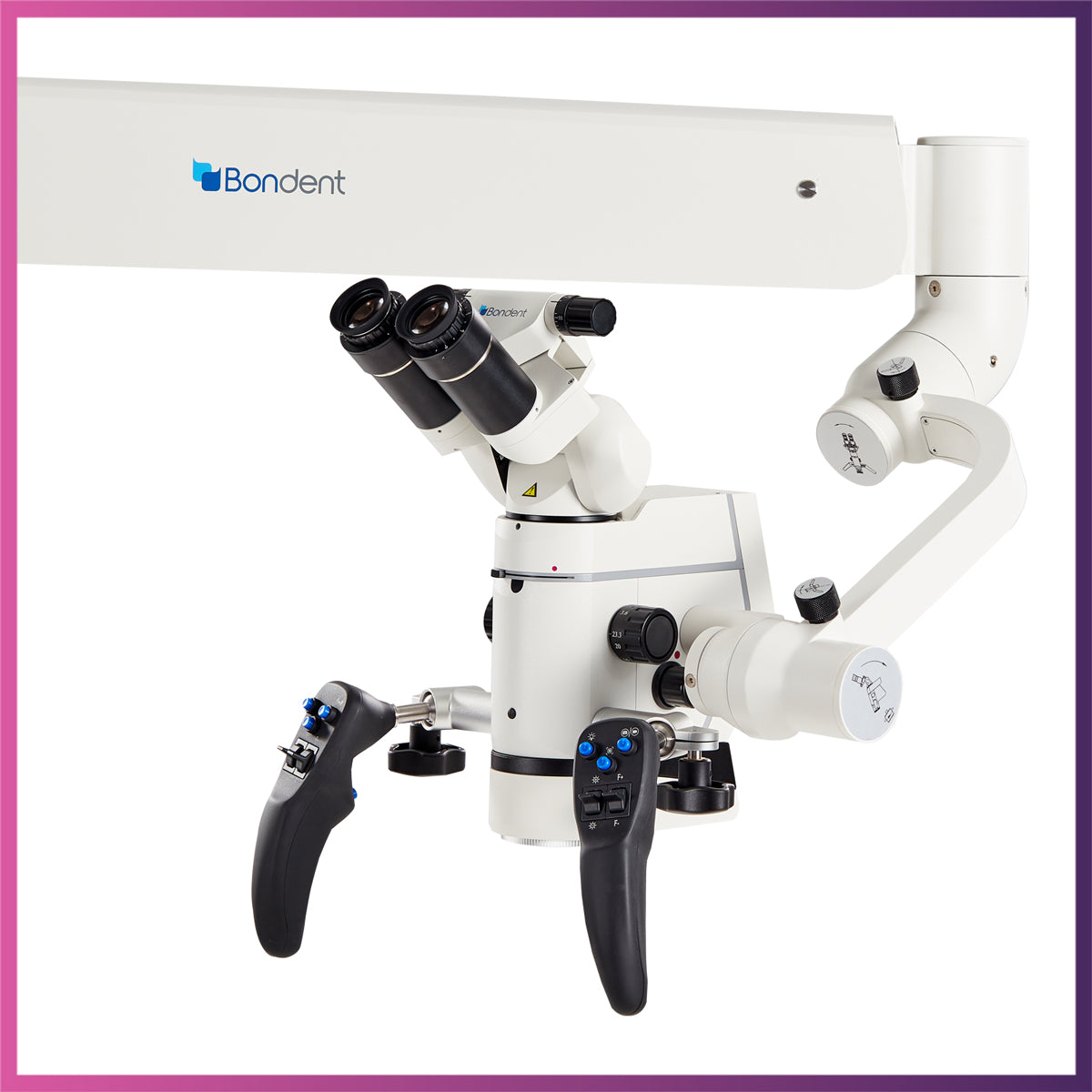

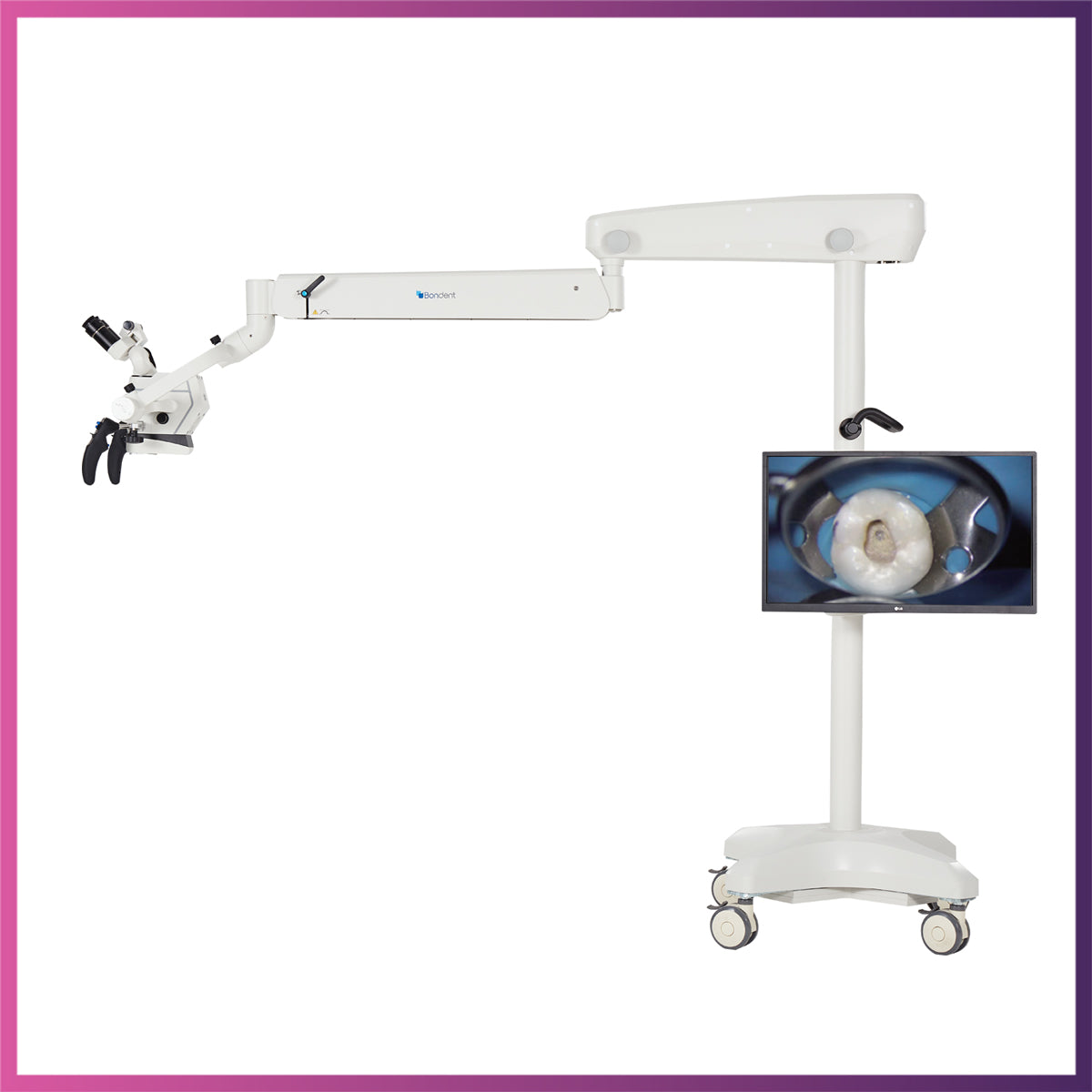

Bondent / Semorr G4 Pro Microscope

The BonDent / Semorr Microscope G4 Pro is our most advanced operating microscope, engineered to enhance precision and efficiency in medical and dental procedures. With cutting-edge features like an extended zoom range, integrated autofocus, and a built-in 4K camera, the G4 Pro offers superior optical performance and unmatched convenience. The ergonomic design, electromagnetic lock system, and advanced control options ensure smooth, one-handed operation, allowing for effortless adjustments during even the most complex procedures.

Key Features:

1. Extended Zoom Range for Maximum Versatility

With a working distance range of 200 mm to 550 mm, the G4-D Pro offers the largest zoom range in its class, allowing you to work across various magnification levels without repositioning the microscope. This increased flexibility is crucial for enhancing workflow and precision.

2. High-Performance Electric Zoom Function

Easily adjust magnification using buttons on the microscope handles, allowing smooth transitions between 3.6x and 23.3x zoom levels.

3. Autofocusing:

• Achieve sharp images instantly with the press of a button, streamlining the focusing process.

4. Built-In 4K Camera System with Wi-Fi Connectivity

Capture ultra-high-definition images and videos during procedures with the built-in 4K camera (60fps, 3840x2160). The camera can be operated directly from the microscope handles or via a smartphone, giving you full control over recording, playback, and file management.

5. Advanced Optical System for Superior Clarity

• The G4 Pro features top-of-the-line optical lenses and an improved coating process that minimizes glare and enhances resolution. With a wide-angle field of view ranging from 150 mm to 21 mm, you'll benefit from sharp, clear images that enable detailed examination and more accurate treatments.

6. Ergonomic Design for Optimal Comfort

• The 0-210° inclinable ergonomic binocular tube is designed for maximum operator comfort, allowing for an adjustable viewing angle that reduces strain during long procedures. The electromagnetic lock system and precisely balanced arm mechanisms provide smooth, stable positioning of the microscope head.

7. Electromagnetic Lock and Easy Positioning

The G4 Pro's 3-joint electromagnetic lock system allows effortless positioning of the microscope. The magnetic brakes provide easy and precise adjustments, ensuring that the microscope stays in place once positioned.

8. LED Illumination System

With a powerful LED light source providing up to 80,000 LUX, the G4 Pro ensures consistent, high-intensity lighting with a long lifespan. The system also includes fluorescent lighting and an integrated orange and green filter for enhanced visualization.

Camera Features:

1. Software Interface:

Mouse-controlled OSD interface for easy navigation and parameter adjustments. Capture photos and start/stop video recording using shortcuts on the microscope handles.

2. Photo and Video Functions:

Directly save images and videos to a USB flash drive for easy documentation.

3. Preview and Playback Functions:

Preview up to four stored images simultaneously, and playback recorded videos at different speeds.

4. Image Settings

Control exposure, white balance, brightness, contrast, and more for optimal image clarity.

5. Enhanced Imaging Features

Features like De-fog and dynamic range adjustment allow for clearer images under varied lighting conditions.

Target Audience:

The DOM4000E (G4 Pro) Microscope is the pinnacle of dental microscopy, offering cutting-edge optics, enhanced camera systems, and a range of advanced features to improve your workflow. Its built-in 4K camera with 60fps ensures superior image quality, and the three-joint electromagnetic lock promotes greater stability during complex procedures. With its comprehensive features, the G4 Pro maximizes precision, comfort, and overall performance in the dental clinic. The G4 Pro introduces features like auto-focus and 4K video recording at 60 frames per second, making it ideal for clinicians requiring both advanced magnification and high-speed image processing.
