Woodpecker / DTE Curing Light / I LED II
Woodpecker / DTE Curing Light / I LED II
Woodpecker / DTE Curing Light / I LED II
Click to open expanded view

Woodpecker / DTE Curing Light / I LED II

Sale price
$250.20
Regular price
$278
You save
10%
Taxes and shipping calculated at checkout
Woodpecker / DTE Curing Light / I LED II

Stock Notification

Get notified when this product is available again
Specifications

Power input: 100V to 240V, 50Hz/60 Hz

Power output: DC5V/1A

Battery: 18500, 3.7V/ 2000mAh

Wave length: 385nm-515nm

Light intensity: 1000 -3000mW/cm2

Illumination range: 8mm-10mm

Dimension: 1”×1”×9.5” (25×25×240mm)

Net weight: 0.6lb (278g)

Package: 1pc/box, 20boxes/ctn

Packing List
  1. Main unit x 1
  2. Light hood x 1
  3. Bathymeter x 1
  4. Adapter x 1
  5. Charging base x 1
  6. Disposable sleeves x 100
  7. Qualified certificate x 1
  8. Instruction manual x 1
  9. Warranty card x 1
Warranty

I) Period validity:
We offer two years on the device, one year on the battery , excluding the light guide and light hood.
II) Range of warranty:
Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.
III) The following are beyond our warranty:

  • The damage caused by disobeying the operation instruction or lack of the needed conditions.
  • The damage caused by unsuitable operation or disassembly without authorization.
  • The damage caused by unadvisable transportation or preservation.
  • There isn’t the seal of distributor, or the warranty card isn’t filled in completed.
  • The warranty is not including optical fiber and light hood.

Share this product

Share E-mail

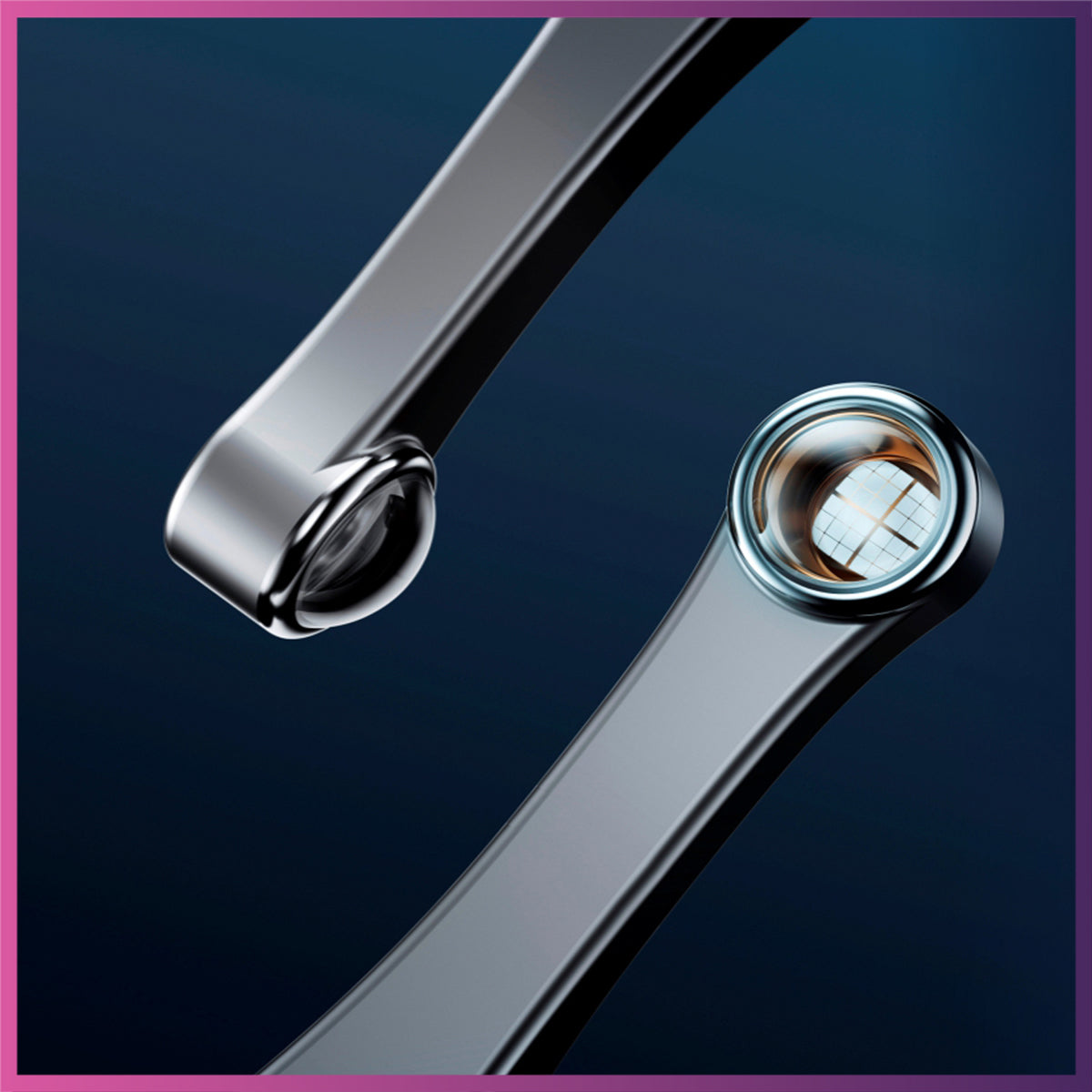

The Woodpecker / DTE Curing Light iLED II is an advanced dental curing light designed for fast and effective polymerization of light-sensitive resins. This wireless unit features a 360° rotary design and is capable of 1-second curing for 2mm resins, making it ideal for quick dental procedures. With an upgraded focused light intensity of 3000mW/cm² and a wide spectrum ranging from 385nm to 515nm, the I LED II ensures efficient curing across various resin types. The metal head offers an 8-10mm illumination range, delivering precision and enhanced usability. Its ergonomic, fluid design and three distinct modes—Turbo, High, and Standard Power—allow for versatile usage. Powered by a 2000mAh rechargeable lithium battery, it offers long-lasting performance, making it an ideal choice for dental professionals.

Key Features:

  1. Three Power Modes:

  • Turbo Power (2700-3000 mW/cm²)

  • High Power (1800-2000 mW/cm²)

  • Standard Power (1000-1200 mW/cm²)

  1. Quick Curing Options:

Offers curing times from 1 to 20 seconds, depending on the mode.

  1. Pinpoint Curing:

Magnetic Point Cure Lens for small composite areas, ideal for veneers and porcelain crowns.

  1. Efficient Battery System:

Low battery detection and quick recharging via a DC 5.0V charging base.

  1. Ergonomic and Safe:

Automatically stops after overheating and includes disposable sleeves for hygiene.



Here are some videos for your viewing. Enjoy!

Introduction to I LED II

I LED II PDF Catalogue

I LED II User Manual

General Use

1. How do I select different power modes on the i LED II curing light?

  • Press the "Mode Change" button to cycle through three power modes:
  • Turbo Power Mode (P0): 2700-3000 mW/cm² for 1-3 seconds.
  • High Power Mode (P1): 1800-2000 mW/cm² for 3-5 seconds.
  • Standard Power Mode (P2): 1000-1200 mW/cm² for 5-20 seconds.

2. How long should I cure composite materials?

  • For a 2mm composite layer, the recommended curing times are:
  • Standard Power: 1×10 seconds.
  • High Power: 2×3 seconds.
  • Turbo Power: 1×3 seconds.

3. How do I know when to recharge the unit?

  • The screen will start to "wink" when the battery is low. Connect the curing light to the charger promptly to avoid shutdown.

Cleaning and Disinfection

4. How should I clean the i LED II curing light?

Before each use, wipe the device surface with a soft cloth or paper towel soaked in 75% medical alcohol. After use, clean with distilled or deionized water using a clean soft cloth.

5. How do I clean and sterilize the point cure lens?

Clean with distilled water or deionized water, and disinfect using an automated washer-disinfector. Do not expose the lens to temperatures above 138°C, and do not use strong acidic or alkaline cleaning agents.

6. How often should I sterilize the optical fiber?

The optical fiber can be sterilized up to 500 times. Ensure thorough cleaning and disinfection before sterilization.

Troubleshooting

7. The screen displays “Er” or is unresponsive. What should I do?

This could indicate a system error or a faulty unit. Send the device for service and repair.

8. What should I do if the curing light doesn’t charge?

Check that the adapter is connected properly. If the issue persists, ensure the adapter is compatible with the device or send it for repair.

9. The light intensity is weak. How can I fix this?

Clean any resin buildup on the top of the main unit, as this could reduce the light's effectiveness.

Daily Maintenance

10. How often should the i LED II curing light be maintained?

Monthly maintenance is recommended. However, the disposable sleeve is single-use and requires no maintenance.

11. What precautions should I take if I won’t use the device for an extended period?

Charge the battery every six months to prevent damage caused by long-term storage.

Operation and Features

12. How do I stop the curing light mid-cycle?

Press the power button at any time to stop the blue light during operation.

13. What happens if the curing light overheats?

If the device becomes too hot, stop operation and allow it to cool before restarting. It is recommended to avoid using the curing light continuously for more than 10 cycles.

14. Can I rotate the top of the curing light?

Yes, the top can rotate 360 degrees, but it should not be forcibly removed.

Compare with similar items

Woodpecker / DTE Curing Light / I LED II
This item Woodpecker / DTE Curing Light / I LED II
Woodpecker / DTE Curing Light / O-Light
Woodpecker / DTE Curing Light / O-Light
Woodpecker Curing Light / O-Light Max
Woodpecker Curing Light / O-Light Max
Woodpecker / DTE Curing Light / O-Star
Woodpecker / DTE Curing Light / O-Star
Battery
2000mAh
1400mAh
1400mAh
2000mAh
Weight
278 g
259 g
259 g
108 g
Dimensions
25 × 25 × 240 mm
268.8 × 26.1 × 31.8 mm
268.8 × 26.1 × 31.8 mm
204 × 23 × 23 mm
Working Modes
3 (Turbo, High, Standard)
2 (Turbo, Normal)
2 (Turbo, Normal)
7 (Normal, High, Turbo, Ortho, Soft, Pulse, Check)
Illumination Range
8-10mm
8mm
8-10mm
8-10mm
Light Intensity
1000-3000mW/cm²
1000-2500mW/cm²
1000-2500mW/cm²
1000-3000mW/cm²
Wavelength
385-515nm
420-480nm
385-515nm
385-515nm
Head Material
Metal
Plastic
Metal
Metal
Body Material
Metal
Ergonomic plastic body
Ergonomic plastic body
Metal
Display
LED
LED
LED
OLED
Head Rotation
360°
360°
360°
360°
Special Features
Full Metal body and head
curing 2mm resin in just 1 second
wide spectrum 385 nm to 515 nm
Charging base with Built-in Light Meter
Price
$250.20
$254.00
$228.60
$674.10
