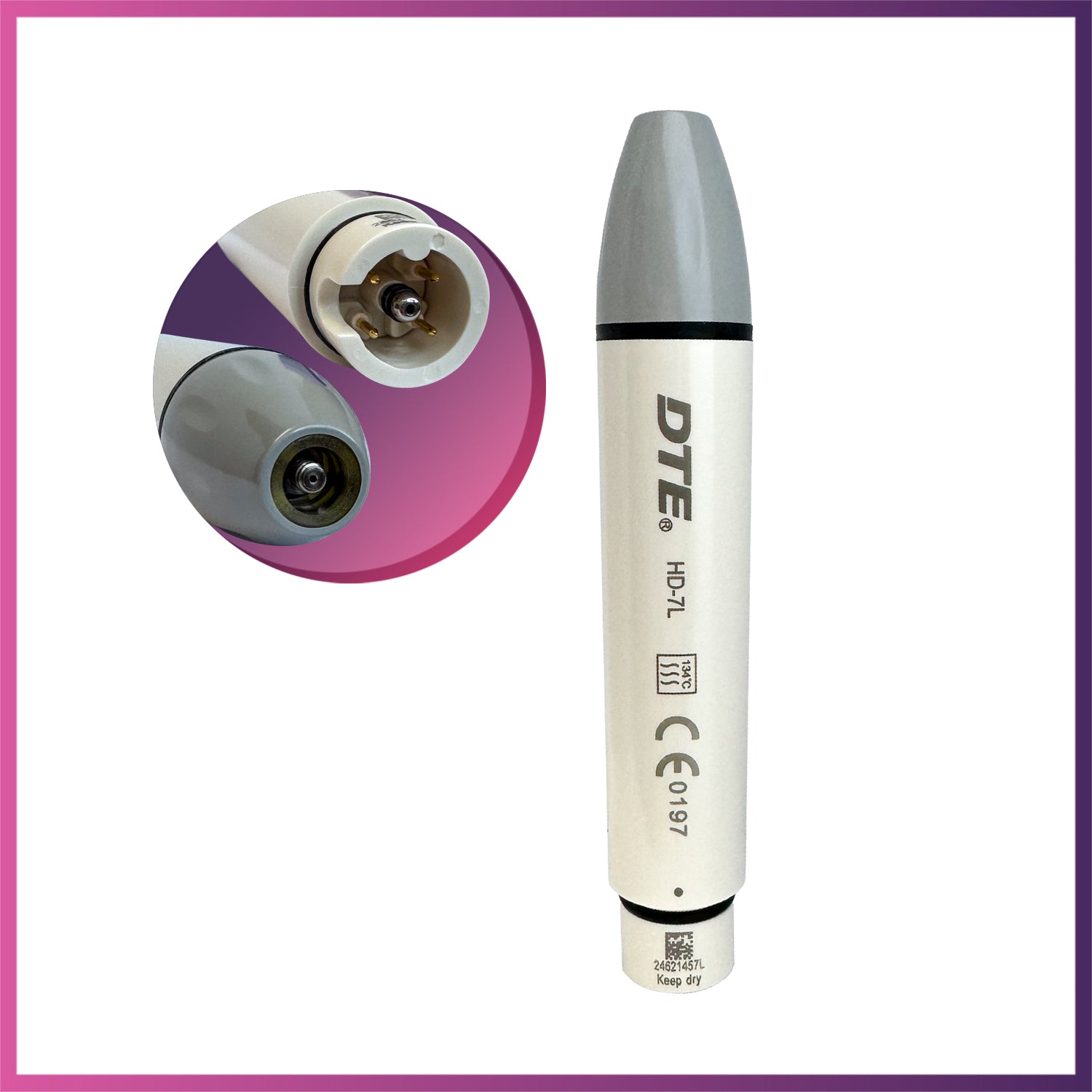

DTE HD-7L Extra Handpiece for Ultrasonic Scaler D3 / D6 -LED
DTE HD-7L Extra Handpiece for Ultrasonic Scaler D3 / D6 -LED
DTE HD-7L Extra Handpiece for Ultrasonic Scaler D3 / D6 -LED
Click to open expanded view

DTE HD-7L Extra Handpiece for Ultrasonic Scaler D3 / D6 -LED

SKU: ULT-SCA-HAN-HD7L

Woodpecker (DTE)

Price
$185
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications
  • Dimensions: 111 mm (length) * 20.5 mm (diameter)
  • Weight: 57g
  • Output tip Vibration frequency: 28kHz±3kHz
  • Output primary tip Vibration excursion: 1μm~100μm
  • Output power: 3W ~ 20W
  • Water pressure: 0.01MPa ~ 0.5MPa
Packing List
Warranty

Period validity:

Handpiece: 1 Year

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

  1. The damage caused by disobeying the operation instruction or lack of the needed conditions.
  2. The damage caused by unsuitable operation or disassembly without authorization.
  3. The damage on product that caused by users’ unexpected drop or impact to product.
  4. The damage caused by unadvisable transportation or preservation.
  5. There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

Share this product

Share E-mail

The DTE HD-7L Ultrasonic Scaler Handpiece is a high-performance handpiece for use with DTE series ultrasonic scalers. Equipped with an LED light for enhanced visibility.

Specifications

  • Dimensions: 111 mm (length) * 20.5 mm (diameter)
  • Weight: 57g
  • Output tip Vibration frequency: 28kHz±3kHz
  • Output primary tip Vibration excursion: 1μm~100μm
  • Output power: 3W ~ 20W
  • Water pressure: 0.01MPa ~ 0.5MPa

Key Features

  1. Advanced LED Illumination: Built-in LED light enhances visibility during dental procedures for superior accuracy.
  2. High-Performance Piezoceramic Technology: Converts electrical energy into mechanical energy for efficient dental calculus removal.
  3. Compact and Lightweight Design: Measuring 111mm in length and weighing only 57g, it ensures comfortable handling.
  4. Versatile Compatibility: Works seamlessly with D3 LED, V2 LED, D5 LED, D6 LED, D7 LED, and V3 LED ultrasonic scalers.
  5. Dual Functionality: Ideal for both scaling and root canal cleaning with easy integration into clinical workflows.
  6. Autoclave-Safe Components: Fully sterilizable at 134°C, maintaining hygiene and longevity.
  7. Waterproof Sealing: Features durable "O" rings for reliable performance and ease of maintenance.
  8. Eco-Friendly: Complies with environmental protection standards and supports safe disposal practices.

Compatibility:

  • Compatible with D3 LED, V2 LED for scaling only.
  • Compatible with D5 LED, D6 LED, D7 LED, and V3 LED for both scaling and root canal cleaning

Here are some videos for your viewing. Enjoy!

DTE Handpiece HD-7L User Manual

1. What is the DTE HD-7L Ultrasonic Scaler Handpiece?

The HD-7L is a detachable handpiece accessory for DTE series ultrasonic scalers, featuring an LED light for improved visibility during dental procedures.

2. What are the main uses of the HD-7L handpiece?

It is used for dental calculus elimination and, when paired with compatible scalers, for root canal cleaning.

3. Which scaler models are compatible with the HD-7L handpiece?

It is compatible with D3 LED, V2 LED (for scaling), and D5 LED, D7 LED, V3 LED (for scaling and root canal cleaning).

4. Who should not use the HD-7L handpiece?

Patients with hemophilia or heart pacemakers, doctors with pacemakers, and those with heart disease, pregnant women, and children should use with caution or avoid use.

5. How should the handpiece and its components be sterilized?

Remove the nipple, light pipe, and LED lamp before autoclaving at 134°C, 2.0–2.3 bar for 4 minutes. Do not boil, soak in disinfectants, or use ultrasonic cleaners.

6. What are the main technical specifications?
  • Power input: 190V–230V
  • Vibration frequency: 28kHz ± 3kHz
  • Output power: 3W–20W
  • Water pressure: 0.01MPa–0.5MPa
7. How do you install the handpiece and tips?

Connect the handpiece to the cable, ensuring dryness. Use only DTE brand scaling tips and tighten with a torque wrench.

8. What should I do if the handpiece is not working properly?

Check for loose tips, cable issues, or water supply problems. Refer to the troubleshooting section or contact your dealer for persistent issues.

9. How should the handpiece be stored and transported?

Store in a cool, dry, ventilated place away from hazardous materials. During transport, avoid impact, moisture, and direct sunlight.
