Replacement Saline Connector for Woodpecker Surgic Star

Name: Replacement Saline Connector for Woodpecker Surgic Star
Brand: Woodpecker
SKU: CON-SUR-STR
Price: 18.38 CAD
Availability: InStock

SKU: CON-SUR-STR

Price

$18.38

Taxes and shipping calculated at checkout

Ships in 5-7 weeks

Share this product

Specification

Specifications

Main Unit Model: Surgic Star SE / Surgic Star
Power Input: 100V–240V ~ 50Hz/60Hz
Input Power: 180VA
Main Unit Dimensions: 267 × 284 × 136 mm

Ultrasonic System

Ultrasonic Handpiece: HB-2 LED
Working Frequency: 24kHz–36kHz
Water Flow Rate: 30–120 mL/min

Motor System

Motor Handpiece: SPM60L
No-Load Speed: 300–42,000 rpm
Cooling Air Flow: Maximum 40L/min

Foot Control

Foot Control: MF6 / PF-3 Plus (either)

Contra-Angle Gear Ratios & Output Speeds

1:1 — 1,000–42,000 rpm
1:3 — 3,000–126,000 rpm
1:4.2 — 4,200–176,400 rpm
1:5 — 5,000–210,000 rpm
16:1 — 20–2,625 rpm
20:1 — 15–2,100 rpm
27:1 — 10–1,537 rpm

Safety & Protection

Fuses: 2 × T1.6AL 250V
Ingress Protection: IPX1 (device), IPX6 (foot control)

Software & Operation

Software Version: V1
Operation Mode: Intermittent operation (60s ON / 10s OFF)

Packing List

Packaging List
Main Unit ×1
Power Cord ×1
Hook ×1
Foot Switch ×1
Motor Handpiece ×1
Ultrasonic Handpiece ×2
Tip Holder ×2
Pump Tubing ×7
Medical Silicone Rubber Flushing Pipe ×4
Connecting Joint of Pump Tubing ×2
Silicone Cap ×2
Contra-angle Handpiece ×1
Autoclave Box ×2
Torque Wrench ×2
Single Package Accessories
Tip Book ×1
Silicone Handle Holder ×2
Surgical Tips Included
SS18 ×1
SS2 ×1
SS3 ×1
SS6 ×1
SS5 ×1
SS11L ×1
SS11R ×1
SL1 ×1
SL2 ×1
SL3 ×1
SE16 ×1
SC5 ×1
SP7 ×1
SC1 ×1
Additional Items
Normal Saline Connector ×2
Instruction Manual ×1
Packaging List ×1
Qualified Certificate ×1
LED Lamp ×1
Silicone Hose Clamp ×16
Motor Disinfection Plug ×2

Warranty

I-Period validity:
Free repair for the main unit: 2 Year / Handpieces: 1 Year / Foot Pedal: 1 Year / Consumables: No Warranty

II-Range of warranty:
Within the warranty period of validity, we are responsible for any troubles caused by quality problems or the product's technique and structure.

III-The following are beyond our warranty:
1. The damage caused by disobeying the operation instruction or lack of the needed condition.
2. The damage caused by unsuitable operation or disassembly without authorization.
3. The damage caused by unadvisable transportation or preservation.
4. There is no seal of the distributor, or the warranty card is not filled out completely.

Description Video Links PDF Downloads FAQ

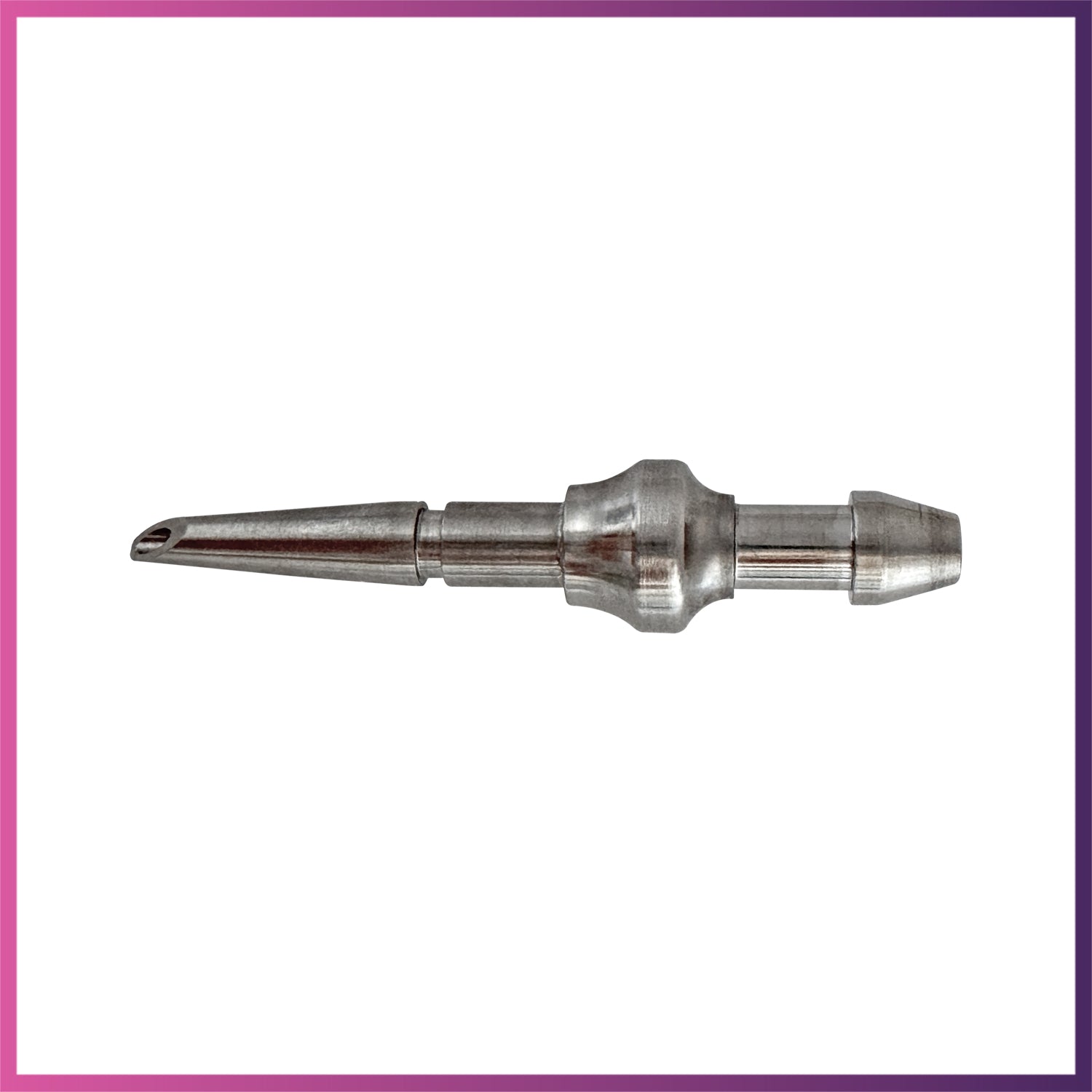

The Normal Saline Connector is a replacement fluid-line component for the Surgic Star system. It connects the irrigation tubing to a saline bag or other approved treatment-fluid container, helping provide a secure and continuous supply of irrigation fluid during treatment.

Reprocessing and sterilization
The set should be replaced after no more than eight sterilization cycles.

Inspection and replacement
Inspect the joint and tubing connection before each procedure. Replace the joint if any of the following signs are present:

Cracks, splits or visible surface damage
Discoloration or cloudiness
Hardening, brittleness or deformation
A loose connection to the saline bag or tubing
Leakage during irrigation
Blockage or restricted fluid flow
Damaged connection points
Contamination that cannot be completely removed

Confirm that the tubing is fully seated on both sides of the joint before operating the irrigation system. Do not use the component if the connection is loose or if any leakage is detected.
