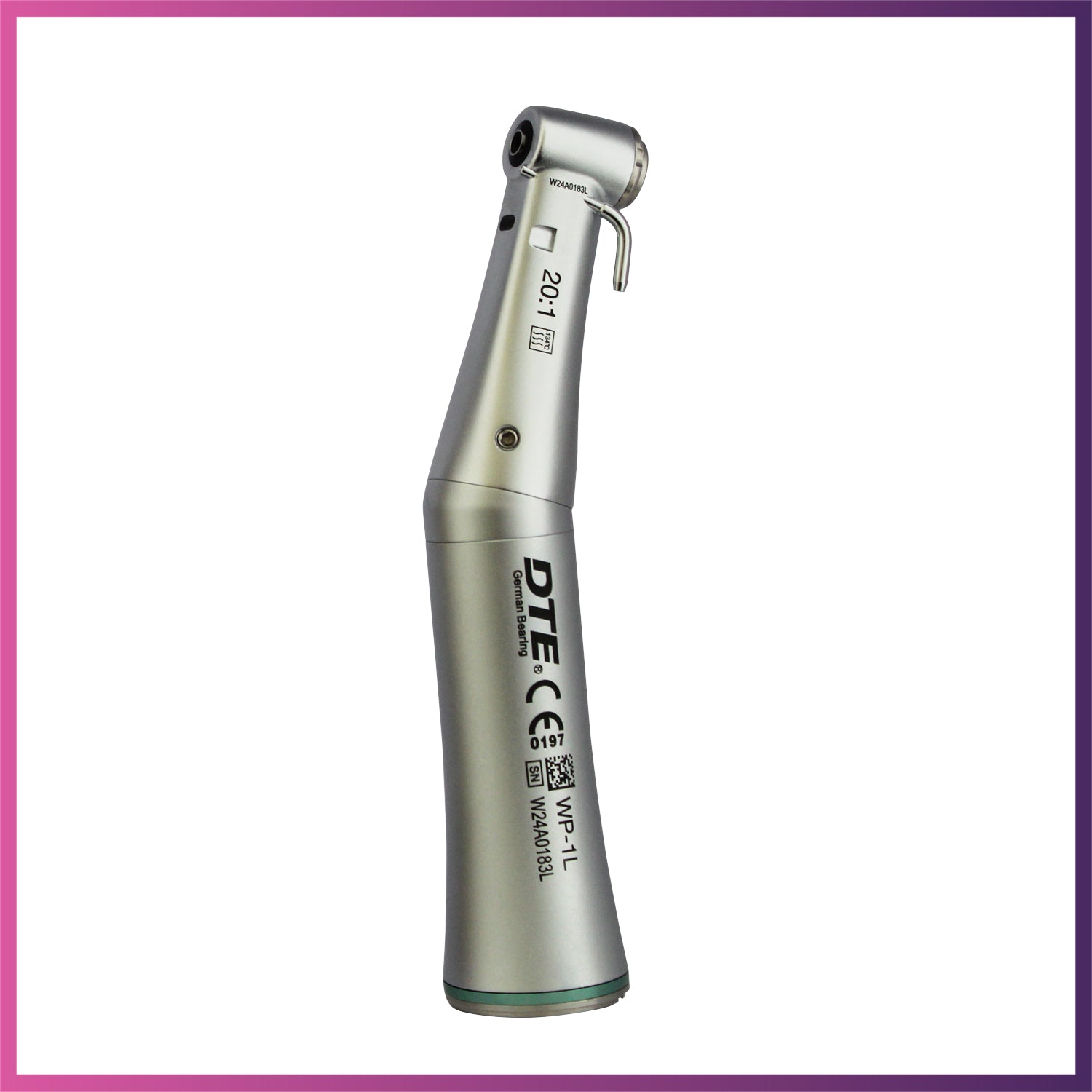

Woodpecker / DTE Implant Motors Handpiece WP-1L

Implant Air Catalogue

Implant Air User Manual

1. What is the WP-1L contra-angle handpiece used for? The WP-1L is designed for drilling, tapping, and implanting during dental implant surgery.
2. What is the rotation speed range of the WP-1L? The handpiece operates at speeds from 15 to 2000 rpm.
3. Does the WP-1L have a built-in light? Yes, the WP-1L model features an LED light for enhanced visibility during procedures.
4. What types and sizes of drills or burrs are compatible with the WP-1L? The WP-1L is compatible with 2.35 mm surgical needles or drills (ISO1791-1) and burrs with a minimum length of 22.5 mm.
5. What is the reduction gear ratio of the WP-1L? The handpiece features a 20:1 reduction gear ratio for precise control.
6. How should the WP-1L be sterilized? The WP-1L should be sterilized using only steam sterilization (fractional pre-vacuum) at a maximum temperature of 138°C, and it can withstand up to 600 sterilization cycles.
7. What are the recommended operating conditions for the WP-1L? The handpiece should be used in environments with temperatures from +5°C to +40°C, relative humidity between 30% and 75%, and atmospheric pressure from 70 to 106 kPa.
8. Is the WP-1L compatible with all implant motors? The WP-1L is adaptable to all types of implanting devices that use the ISO3964 standard motor connection.
9. What maintenance does the WP-1L require? Regular cleaning, lubrication, inspection, and timely replacement if worn or damaged are necessary to maintain optimal performance.
10. Are there any safety precautions or contraindications for using the WP-1L? The WP-1L should not be used on patients with hemophilia, pacemakers, certain oral diseases, or severe systemic conditions, and operators should always check for noise, vibration, or overheating before use and wear protective gear during operation.
