Woodpecker / DTE Curing Light / U-Light

• The U-Light Curing Light is a rechargeable LED dental curing device for rapidly curing dental restorative materials in professional clinical settings.

  Key features

  • Three curing modes: P2 Normal, P1 High, and P0 Turbo
  • Collimated light beam helps reduce light loss
  • Constant-output design maintains curing performance as battery power decreases
  • Broad LED wavelength range supports commonly used dental resin materials
  • 360° rotating light head for flexible positioning
  • Magnetic point-cure lens for precise pre-curing of small composites, veneers, and ceramic crowns

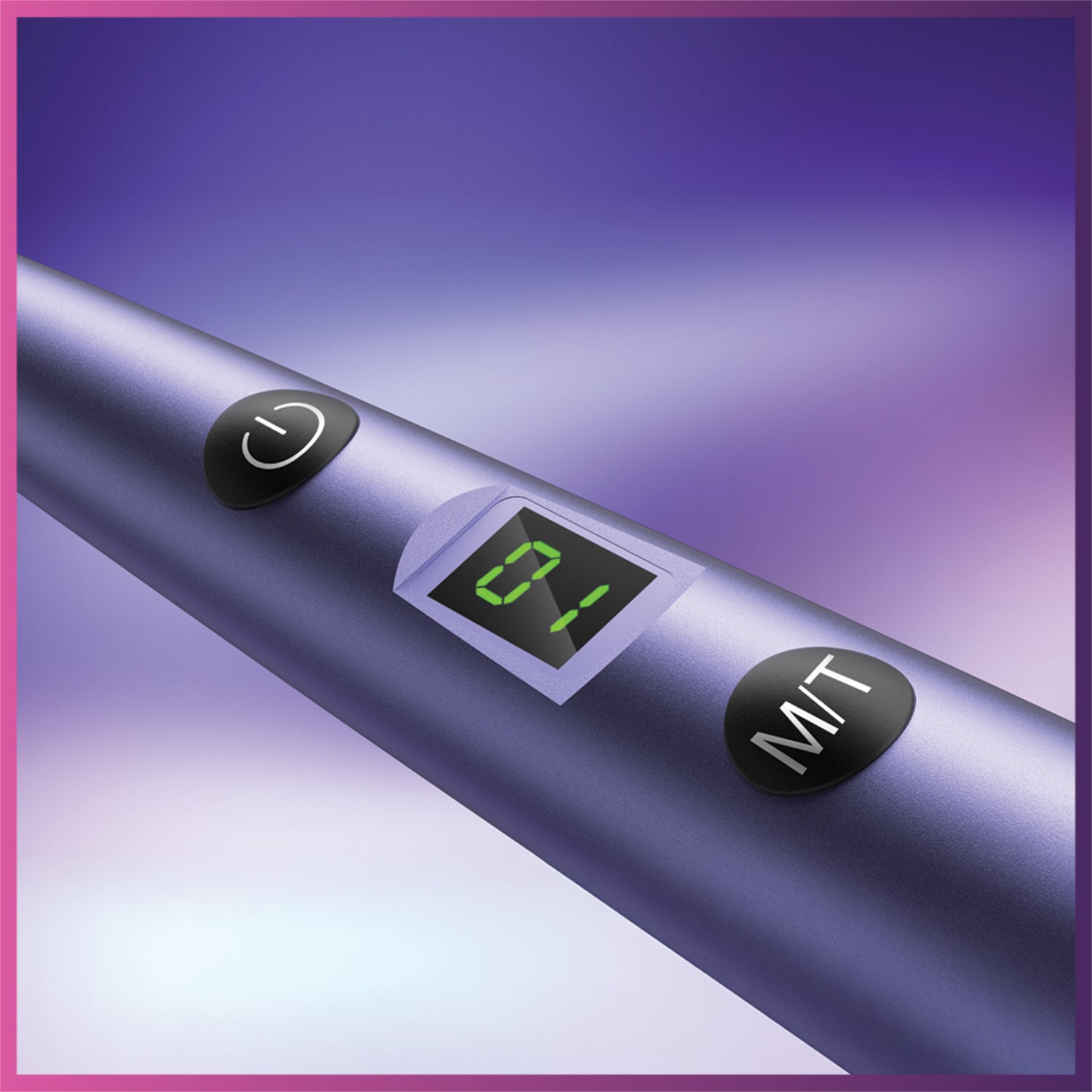

  • Digital timer with selectable curing times by mode
  • Rechargeable battery with overvoltage, overcurrent, and short-circuit protection
  • Automatic sleep shutdown after 2 minutes of inactivity
  • Overheat protection supports up to 400 seconds of cumulative continuous operation before a 60-second cooling period
  • Disposable sleeves help prevent cross-infection

  Specifications

  • Dimensions: 23 × 23 × 244 mm
  • Weight: 126 g
  • Light source: LED
  • Wavelength range: 380–515 nm
  • Typical peak wavelengths: 460 ± 15 nm and 400 ± 15 nm
  • Maximum light intensity: 3000 mW/cm²
  • Irradiance by mode:
    • P2 Normal: 1000–1200 mW/cm²
    • P1 High: 1800–2000 mW/cm²
    • P0 Turbo: 2700–3000 mW/cm²
  • Curing-time settings:
    • P2: 5, 10, 15, or 20 seconds
    • P1: 3 or 5 seconds
    • P0: 1 or 3 seconds
  • Lens diameter: 10 mm
  • Irradiation area: 78.5 mm²
  • Battery: 18650 lithium battery, 3.7 V, 2200 mAh
  • Power adapter input: 100–240 V, 50/60 Hz, 0.4–0.2 A
  • Power adapter output: 5 V, 1 A
  • Operating temperature: +5°C to +40°C
  • Operating humidity: 30%–75% RH
  • Ingress protection: IPX0; not waterproof
  • Operation type: Non-continuous, 20 seconds on / 1 second pause
