Woodpecker / DTE D5-LED Ultrasonic Scaler

SKU: ULT-SCA-D5

Woodpecker (DTE)

Price
$499
Taxes and shipping calculated at checkout
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Specifications

Power supply input: 110 ~ 50Hz/60Hz 280mA

Main unit weight: 0.65kg

Main unit input: ~24V50HZ  1.3A

Transformer weight: 1. 0kg

Output power:38VA

Frequency:  28KHZ ± 3KHz

Dimensions:  188mm ×159mm × 81mm

Packing List

01.Main unit x1
02.Detachable handpiece x1
03.Power supply x1
04.Foot switch x1
05.Scaling tip GD1T x1
06.Scaling tip GD2T x1
07.Scaling tip GD4T x1
08.Scaling tip PD1T x1
09.Endo chuck ED1T x1
10.Torque wrench x1

11.Endo wrench x1
12.Water pipe x1
13.LED lamp x1
14.Instruction of LED lamp replacement x1
15.Instruction manual x1
16.Qualified certification x1
17.Packing list x1
18.O-ring pack x1

Warranty

Period validity:

Main Unit: 2 Year / Handpiece: 2 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Range of warranty:

Within the warranty period of validity, we are responsible for any troubles caused by quality problems or products technique and structure.

The following are beyond our warranty:

  1. The damage caused by disobeying the operation instruction or lack of the needed conditions.
  2. The damage caused by unsuitable operation or disassembly without authorization.
  3. The damage on product that caused by users’ unexpected drop or impact to product.
  4. The damage caused by unadvisable transportation or preservation.
  5. There isn’t the seal of distributor, or the warranty card isn’t filled in completed.

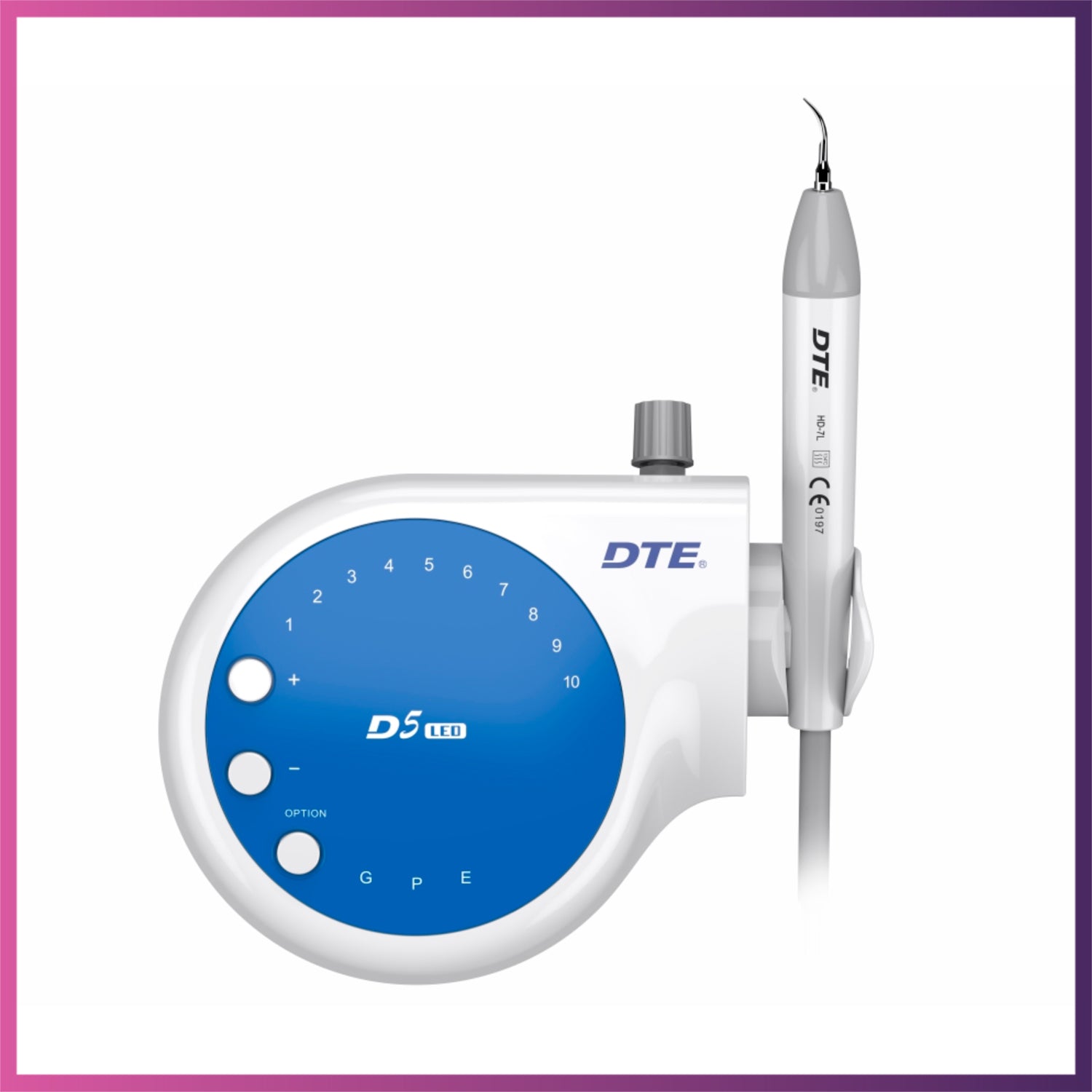

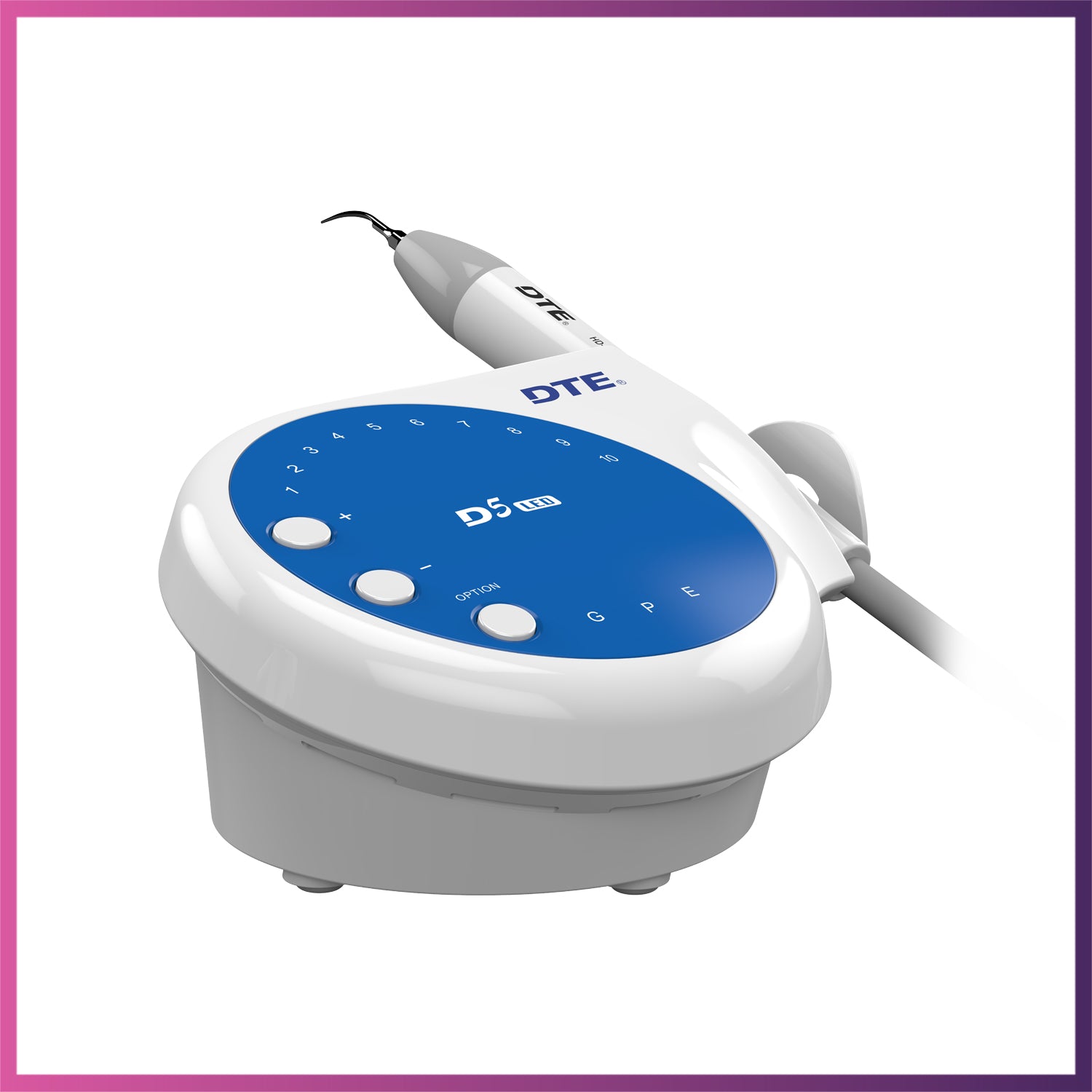

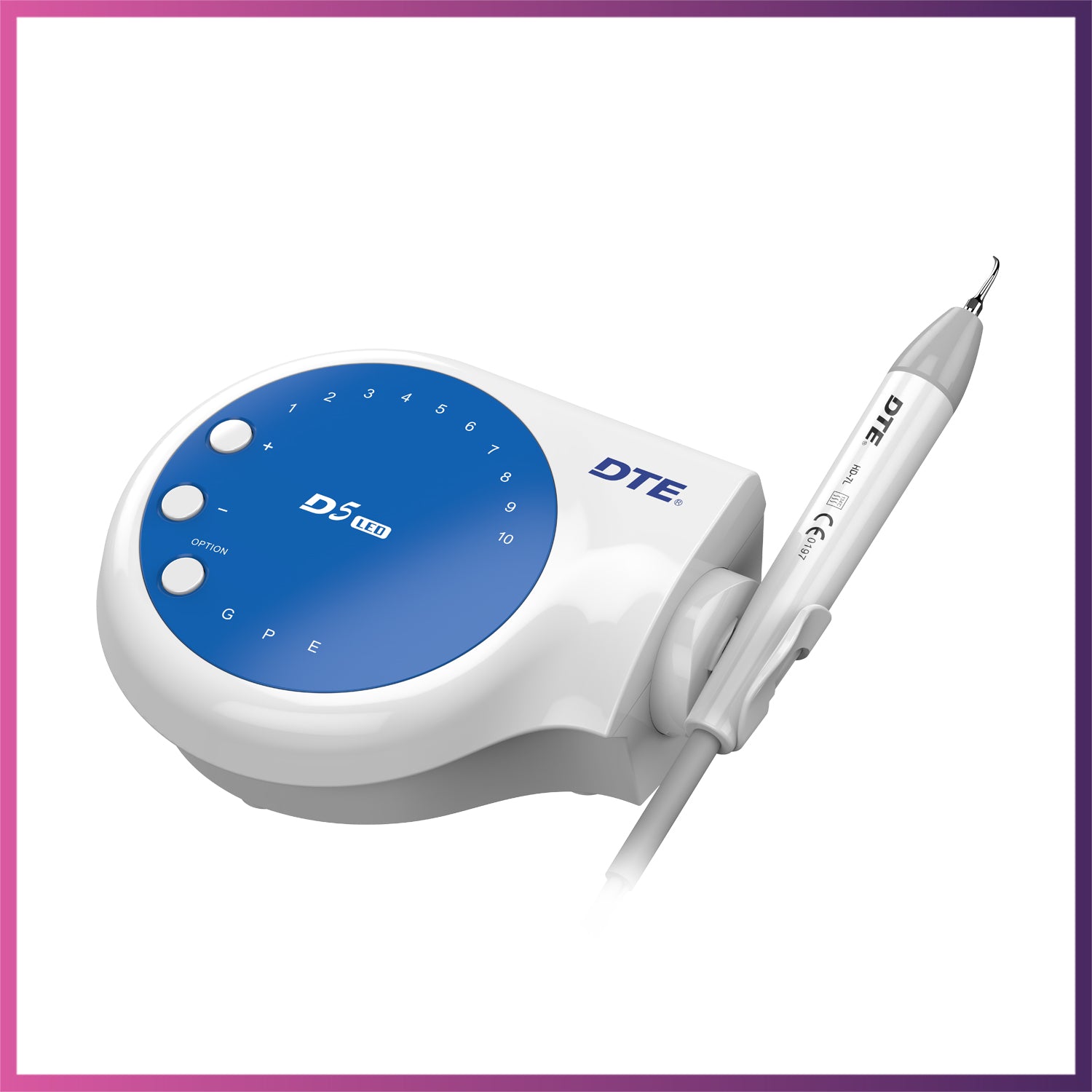

DTE D5-LED Ultrasonic Scaler

The DTE D5-LED Ultrasonic Scaler is a reliable and multifunctional device designed for precision, comfort, and efficiency in daily dental practice. Equipped with both scaling and endodontic functions.

Key Features

  • Multi-Functionality: Supports supragingival scaling, subgingival scaling, and endodontic treatments in one compact device.

  • LED Handpiece

  • Automatic Frequency Tracking

  • Antiseptic Waterline Design: Integrated antiseptic inner water pipe prevents contamination and ensures clean water delivery.

  • Water Volume Control

  • Torque and Endo Wrenches Included

  • Effective Plaque and Calculus Removal

Sterilization & Safety

  • Handpiece, scaling tips, torque wrench, and endo wrench are autoclavable for up to 600 cycles (handpiece), 300 cycles (tips), and 1000 cycles (wrenches).

  • LED light pipe and accessories withstand sterilization at 134°C / 0.22 MPa.

Installation Disclaimer

SoniDent is not responsible for product installation. Most devices are easy to install with common parts included, but some setups may require specific connectors or technical assistance depending on dental chair variations. While we don’t provide installation services, we’re here to answer your questions and share our knowledge to help you through the process.



Here are some videos for your viewing. Enjoy!

Frequently bought together

Woodpecker / DTE D5-LED Ultrasonic Scaler
Woodpecker / DTE D5-LED Ultrasonic Scaler
This item: Woodpecker / DTE D5-LED Ultrasonic Scaler
Price
$499
TD-1L Torque Wrench for DTE Ultrasonic Scaler Devices
TD-1L Torque Wrench for DTE Ultrasonic Scaler Devices
TD-1L Torque Wrench for DTE Ultrasonic Scaler Devices
Price
$15
TD-E1 Endo Wrench for DTE Ultrasonic Scaler Devices
TD-E1 Endo Wrench for DTE Ultrasonic Scaler Devices
TD-E1 Endo Wrench for DTE Ultrasonic Scaler Devices
Price
$20
DTE HD-7L Extra Handpiece for Ultrasonic Scaler D3 / D6 -LED
DTE  HD-7L Extra Handpiece for Ultrasonic Scaler D3 / D6 -LED
DTE HD-7L Extra Handpiece for Ultrasonic Scaler D3 / D6 -LED
Price
$185
DTE Ultrasonic Scaler Hygiene Kit 1
DTE Ultrasonic Scaler Hygiene Kit 1
DTE Ultrasonic Scaler Hygiene Kit 1
Price
$110
Replacement Power Supply for DTE Ultrasonic Scaler D3 / D5 / D6 / S6 / D7 LED
Replacement Power Supply for DTE Ultrasonic Scaler D3 / D5 / D6 / S6 / D7 LED
Replacement Power Supply for DTE Ultrasonic Scaler D3 / D5 / D6 / S6 / D7 LED
Price
$70
Woodpecker Dental Quick Connector For Water Hose
A dental quick connector for water hose, featuring a metallic silver body with a connector nozzle and shut-off valve.
Woodpecker Dental Quick Connector For Water Hose
Price
$15
Total price: $914.00

Compare with similar items

Woodpecker / DTE D5-LED Ultrasonic Scaler
This item Woodpecker / DTE D5-LED Ultrasonic Scaler
DTE D600-LED Ultrasonic Scaler
DTE D600-LED Ultrasonic Scaler
DTE S6-LED Ultrasonic Scaler
DTE S6-LED Ultrasonic Scaler
DTE D3-LED Ultrasonic Scaler
DTE D3-LED Ultrasonic Scaler
Weight
0.73 kg
1.8 kg
0.65 kg
0.66 kg
Dimensions
193.5x133x75.8mm
241x193x97mm
197×174×74mm
198x134x80mm
Endodontic Applications
Yes
Yes
Yes
No (focused on scaling and plaque removal
LED Handpiece
Yes (Detachable)
Yes (Detachable)
Yes (Detachable)
Yes (Detachable)
Output Tip Vibration Frequency
28kHz±3kHz
28kHz±3kHz
28kHz±3kHz
28kHz±3kHz
External Water Supply System
Yes
Yes
Yes
Yes
Water Tank
Yes
Yes (with solution support)
No
No
Touch Screen
No
Yes
Yes
No
Piezo Technology
Piezo-Ceramic Assembly
Sine-Wave Drive
Sine-Wave Drive
Piezo-Ceramic Assembly
Tip Compatibility
70+DTE, Satelec, NSK tips
70+DTE, Satelec, NSK tips
70+DTE, Satelec, NSK tips
70+DTE, Satelec, NSK tips
Price
$499.00
$959.00
$495.00
