Replacement Pump Tubing for Woodpecker Surgic Star

Click to open expanded view

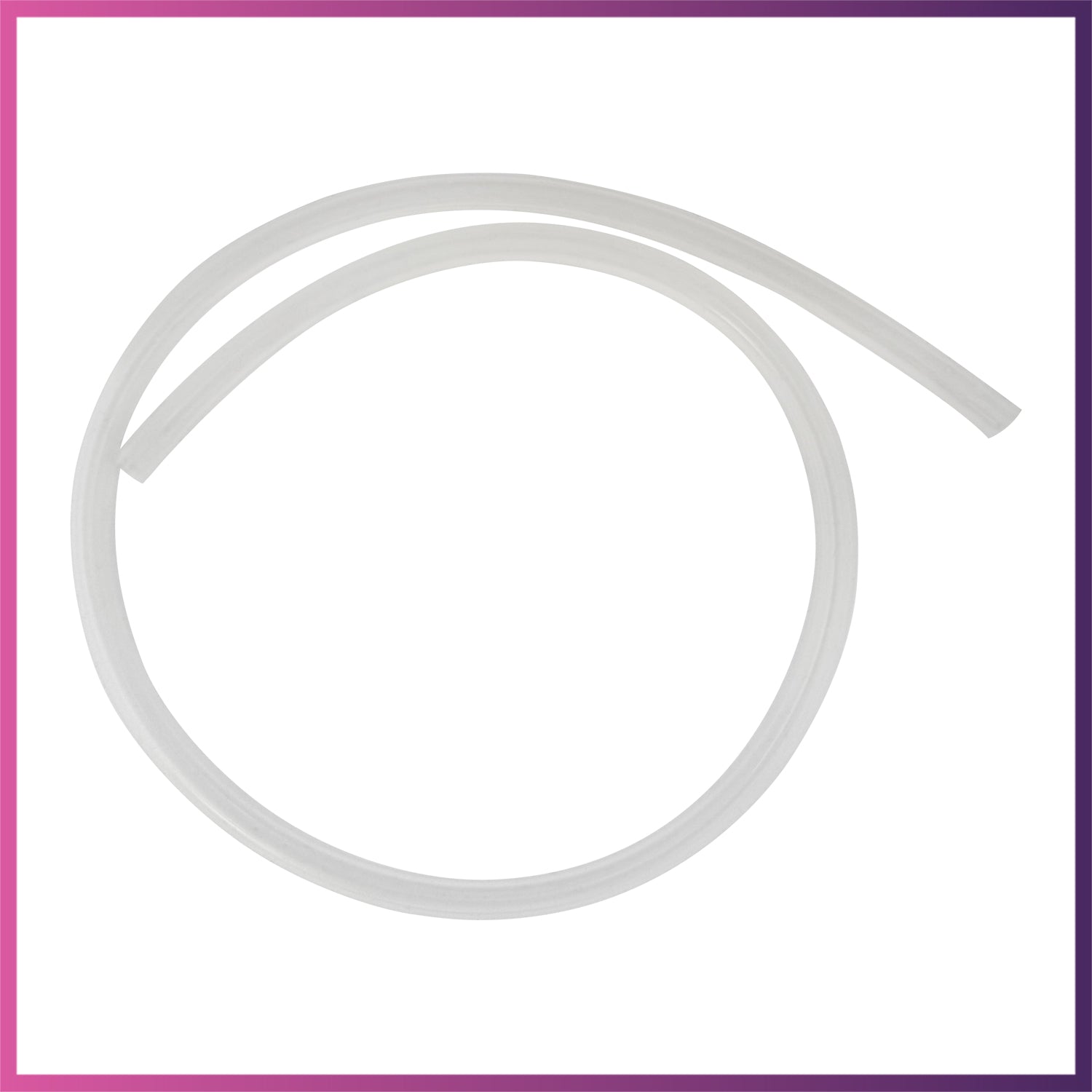

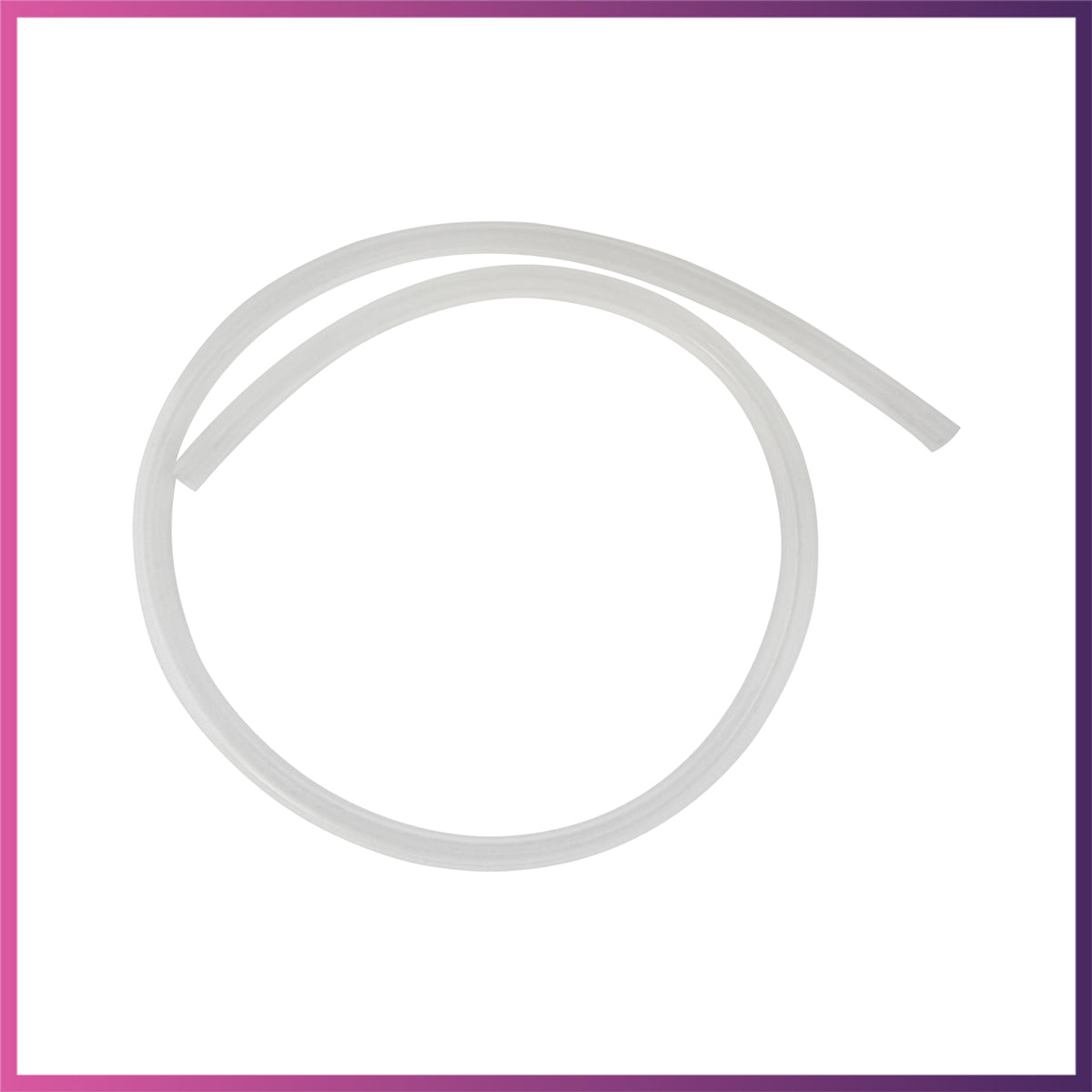

Replacement Pump Tubing for Woodpecker Surgic Star

Name: Replacement Pump Tubing for Woodpecker Surgic Star
Brand: Woodpecker
SKU: PUP-TUB-STR
Price: 10.5 CAD
Availability: InStock

SKU: PUP-TUB-STR

Woodpecker

Price

$10.50

Taxes and shipping calculated at checkout

Specifications

Specifications

Main Unit Model: Surgic Star SE / Surgic Star
Power Input: 100V–240V ~ 50Hz/60Hz
Input Power: 180VA
Main Unit Dimensions: 267 × 284 × 136 mm

Ultrasonic System

Ultrasonic Handpiece: HB-2 LED
Working Frequency: 24kHz–36kHz
Water Flow Rate: 30–120 mL/min

Motor System

Motor Handpiece: SPM60L
No-Load Speed: 300–42,000 rpm
Cooling Air Flow: Maximum 40L/min

Foot Control

Foot Control: MF6 / PF-3 Plus (either)

Contra-Angle Gear Ratios & Output Speeds

1:1 — 1,000–42,000 rpm
1:3 — 3,000–126,000 rpm
1:4.2 — 4,200–176,400 rpm
1:5 — 5,000–210,000 rpm
16:1 — 20–2,625 rpm
20:1 — 15–2,100 rpm
27:1 — 10–1,537 rpm

Safety & Protection

Fuses: 2 × T1.6AL 250V
Ingress Protection: IPX1 (device), IPX6 (foot control)

Software & Operation

Software Version: V1
Operation Mode: Intermittent operation (60s ON / 10s OFF)

Packing List

Packaging List
Main Unit ×1
Power Cord ×1
Hook ×1
Foot Switch ×1
Motor Handpiece ×1
Ultrasonic Handpiece ×2
Tip Holder ×2
Pump Tubing ×7
Medical Silicone Rubber Flushing Pipe ×4
Connecting Joint of Pump Tubing ×2
Silicone Cap ×2
Contra-angle Handpiece ×1
Autoclave Box ×2
Torque Wrench ×2
Single Package Accessories
Tip Book ×1
Silicone Handle Holder ×2
Surgical Tips Included
SS18 ×1
SS2 ×1
SS3 ×1
SS6 ×1
SS5 ×1
SS11L ×1
SS11R ×1
SL1 ×1
SL2 ×1
SL3 ×1
SE16 ×1
SC5 ×1
SP7 ×1
SC1 ×1
Additional Items
Normal Saline Connector ×2
Instruction Manual ×1
Packaging List ×1
Qualified Certificate ×1
LED Lamp ×1
Silicone Hose Clamp ×16
Motor Disinfection Plug ×2

Warranty

I-Period validity:
Free repair for the main unit: 2 Year / Handpieces: 1 Year / Foot Pedal: 1 Year / Consumables: No Warranty

II-Range of warranty:
Within the warranty period of validity, we are responsible for any troubles caused by quality problems or the product's technique and structure.

III-The following are beyond our warranty:
1. The damage caused by disobeying the operation instruction or lack of the needed condition.
2. The damage caused by unsuitable operation or disassembly without authorization.
3. The damage caused by unadvisable transportation or preservation.
4. There is no seal of the distributor, or the warranty card is not filled out completely.

Share this product

Description Video Links PDF Downloads FAQ

Replacement Pump Tubing for the Woodpecker Surgic Star Surgical Unit. Designed for the peristaltic irrigation system to provide reliable irrigation during surgical procedures. Genuine replacement part for dependable performance.

Note: Sterilization cycles of less than 8 are strongly recommended.

Record the number of completed sterilization cycles. Replace the pump tube after the eighth cycle or earlier if it shows discoloration, cracking, deformation, blockage, leakage or loss of elasticity.
After reaching its cycle limit, dispose of the tube as clinical or hospital waste in accordance with local regulations.
