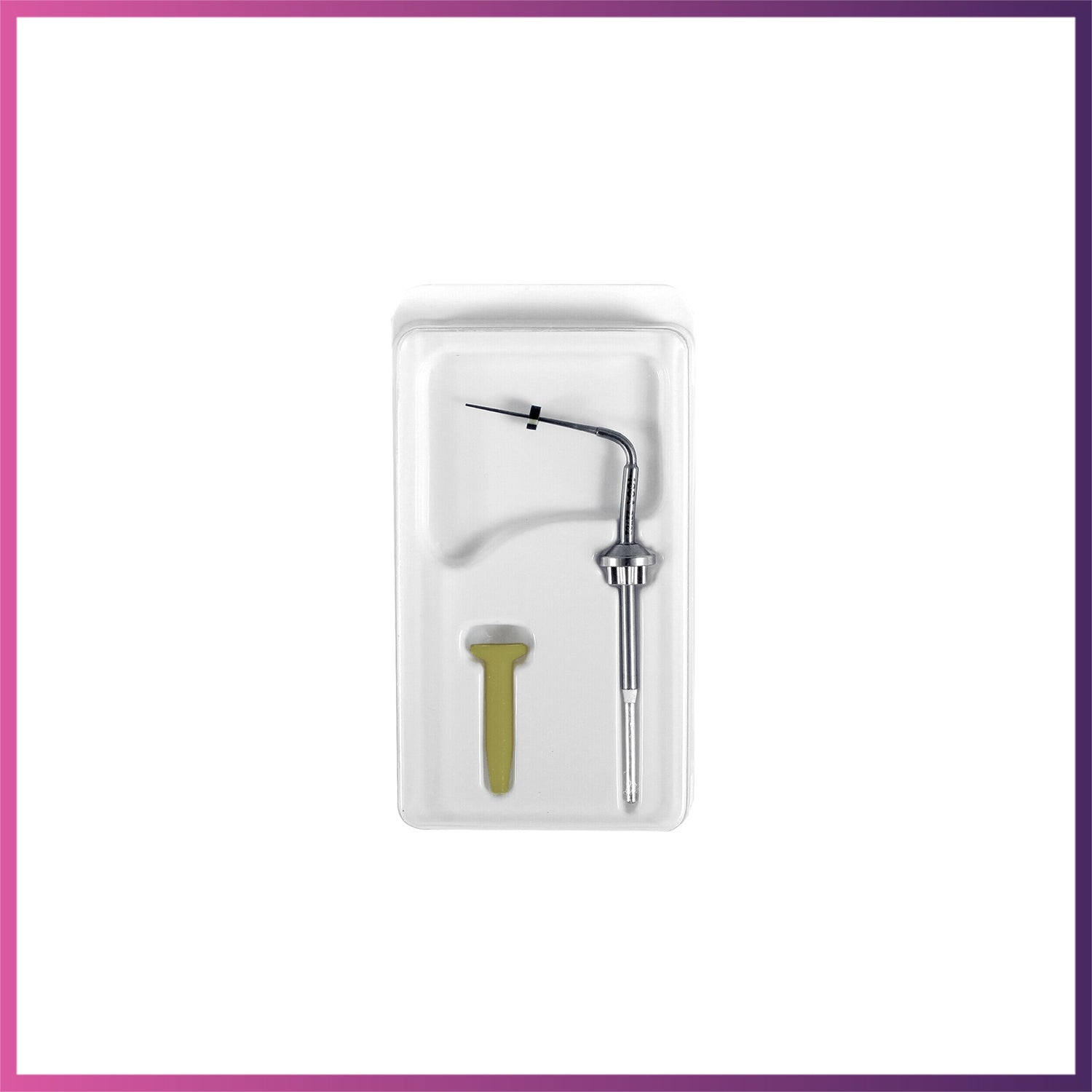

WP4004 for Fi-P (Tip Size 0.40mm Taper:0.04)

Intended Use:

The Work Tip is used to heat, cut, soften, and pressurize gutta-percha during endodontic procedures.

• Specifications: 0.40mm diameter, 0.04 taper.
• Applications: Ideal for narrow canals requiring precise gutta-percha placement.
• Features: Autoclavable for up to 100 cycles, durable design for consistent performance.

Installation and Use

1. Installation:

• Turn off the device before installing or removing the Work Tip.

• Align the Work Tip's hexagonal plug with the socket in the Heating and Packing Instrument.

• Install the Work Tip Protector to prevent scalding.

2. Operation:

• Select a suitable Work Tip based on clinical needs.

• Press the “ON/OFF” button to power on the device and select the desired preheating temperature.

• Use the Heating button to start heating and apply gentle, continuous pressure to soften and pressurize the gutta-percha.

• Avoid continuous heating for more than 4 seconds to prevent overheating and potential scalding.

3. Cleaning and Maintenance:

• After use, clean, disinfect, and sterilize the Work Tip.

• Do not polish or scratch the Work Tip. Replace if bent or worn to ensure even heating.
