Altaqi Piezo EndoSurgery Kit
Precision in Every Step of Apical Surgery
The Altaqi Piezo EndoSurgery Kit is a comprehensive set of 8 specialized Piezo tips designed to streamline and enhance endodontic microsurgery procedures, particularly apicoectomy. From osteotomy to retro preparation, this kit provides the essential tools for every critical step of treatment, enabling precise, minimally invasive outcomes.
Designed for Endodontic Microsurgery
This kit includes tips for:
-
Osteotomy
-
Window technique
-
Root resection and smoothening
-
Retrograde preparation (retro prep)
Compatible with major piezo surgery systems such as Woodpecker Surgic Smart / DTE AI Surgery, the kit is optimized for use under magnification and with continuous saline irrigation, ensuring maximum efficiency while minimizing heat generation.
What’s Included – 8 Premium Piezo Tips
For Bone and Root Cutting:
|
Tip Name |
Description |
Clinical Application |
Recommended Power (Surgic Smart) |
|

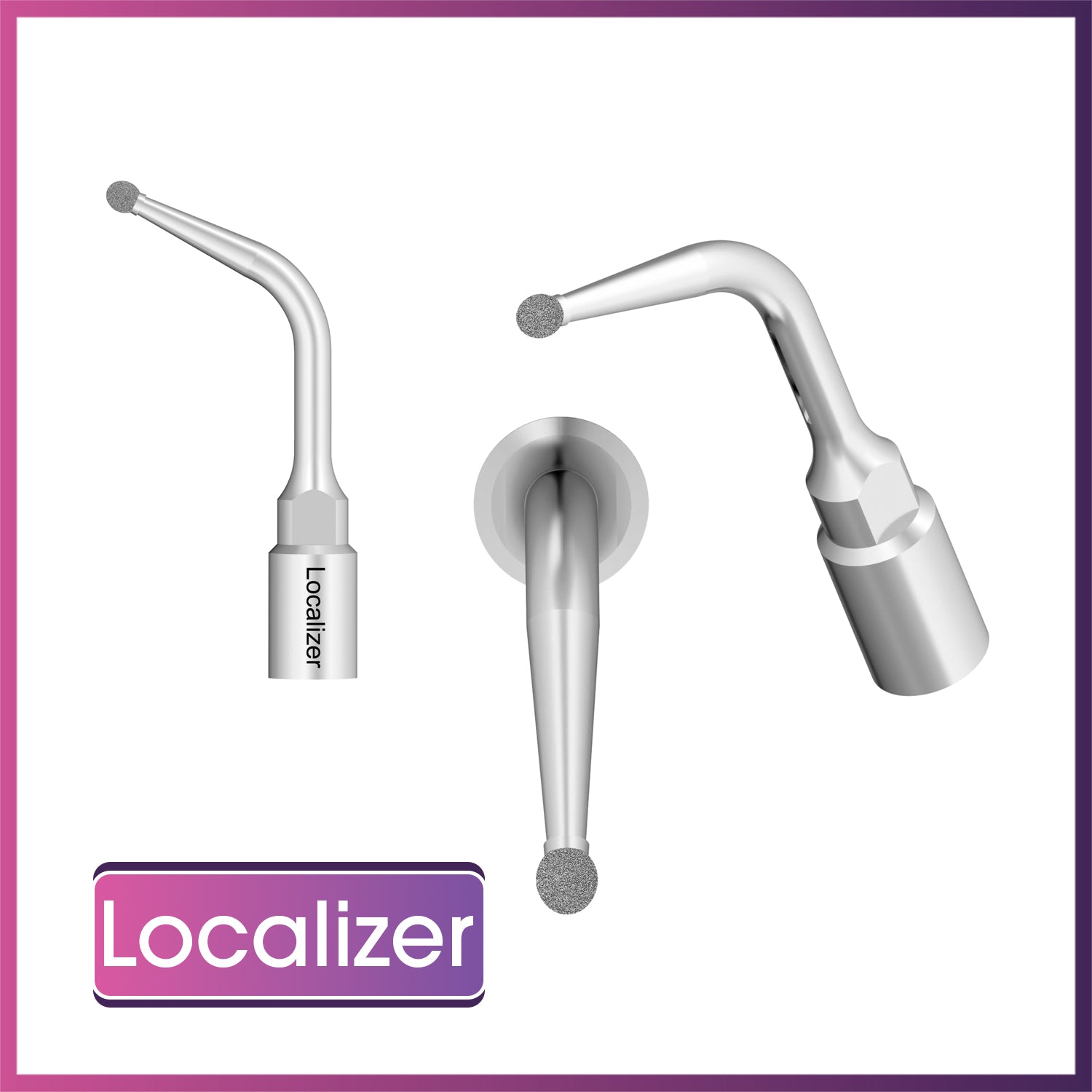

Localizer |
Ball shape, diamond-coated (100 µm), 1.8 mm width × 2 mm length |
For localizing root apex and osteotomy near delicate structures |
MODE: BONE, 8–10 |
|

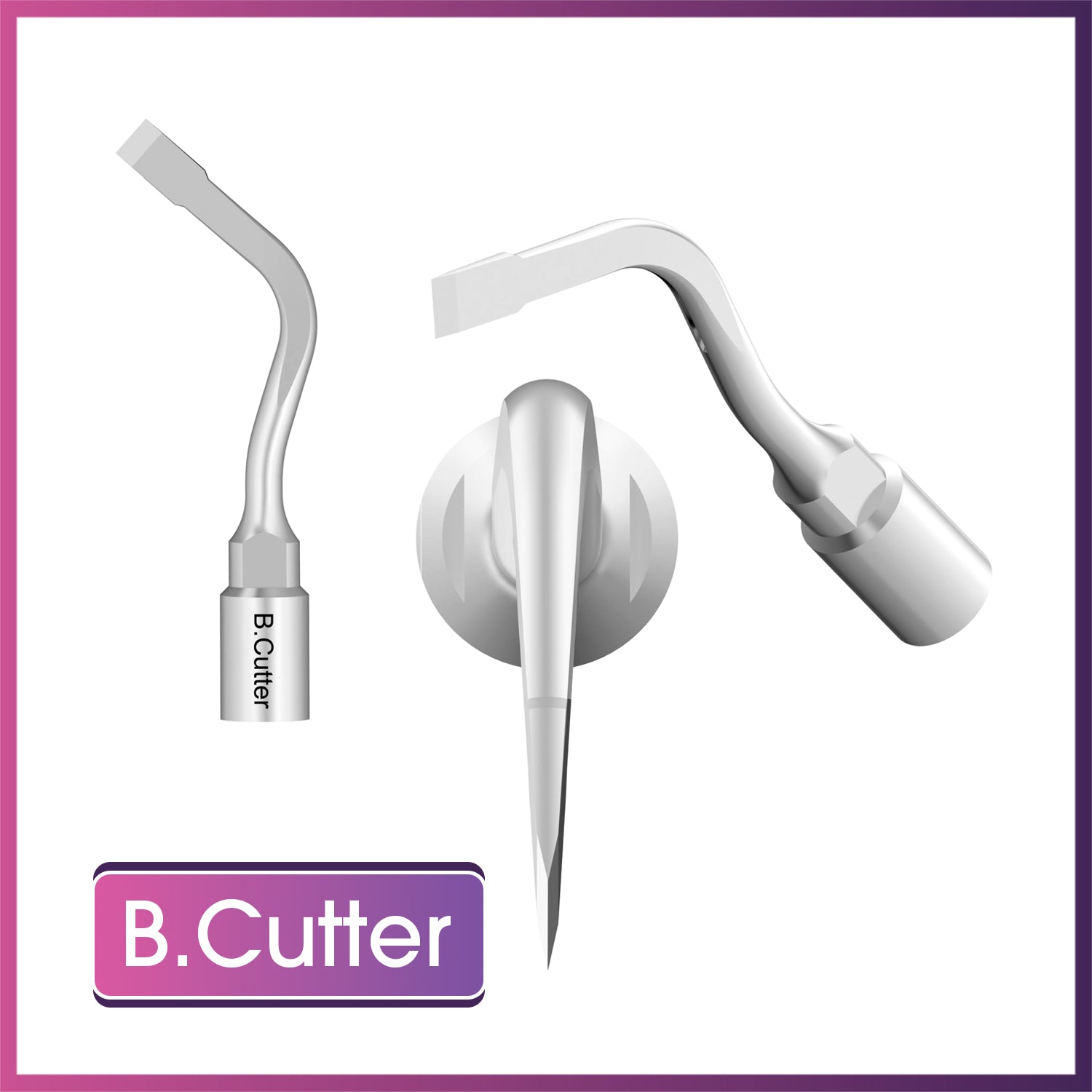

B. Cutter |
Straight bone cutter, 2.6 mm width × 0.4 mm thickness |
Window technique & bone removal around the root |
MODE: BONE, 8–10 |
|

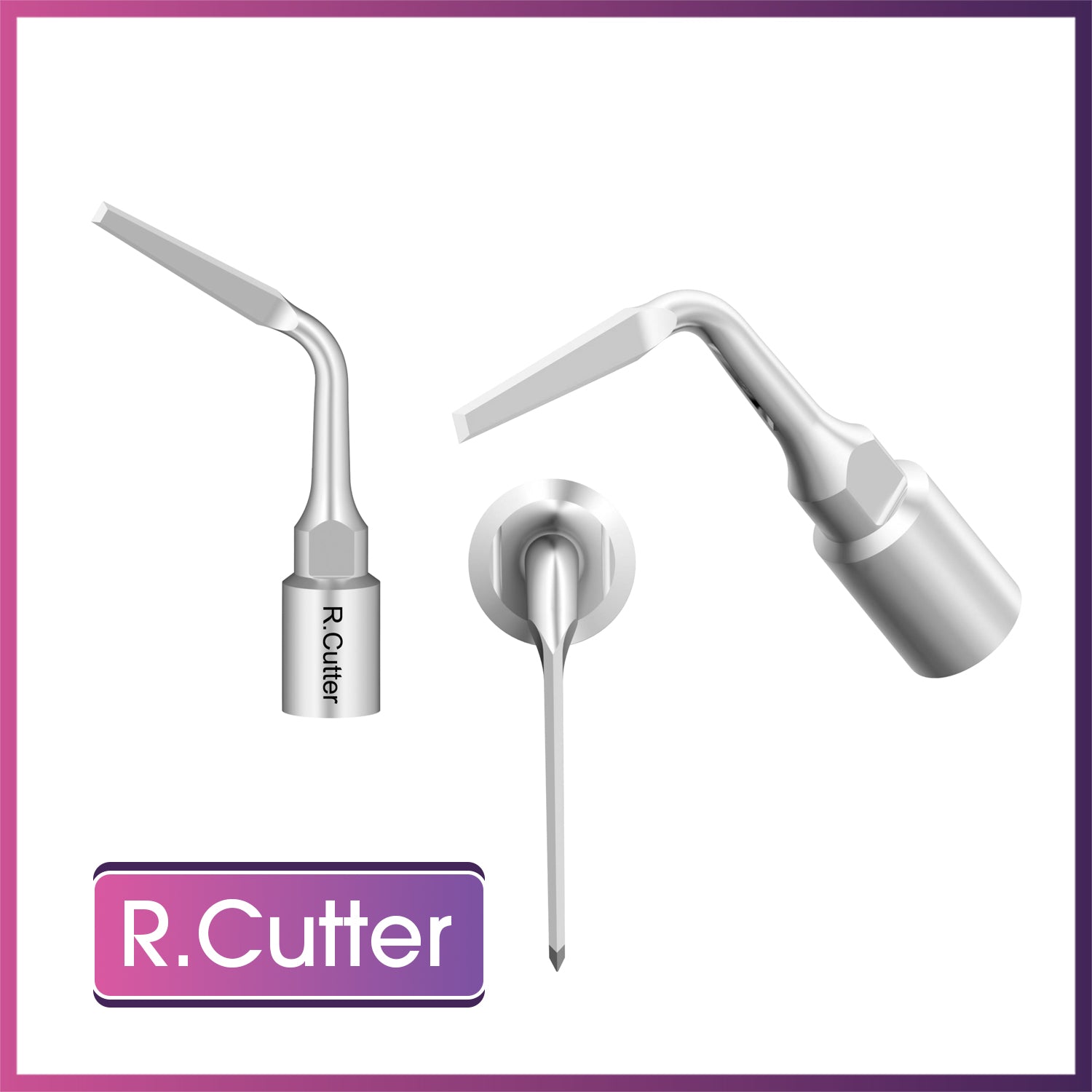

R. Cutter |
Straight root cutter, 10.5 mm length, 0.5 mm thick, 1.3 mm wide |
Root end resection and precise osteotomy |
MODE: BONE, 8–10 |
|

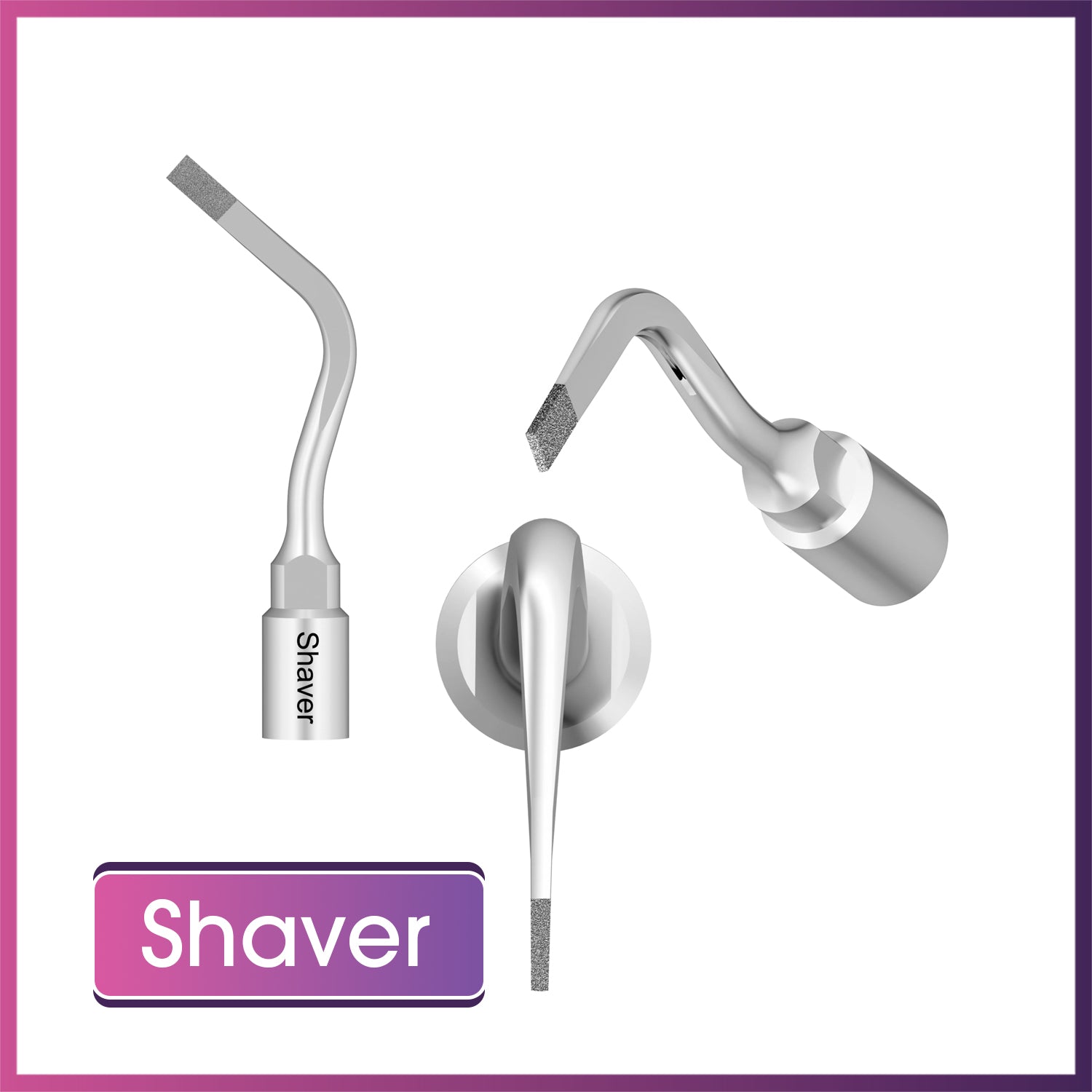

Shaver |
Diamond-coated (100 µm), 2 mm width × 4 mm length |
Smoothens resected root surface and socket post-osteotomy |
MODE: PERIO, 5–10 |
For Retrograde Preparation (Retro Prep):
|
Tip Name |
Description |
Clinical Application |
Recommended Power (Surgic Smart) |
|

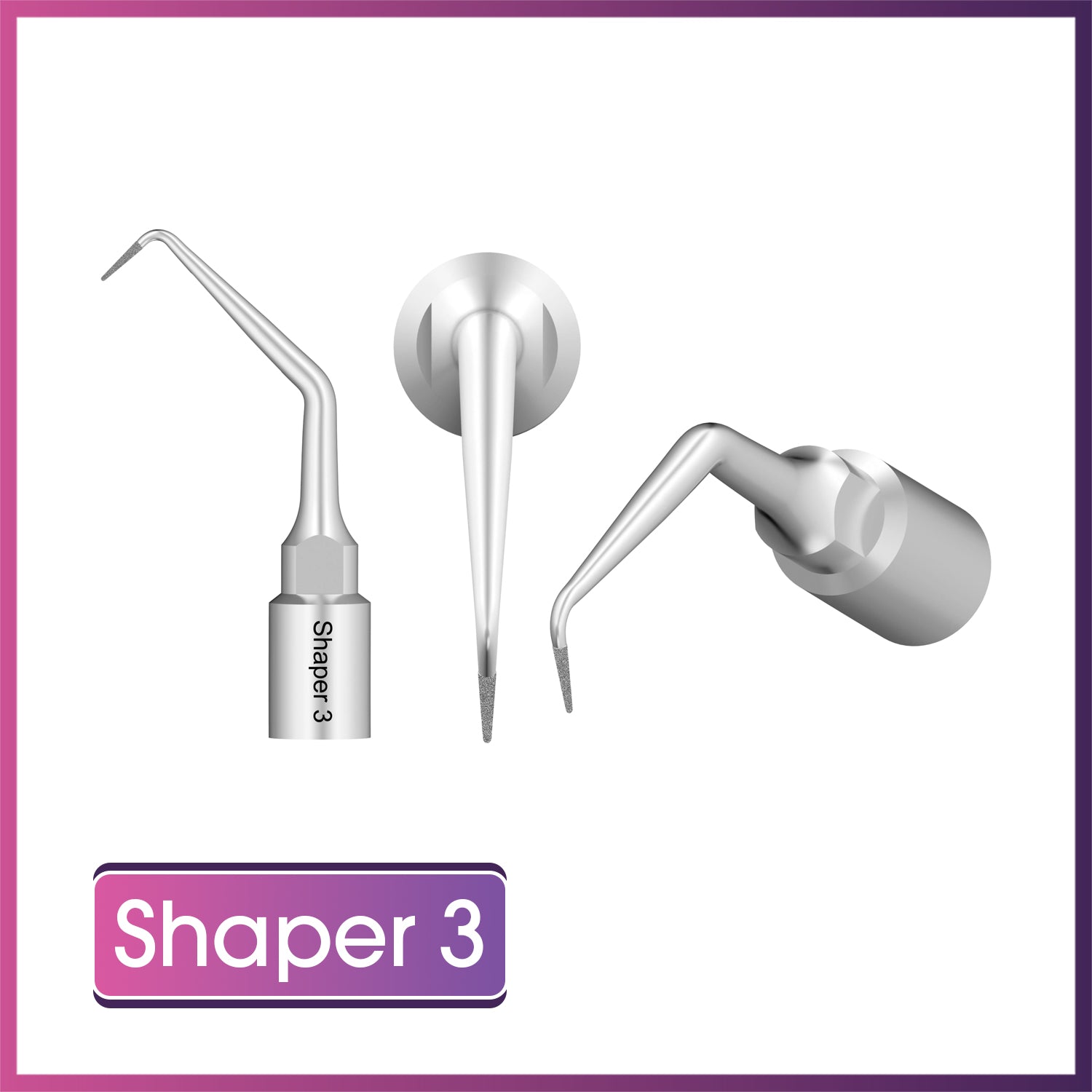

Shaper 3 |
Diamond-coated (40 µm), 3.0 mm tip length |
Retro prep after root resection |
MODE: PERIO, 1–7 |
|

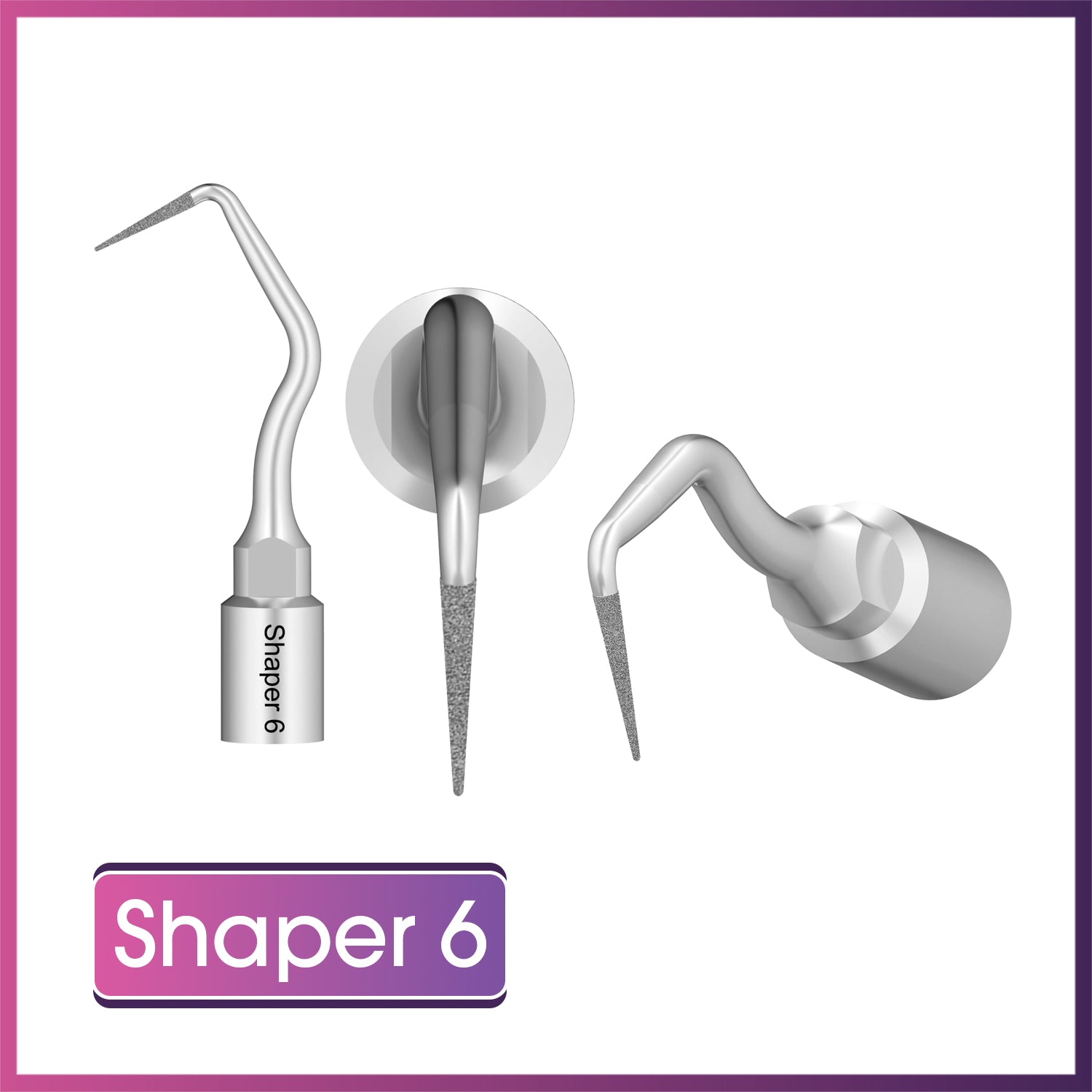

Shaper 6 |
Diamond-coated (40 µm), 6.0 mm tip length |
Deeper retro prep when needed |
MODE: PERIO, 1–7 |
|

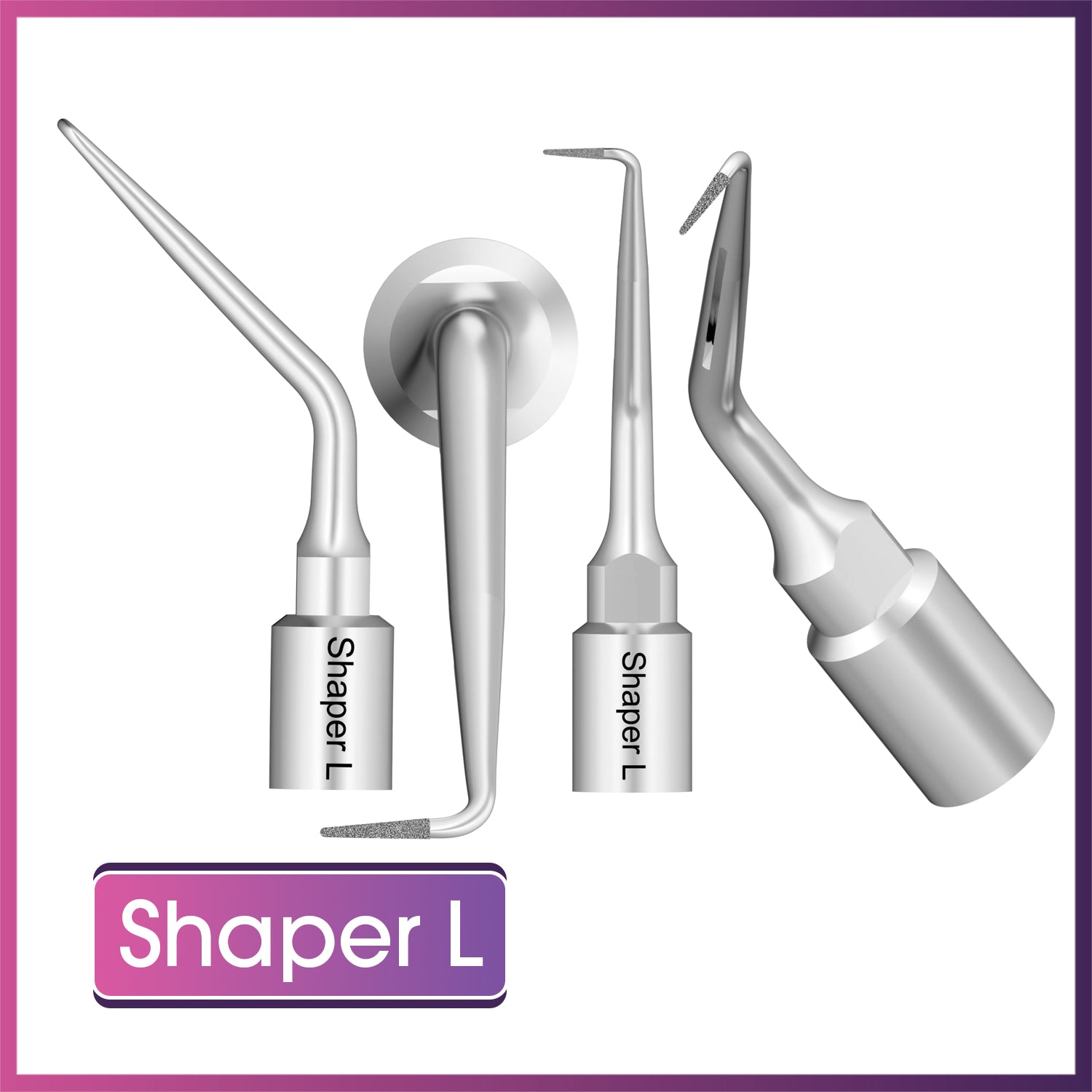

Shaper L |
Left-angled 90°, 3.0 mm tip |
Accessing posterior left molars for retro prep |
MODE: PERIO, 1–7 |
|

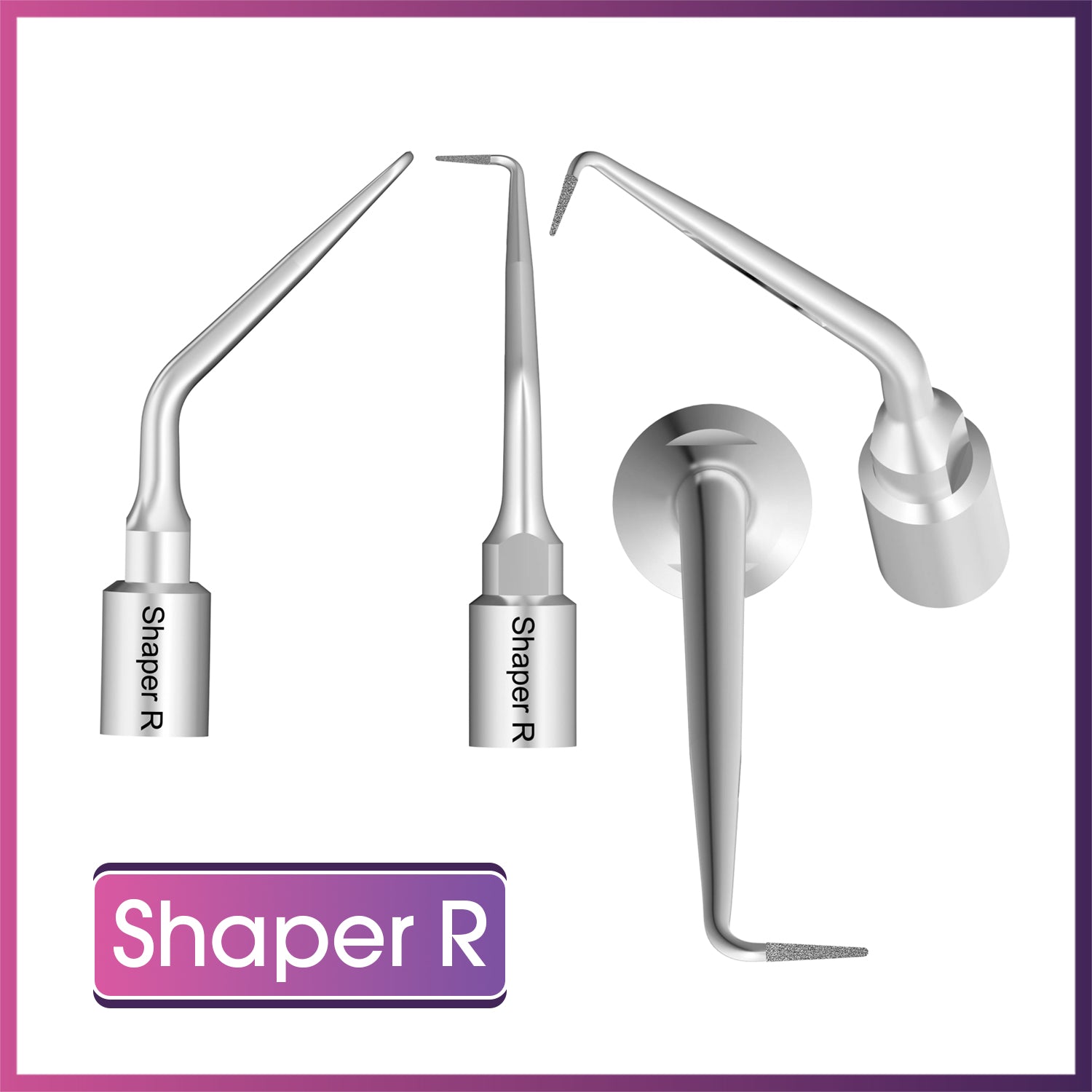

Shaper R |
Right-angled 90°, 3.0 mm tip |
Accessing posterior right molars for retro prep |
MODE: PERIO, 1–7 |
Clinical Highlights
-
Minimally invasive with high precision
-
Optimized geometry for access to difficult posterior areas
-
Diamond-coated tips for effective cutting, debridement, and smoothening
-
Safe around delicate structures like nerves or sinus
-
Compatible with Surgic Smart and most Piezo surgery units
Recommended Use
-
Always operate under magnification (microscope or loupes)
-
Ensure continuous irrigation to prevent overheating
-
Use in clinical mode settings as indicated for each tip
Kit Contents Summary
-
8 Tips Total:
• 4 for Bone & Root Cutting
• 4 for Retro Prep -
Sterile case for easy organization and transport
Note: This tip is designed for piezo surgery devices and is not compatible with ultrasonic scalers.
